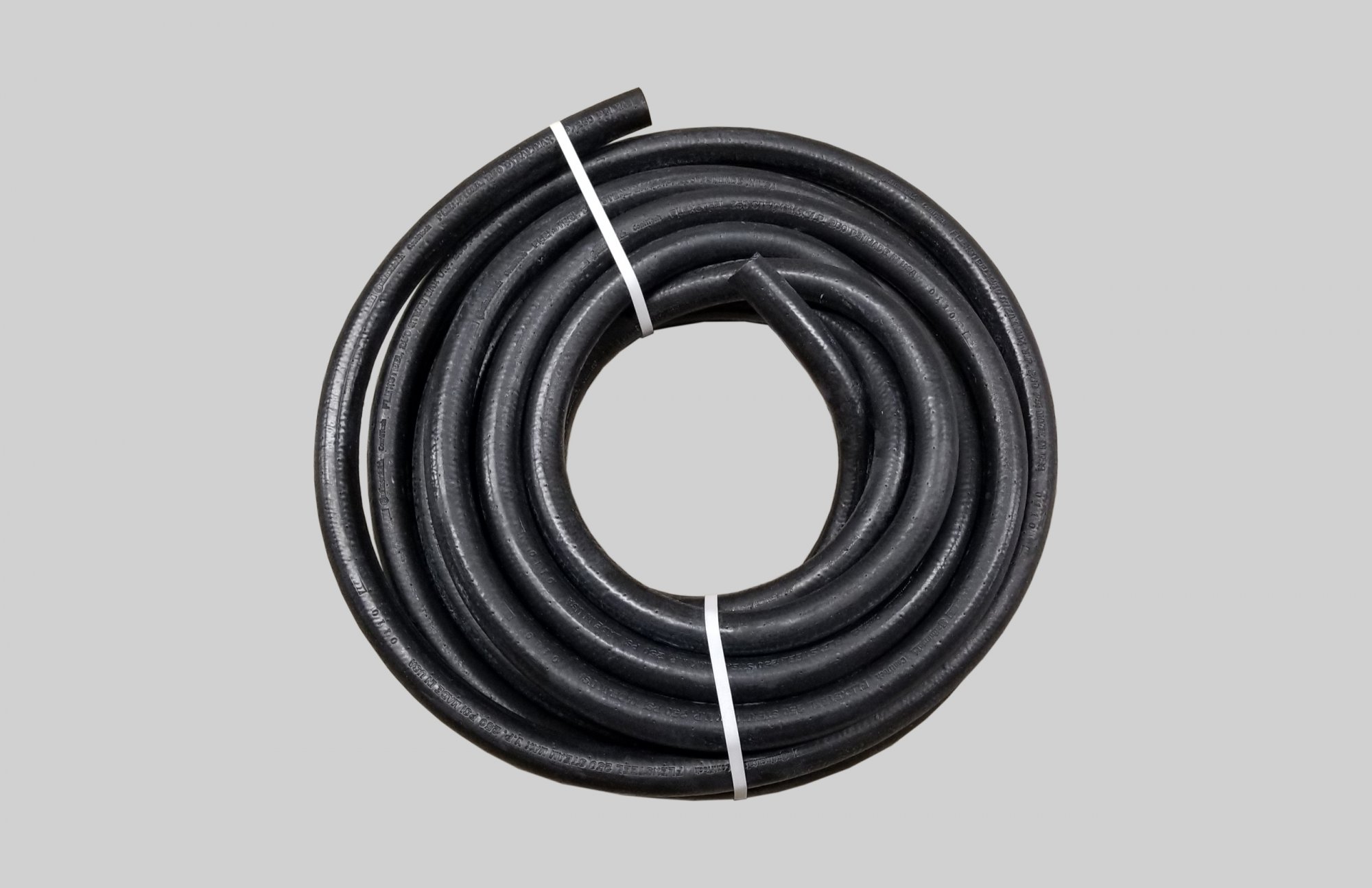

Continental Flex Steel 250 Steam Hose – Black

  • Construction Tube: Black EPDM
  • Cover: Wrapped black oil-resistant synthetic rubber, ARPM Class B (Medium Oil Resistance), pin-pricked
  • Reinforcement: Two-braid steel wire
  • Coupling: Refer to the ContiTech Industrial Hose Assembly Manual for crimp specifications.
  • Temperature Range: 0°F to 425°F (-18°C to 218°C)
  • Order Codes: 539-098
  • Packaging: Reels or 50′, 100′ cut lengths
Categories , Tags , , , , ,

Description

  • Construction Tube: Black EPDM
  • Cover: Wrapped black oil-resistant synthetic rubber, ARPM Class B (Medium Oil Resistance), pin-pricked
  • Reinforcement: Two-braid steel wire
  • Coupling: Refer to the ContiTech Industrial Hose Assembly Manual for crimp specifications.
  • Temperature Range: 0°F to 425°F (-18°C to 218°C)
  • Order Codes: 539-098
  • Packaging: Reels or 50′, 100′ cut lengths

Specifications

Part # Inner Diameter (In.) Outer Diameter (In.) Weight (lbs/ft) Working Pressure (PSI)
GFSB050 1/2" 1.10 0.47 250
GFSB075 3/4" 1.30 0.58 250
GFSB100 1" 1.67 0.87 250
Part # Inner Diameter (In.) Outer Diameter (In.) Weight (lbs/ft) Working Pressure (PSI) Hose Length
GFSB075-50 3/4" 1.30 0.58 250 50'
GFSB075-100 3/4" 1.30 0.58 250 100'
