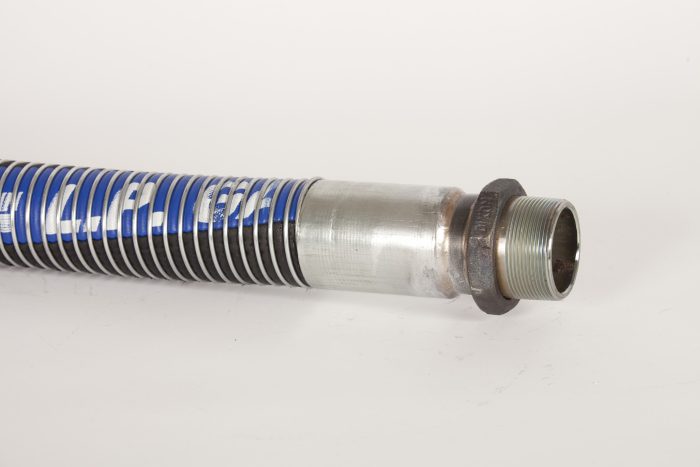

PERAFLEX CGA GAS HOSE – COMPOSITE

Call for price

Description

Applications:
• Specifically designed for the conveyance of liquid gases to low temperatures. With the ability to remain flexible at temperatures down to -94°F, this hose is ideally suited to handle propane, natural gas, methane, carbon dioxide, and others.

Tube:
• Polyester

Reinforcement:
• Polyester fabric with galvanized steel internal and external wires

Cover:
• Polyester fabric

Temp Range:
• -94°F to +212°F
**6-7% expansion under pressure

CGA/CSA Approval:
• Hoses are supplied with a certification label stating that it meets Canadian Gas Association and Canadian Standards Association standards.

End Fittings:
• Hoses are supplied with cadmium plated, schedule 80 carbon steel male nipples with wrench pad welded on. Each end is externally swaged onto the hose using a cadmium plated carbon steel ferrules.

Test Certificate:
• Hoses are supplied with a certificate and unique ID permanently attached to the hose.

Options:
• Ballistic Cover – for use in high abrasion environments
• Name Branding – branding for identification
• Stainless Steel Wires – to reduce corrosion

For more details and to see other hoses like this one, please check out PERAFLEX.COM

Specifications

Part # I.D. (in.) O.D. (in.) Working PSI Bend Radius (in.) Weight (lbs/ft) Standard Length
GH10  1 - 350 3 1.00 50
GH12  1 1/4 - 350 4 1.20 50
GH15  1 1/2 - 350 5 1.30 50
GH20  2 - 350 6 1.90 50

Additional information

Diameter

1-1/2", 1", 1-1/4", 2"
