Understanding Camlock Adapters: A Comprehensive Guide

Camlock adapters are essential components in various industrial and commercial applications, offering a quick and efficient way to connect and disconnect hoses and pipelines. Whether in agriculture, manufacturing, petroleum, or firefighting, these adapters help streamline operations by ensuring leak-proof connections. This guide will explore camlock adapters, their uses, types, and benefits.

What Are Camlock Adapters?

Camlock adapters, also known as cam and groove couplings, are specialized fittings designed for quick coupling and decoupling of hoses or pipes. They operate using a simple mechanism where the male adapter fits into the female coupler, and cam arms lock them securely in place. This design eliminates the need for tools and significantly reduces the time required for connection and disconnection.

Types of Camlock Adapters

Camlock adapters come in various types, each suited for specific applications. The main types include:

1. Type A – Male adapter with a female NPT (National Pipe Thread) thread.

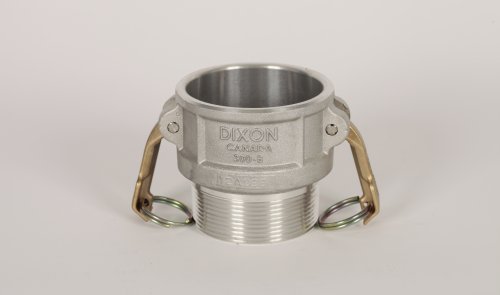

2. Type B – Female coupler with a male NPT thread.
3. Type C – Female coupler with a hose shank.
4. Type D – Female coupler with a female NPT thread.
5. Type E – Male adapter with a hose shank.
6. Type F – Male adapter with a male NPT thread.

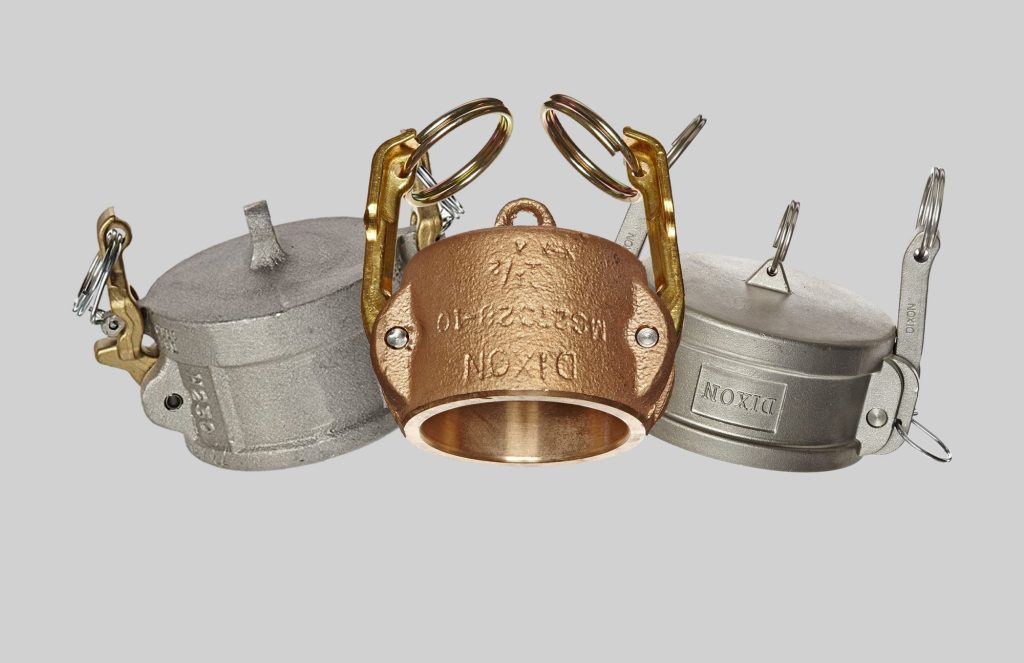

7. Dust Caps and Dust Plugs – Used to protect the connection points when not in use.
8. Male x Male Camlocks – These adapters feature two male ends, allowing for easy coupling between two female camlock couplers. They are commonly used when extending hose lines or creating custom configurations for fluid transfer applications.
9. Female x Male Camlocks – These adapters consist of a female camlock coupler on one end and a male camlock adapter on the other. They provide versatility in adapting different camlock connection types, often used in scenarios where a seamless transition between male and female fittings is required.

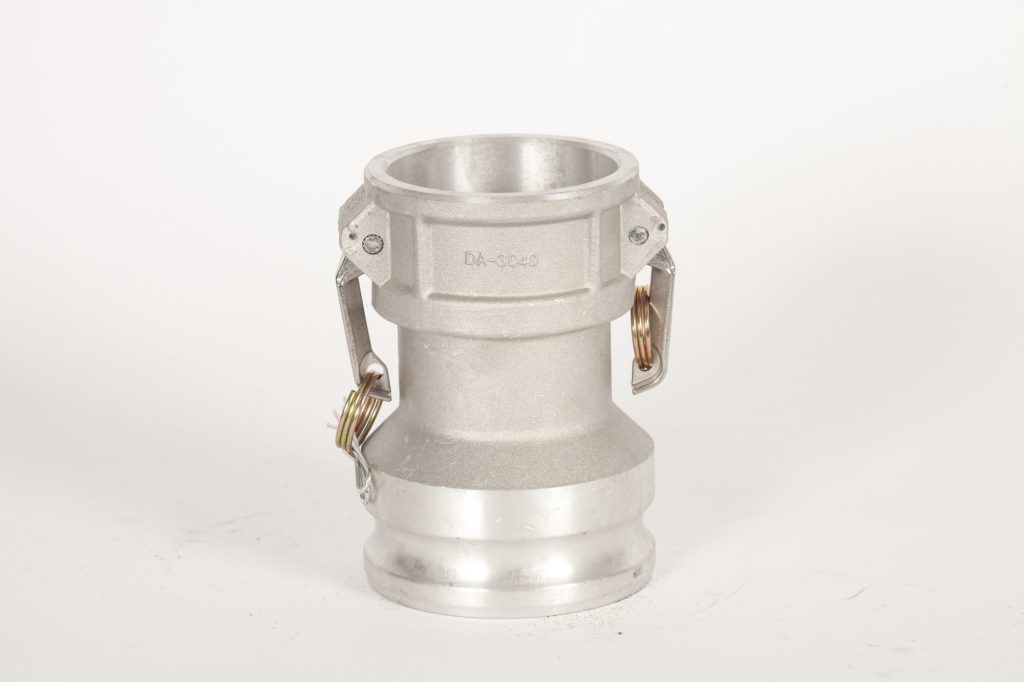

10. Reducing Camlock Adapters – These specialized adapters enable the connection of camlocks with different diameters, facilitating smooth transitions in fluid handling systems.
11. Male x Male Reducing Camlocks – Connects two hoses of different sizes with male camlock ends, useful in situations where a larger hose needs to be adapted to a smaller fitting.
12. Female x Female Reducing Camlocks – Used to link two female camlock couplers of different sizes, ensuring compatibility without requiring separate hoses or fittings.
13. Male x Female Reducing Camlocks – Adapts a male camlock fitting to a smaller female camlock coupler, often found in applications requiring precise flow control and pressure adjustments.

Materials Used in Camlock Adapters

Camlock adapters are manufactured using various materials, each offering unique properties:

• Aluminum – Lightweight and corrosion-resistant, ideal for water and petroleum-based applications.
• Stainless Steel – High durability and resistance to harsh chemicals, making it perfect for the chemical and food industries.
• Brass – Resistant to corrosion, commonly used in firefighting and marine applications.
• Polypropylene – Affordable and chemical-resistant, suitable for agricultural and light-duty applications.

Benefits of Using Camlock Adapters

Camlock adapters offer numerous advantages, including:

• Quick and Easy Installation – No tools are required, reducing downtime and labor costs.
• Leak-Proof Seals – Ensures a secure connection, preventing spills and leaks.
• Versatility – Suitable for various industries, from fuel transfer to food processing.
• Durability – Made from robust materials that withstand different environmental conditions.

Applications of Camlock Adapters

Camlock adapters are widely used in industries such as:

• Petroleum and Chemical Transfer – Ensuring safe and efficient transfer of hazardous liquids.
• Agriculture – Used in irrigation systems and fluid handling.
• Food and Beverage Processing – Compliant materials ensure safe handling of consumable liquids.
• Firefighting – Quick coupling enables rapid deployment of hoses.
• Manufacturing and Industrial Cleaning – Used in air and fluid transfer systems.

Choosing the Right Camlock Adapter

When selecting a camlock adapter, consider the following factors:

• Material Compatibility – Choose a material that resists the fluids being transferred.
• Size and Type – Ensure the adapter fits your existing system.
• Pressure and Temperature Ratings – Verify that the adapter can withstand the operating conditions.
• Industry Standards Compliance – Ensure the adapter meets relevant safety and regulatory requirements.

Final Thoughts

Camlock adapters are an invaluable solution for industries requiring efficient and secure hose connections. Understanding the different types, materials, and applications can help in selecting the right adapter for your specific needs. Whether for industrial, commercial, or agricultural use, camlock adapters offer a reliable and convenient way to enhance fluid transfer operations.
