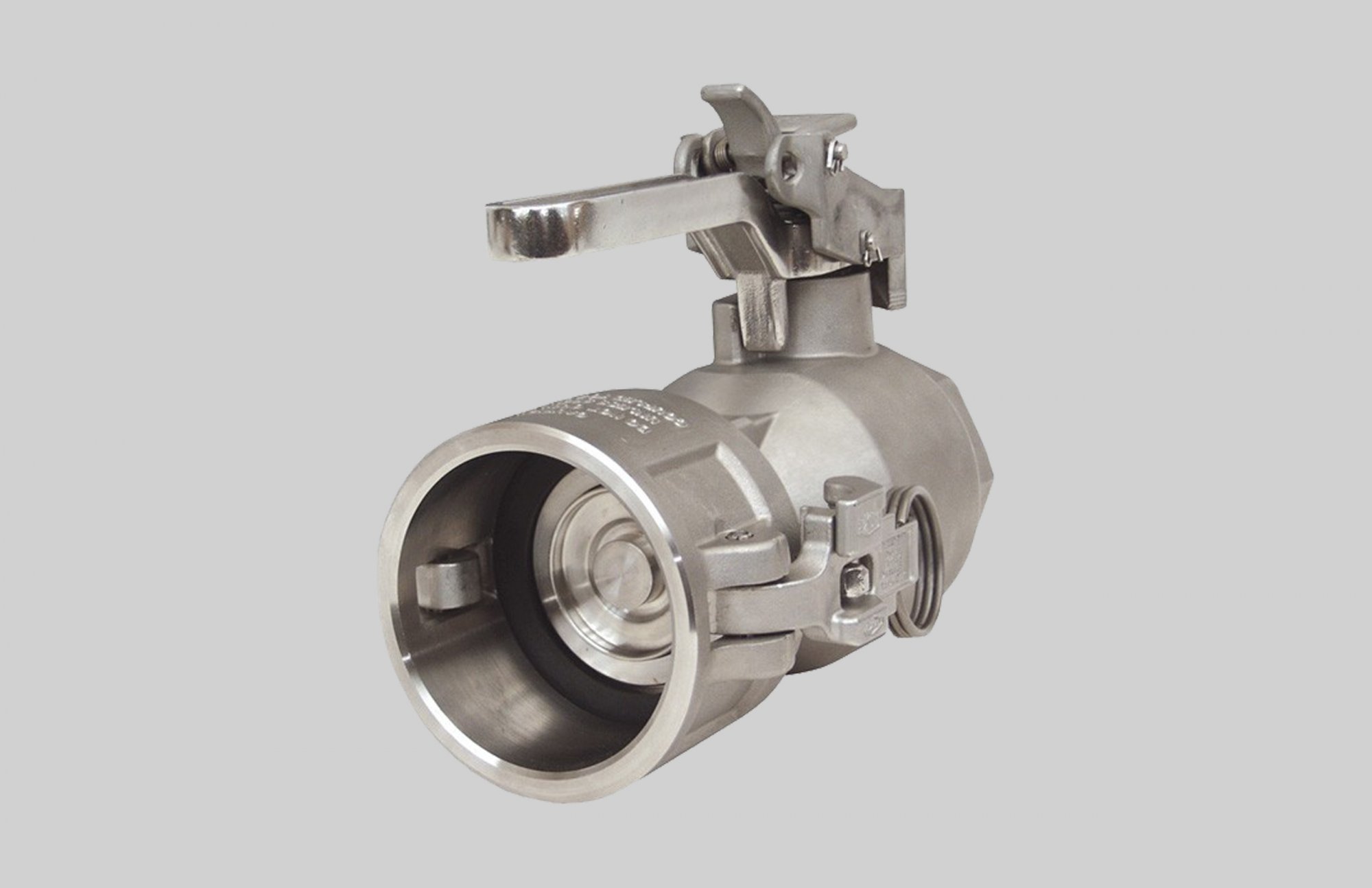

CAM & GROOVE ACTUATOR STYLE COUPLER Existing customers can log in to their account for additional savings Call for price Categories: Cam & Groove, Cam & Groove Fittings, Fittings, Hose Fittings Description Specification Description Applications Suited for vapor recovery, suction pump line and other applications where it is necessary to easily drain the hose or pipe for cleaning. Can also be used when product retention in a hose or pipe is desired and damage from accidental spill from an open coupler is not a concern. Dry disconnects help prevent spillage from normal and accidental disconnection of the connection. Use Couplers work with the DBA (Bayloc™ Dry Disconnect) poppeted adapters in applications where automatic closure for the coupler is not desired Use with standard cam and groove dust plugs sized one size larger than the dry disconnect size Features The D2C style coupler does not have an internal seal cylinder, therefore the couplings do not automatically close. Helps eliminate the possibility of costly spills EZ Boss-Lock™ automatic locking cam arms provide added security from accidental opening due to cam arms getting snagged or vibration. Very easy to use, just close the arms and they lock, to open simply lift the lever (possibly even with gloves on). Construction 316 stainless steel body 304 stainless steel internal components Stainless steel locking lever standard EZ Boss-Lock™ cam arms Specifications Part Number D2C7** Material 316 Stainless Steel Seal Buna, FKM, PTFE Encapsulated Silicone, EPDM, PTFE Encapsulated FKM Female Thread NPT Female Thread Size 1-1/2", 2" Coupler Size 2", 2-1/2" Maximum Operating Pressure 210 PSI at 70°F (21°C) Related products Gaskets – Camlock Cam Couplings – Domestic A Cam Couplings – Domestic F Cam Couplings – Domestic B
