Wet-R-Dri Valve – Standard & Detent

Light Weight | Compact | Versatile

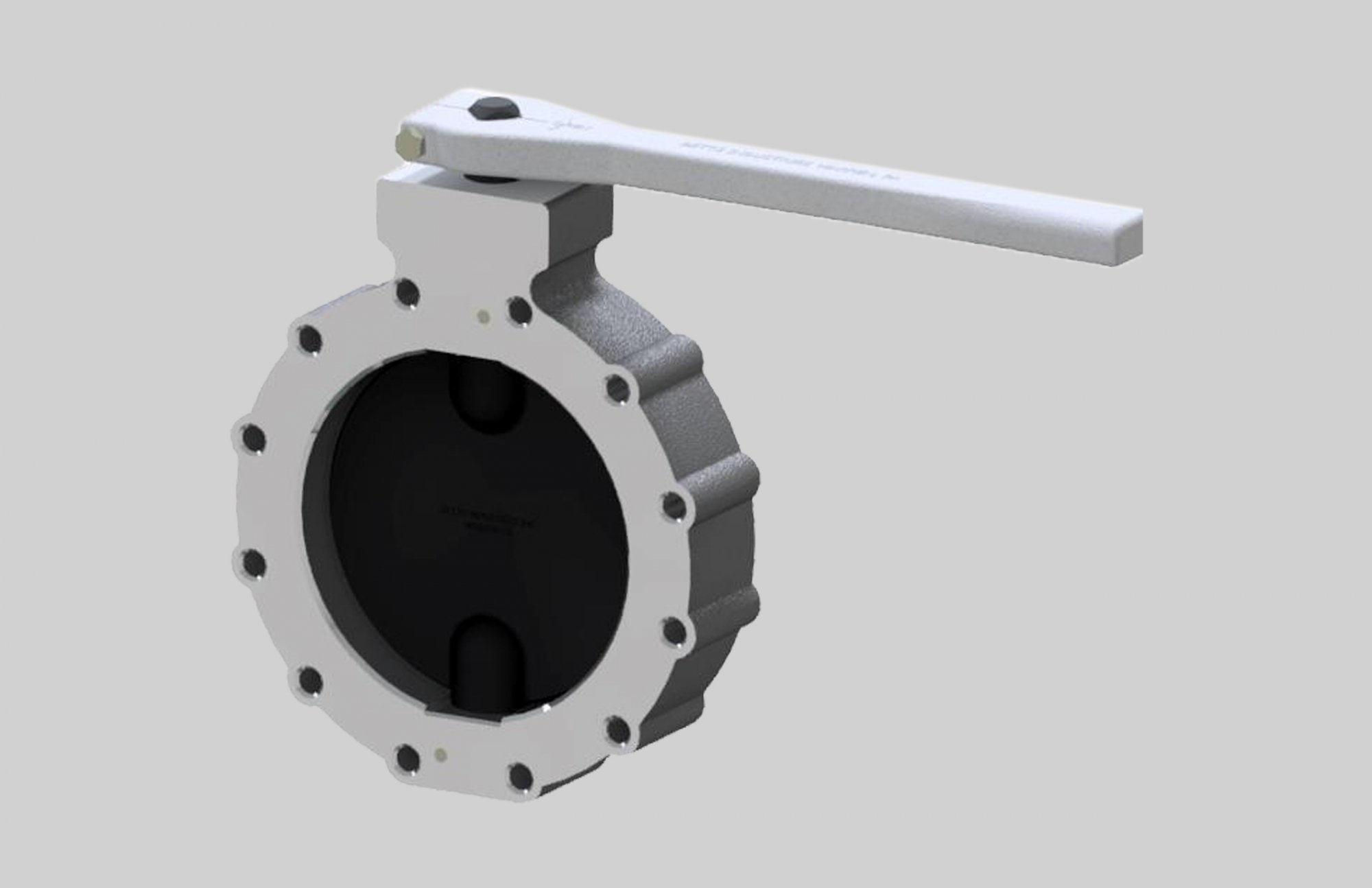

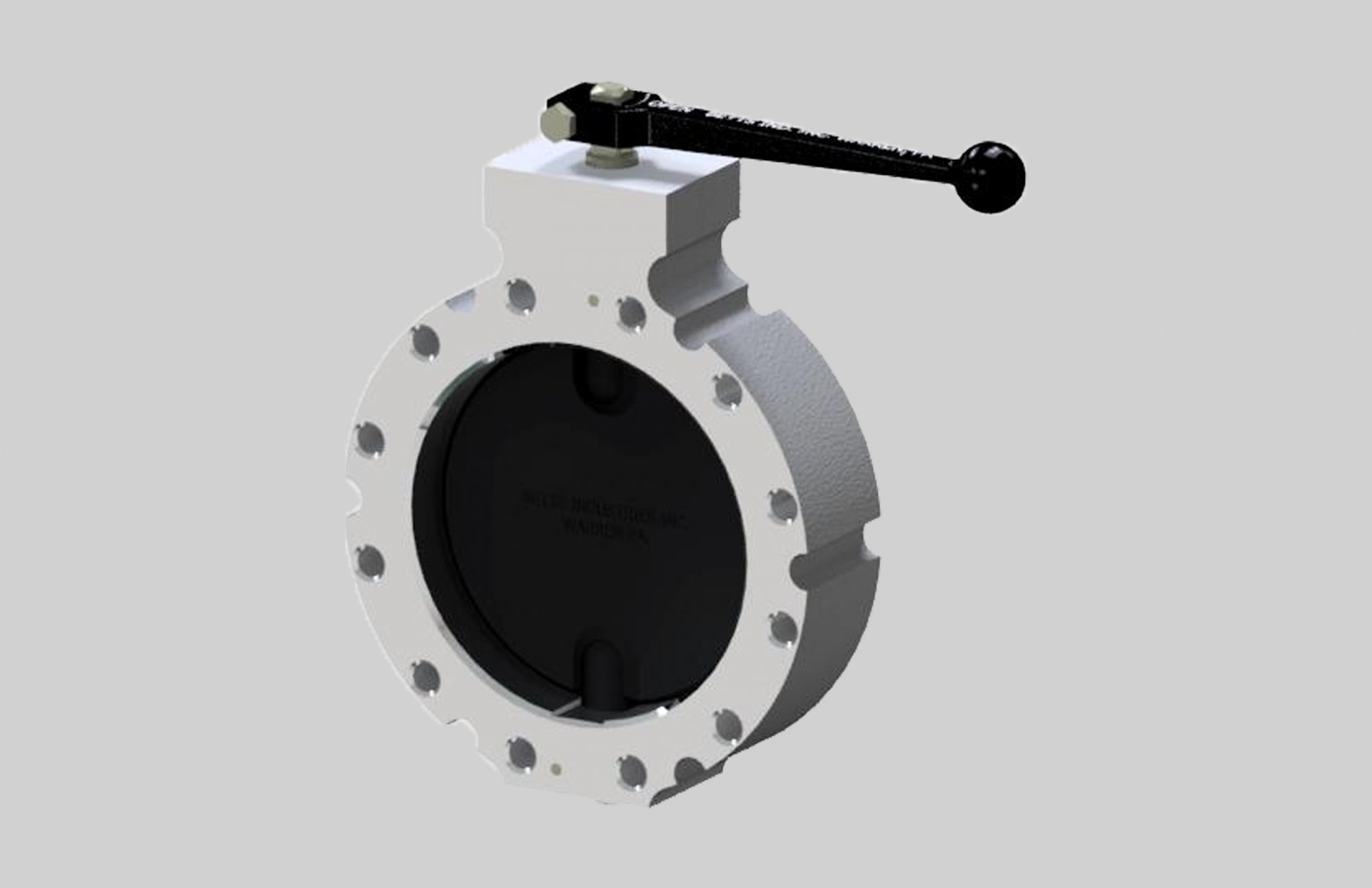

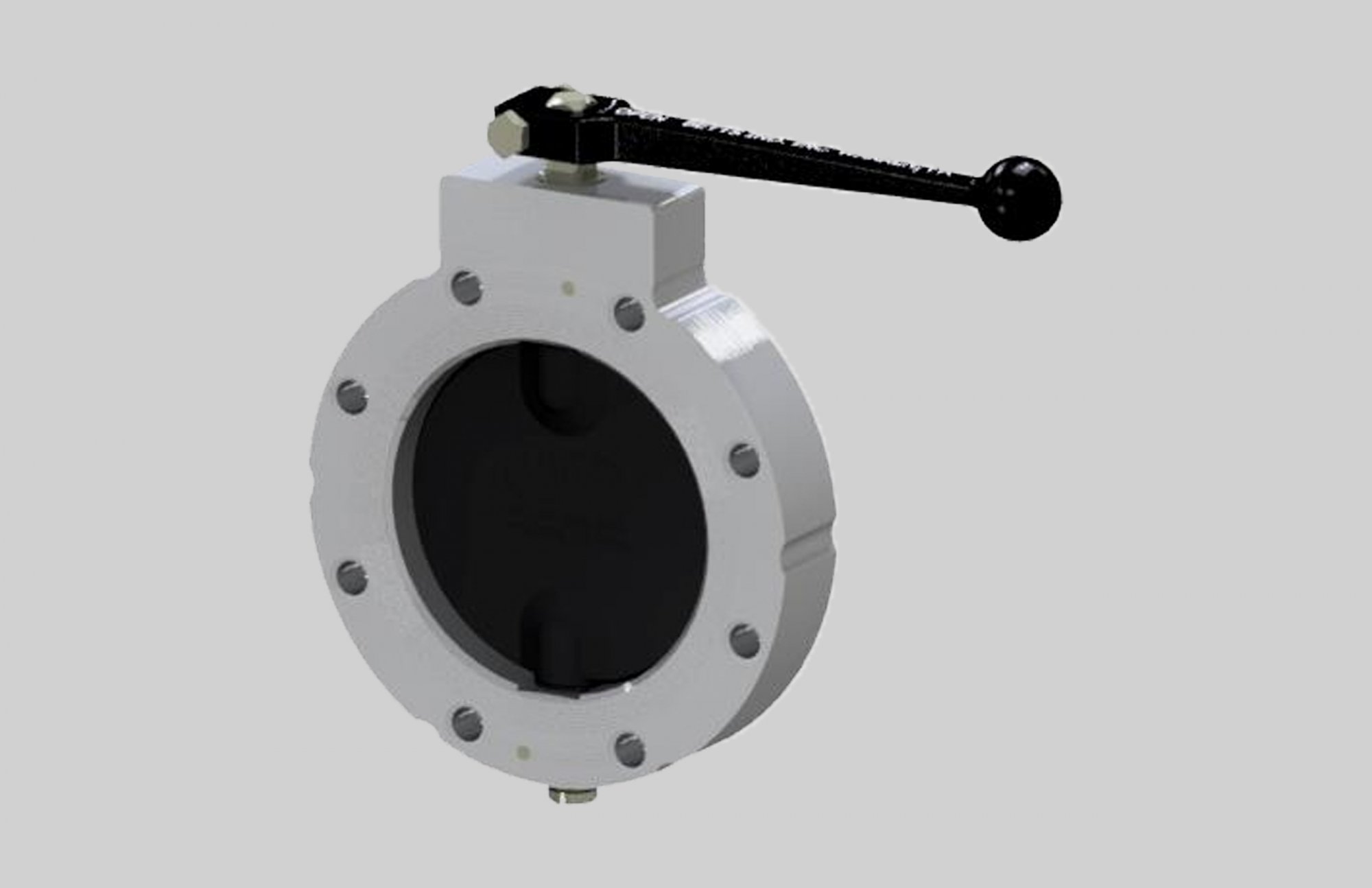

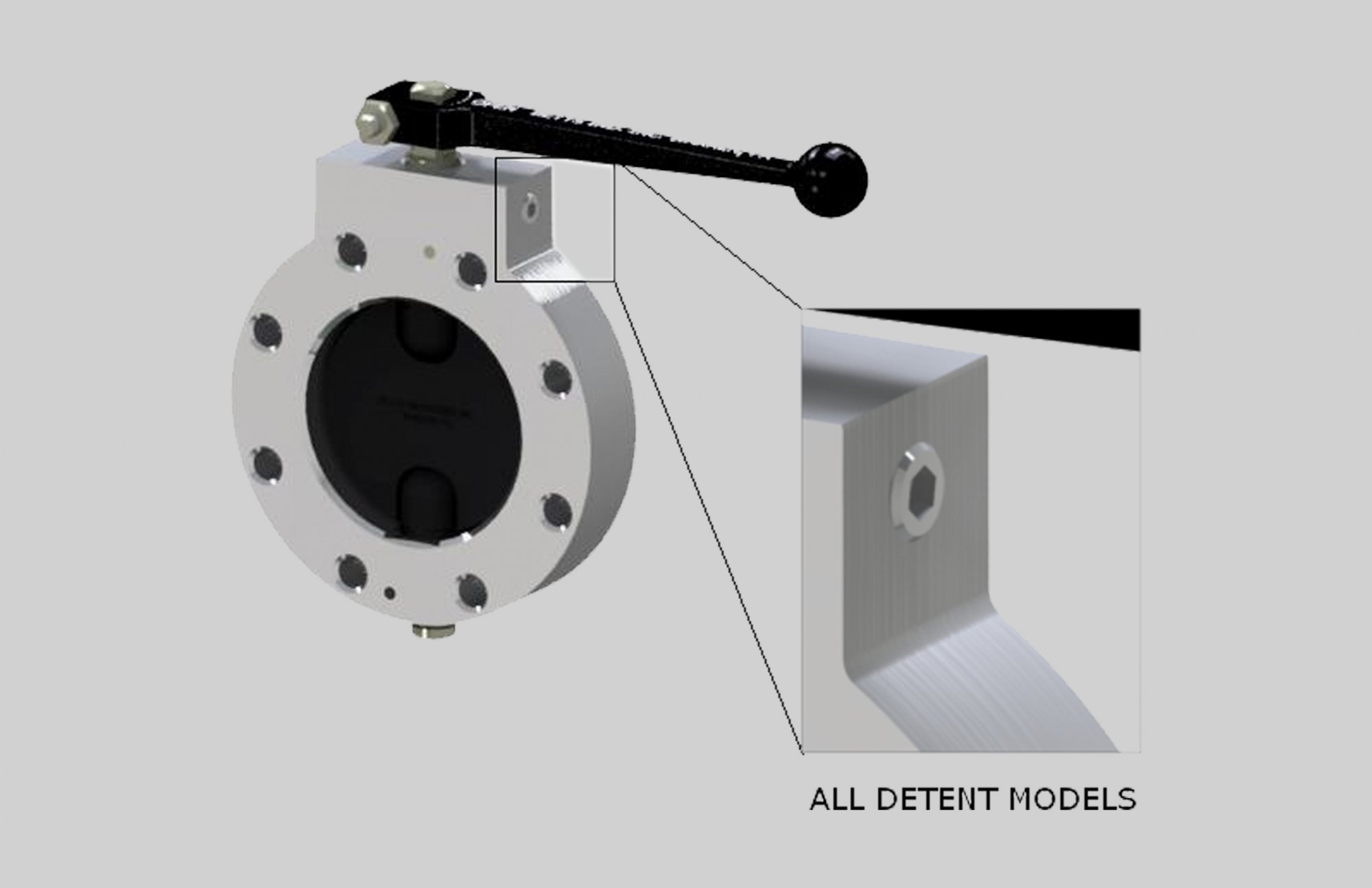

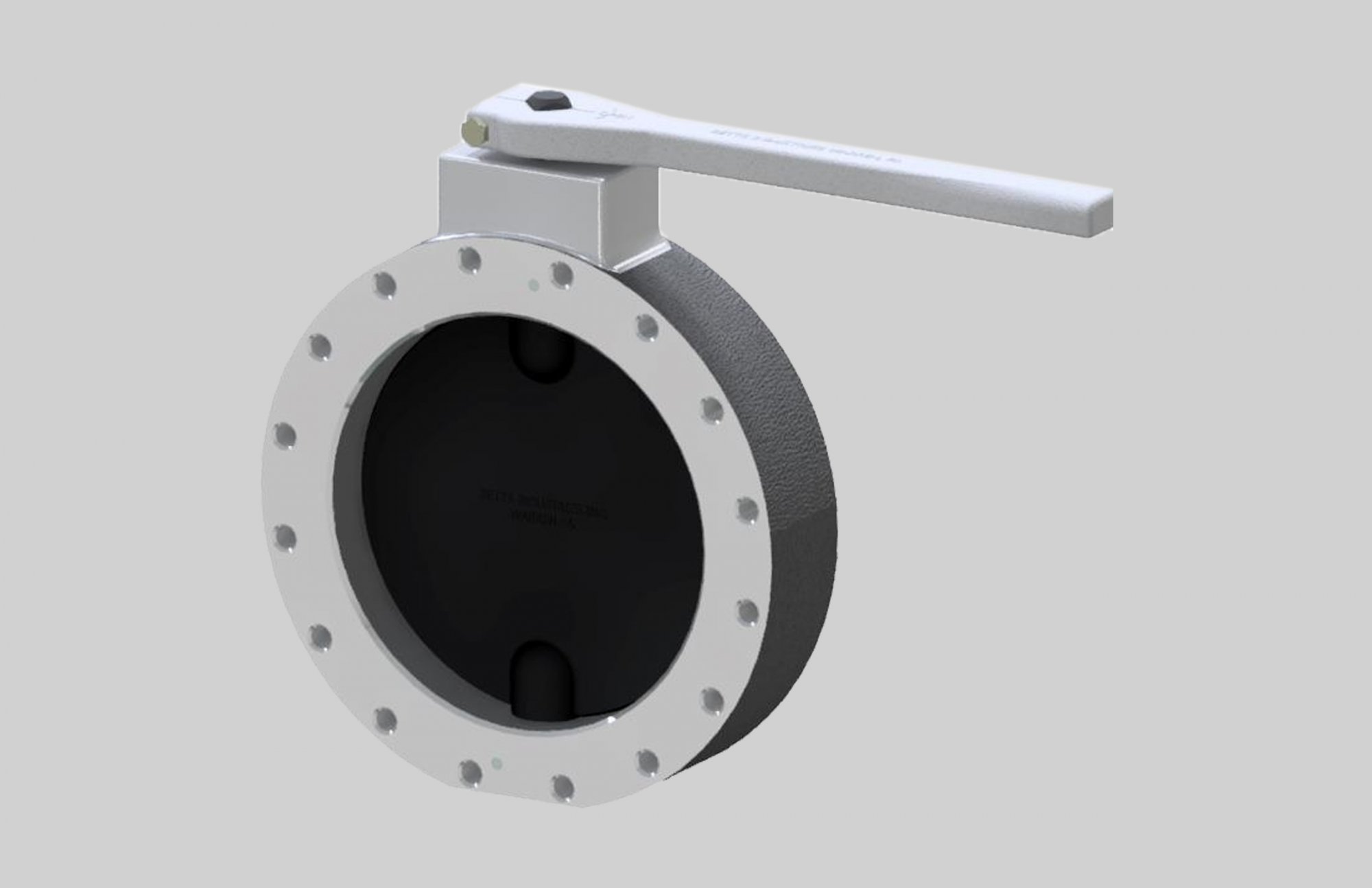

The Betts Wet-R-Dri valve is designed for handling liquid, gaseous or dry products and is available in a variety of sizes and models. This space saving valve is lightweight, easily maintained and has a positive stop in the open and closed position. The Detent model has a detent spring and ball which assist in holding the disc in the open and closed position.

Request Quote
Email for Quote
Call for Quote
Categories , , , , , , , , , , , Tags , , , ,

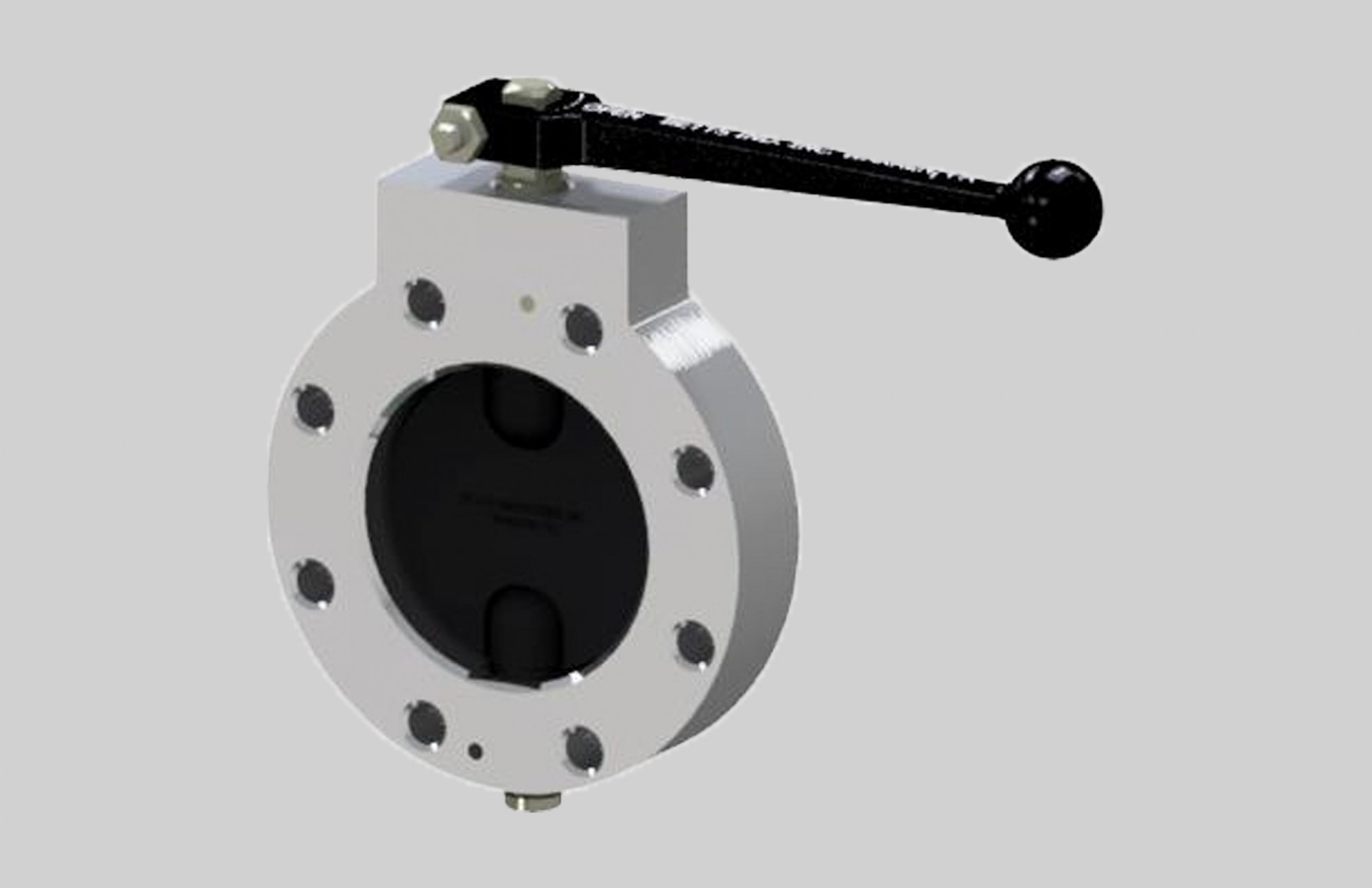

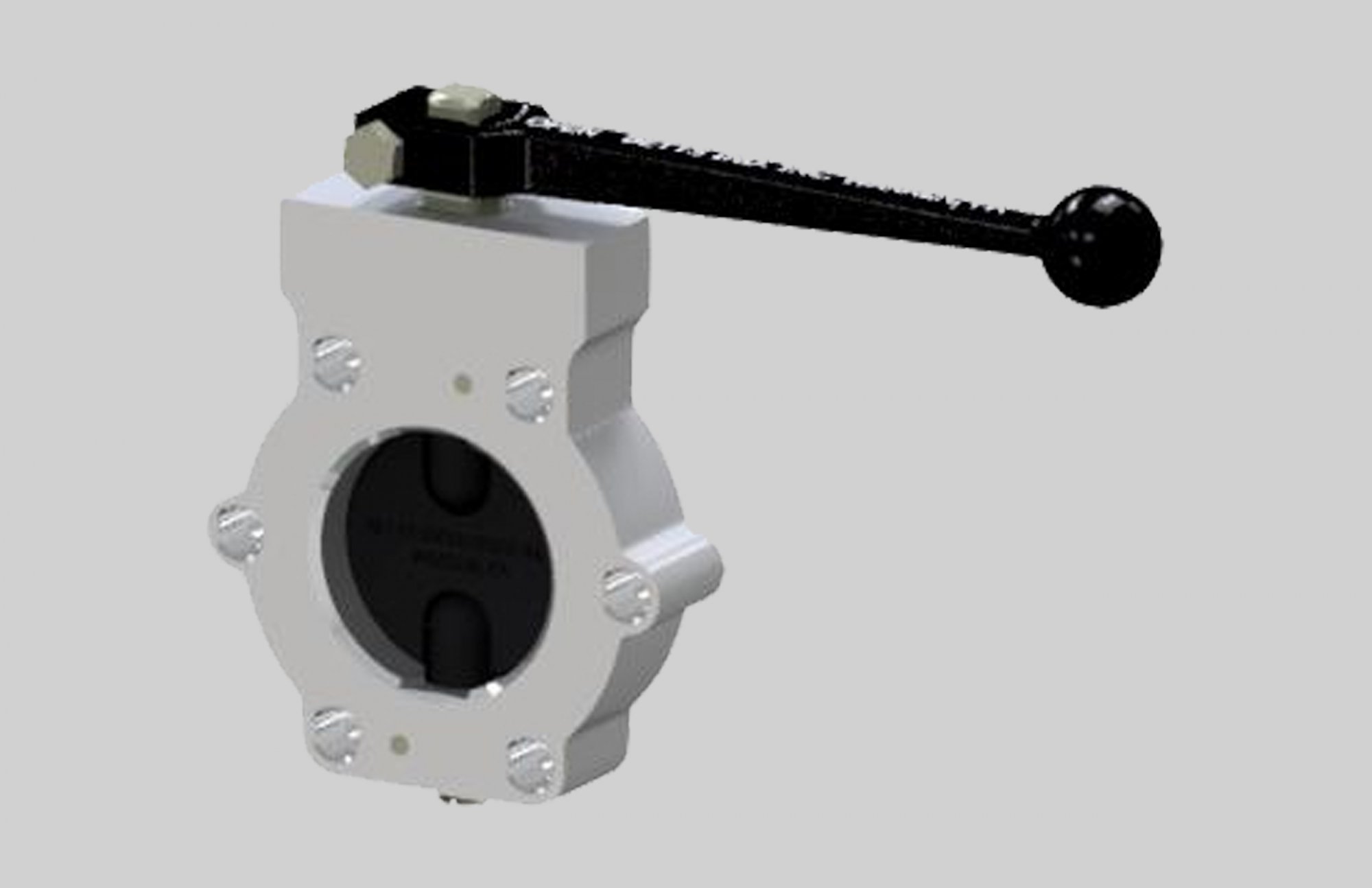

Wet-R-Dri Valve - Standard & Detent
Wet-R-Dri Valve - Standard & Detent - Image 2
Wet-R-Dri Valve - Standard & Detent - Image 3
Wet-R-Dri Valve - Standard & Detent - Image 4
Wet-R-Dri Valve - Standard & Detent - Image 5
Wet-R-Dri Valve - Standard & Detent - Image 6
Wet-R-Dri Valve - Standard & Detent - Image 7
Wet-R-Dri Valve - Standard & Detent - Image 8
Wet-R-Dri Valve - Standard & Detent - Image 9
Wet-R-Dri Valve - Standard & Detent - Image 10

Description

Light Weight | Compact | Versatile

The Betts Wet-R-Dri valve is designed for handling liquid, gaseous or dry products and is available in a variety of sizes and models. This space saving valve is lightweight, easily maintained and has a positive stop in the open and closed position. The Detent model has a detent spring and ball which assist in holding the disc in the open and closed position.

Specifications

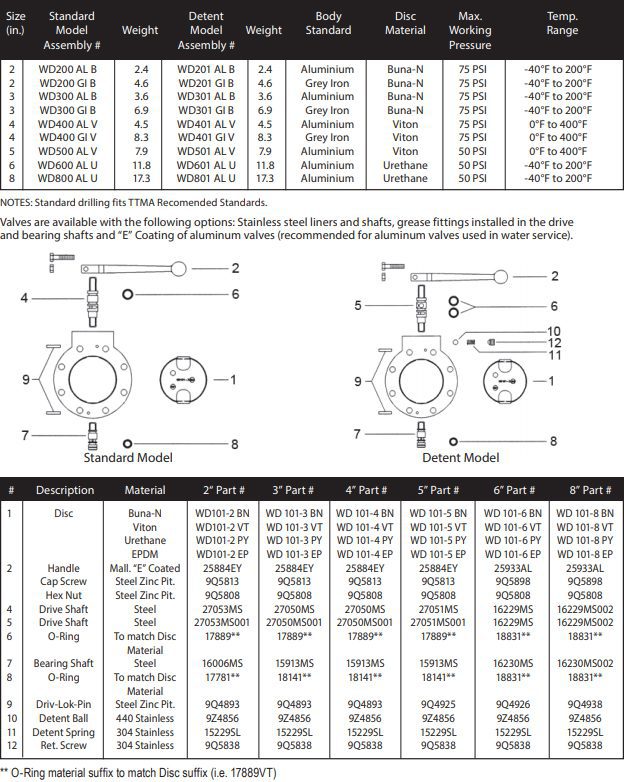

Size (in.) Standard Model Assembly # Weight Detent Model Assembly # Weight Body Standard Disc Material Max. Working Pressure Temp. Range
2 WD200 AL B 2.4 WD201 AL B 2.4 Aluminum Buna-N 75 PSI -40°F to 200°F
2 WD200 GI B 4.6 WD201 GI B 4.6 Grey Iron Buna-N 75 PSI -40°F to 200°F
3 WD300 AL B 3.6 WD301 AL B 3.6 Aluminum Buna-N 75 PSI -40°F to 200°F
3 WD300 GI B 6.9 WD301 GI B 6.9 Grey Iron Buna-N 75 PSI -40°F to 200°F
4 WD400 AL V 4.5 WD401 AL V 4.5 Aluminum Viton 75 PSI 0°F to 400°F
4 WD400 GI V 8.3 WD401 GI V 8.3 Grey Iron Viton 75 PSI 0°F to 400°F
5 WD500 AL V 7.9 WD500 AL V 7.9 Aluminum Viton 50 PSI 0°F to 400°F
6 WD600 AL U 11.8 WD600 AL U 11.8 Aluminum Urethane 50 PSI -40°F to 200°F
8 WD800 AL U 17.3 WD800 AL U 17.3 Aluminum Urethane 50 PSI -40°F to 200°F

NOTES: Standard drilling fits TTMA Recommended Standards.

Valves are available with the following options: Stainless Steel liners and shafts, grease fittings installed in the drive and bearing shafts and "E" Coating of aluminum valves (recommended for aluminum valves used in water service).
