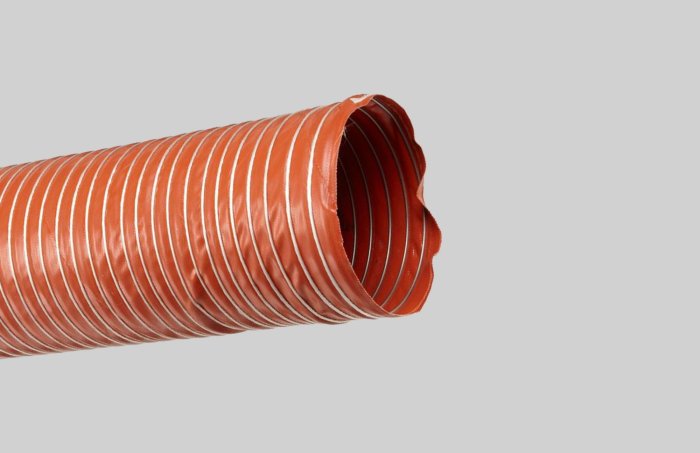

U-9 High Temperature Ducting

Tube:
One-ply silicone coated fiberglass, red

Reinforcement:
Spring wire helix

Temp Range:
-65°F to +450°F

Category Hose

U-9 High Temperature Ducting

Description
Specification

Description

Tube:
One-ply silicone coated fiberglass, red

Reinforcement:
Spring wire helix

Temp Range:
-65°F to +450°F

Specifications

Part #	I.D (in.)	O.D (in.)	Working PSI	Bend Radius (in.)	Weight (lbs/ft)	Standard Length
U9D100	1	1.12	19	.85	0.133	12
U9D125	1-1/4	1.37	18	.96	0.153	12
U9D150	1-1/2	1.62	18	1.2	0.19	12
U9D175	1-3/4	1.87	16	1.51	0.23	12
U9D200	2	2.12	15	1.72	0.3	12
U9D225	2-1/4	2.39	14	2.05	0.34	12
U9D250	2-1/2	2.65	14	2.15	0.37	12
U9D300	3	3.15	13	2.55	0.46	12
U9D350	3-1/2	3.70	12.5	3.1	0.51	12
U9D400	4	4.18	12	3.6	0.56	12
U9D450	4-1/2	4.67	11	4.15	0.68	12
U9D500	5	5.17	10	4.6	0.75	12
U9D550	5-1/2	5.17	9.5	5.2	0.86	12
U9D600	6	6.17	7	5.65	0.82	12
U9D650	6-1/2	6.69	7	6.12	0.86	12
U9D700	7	7.19	6	6.68	0.89	12
U9D800	8	8.19	5	7.58	0.98	12
U9D900	9	9.19	4.3	8.5	1.21	12
U9D1000	10	10.23	3	9.6	1.16	12
U9D1100	11	11.23	2.2	10.3	1.24	12
U9D1200	12	12.23	1.7	11.4	1.37	12
