TigerFlex WE Heavy Duty Food Hose with Static Wire – WE

Applications:
• Embedded static wire
• Paper mill vacuum lines

Tube:
• Smooth bore clear PVC (visual flow confirmation)

Cover:
• Corrugated PVC with embedded static wire

Temp Range:
• -40°F to +150°F

Request Quote
Email for Quote
Call for Quote
Category

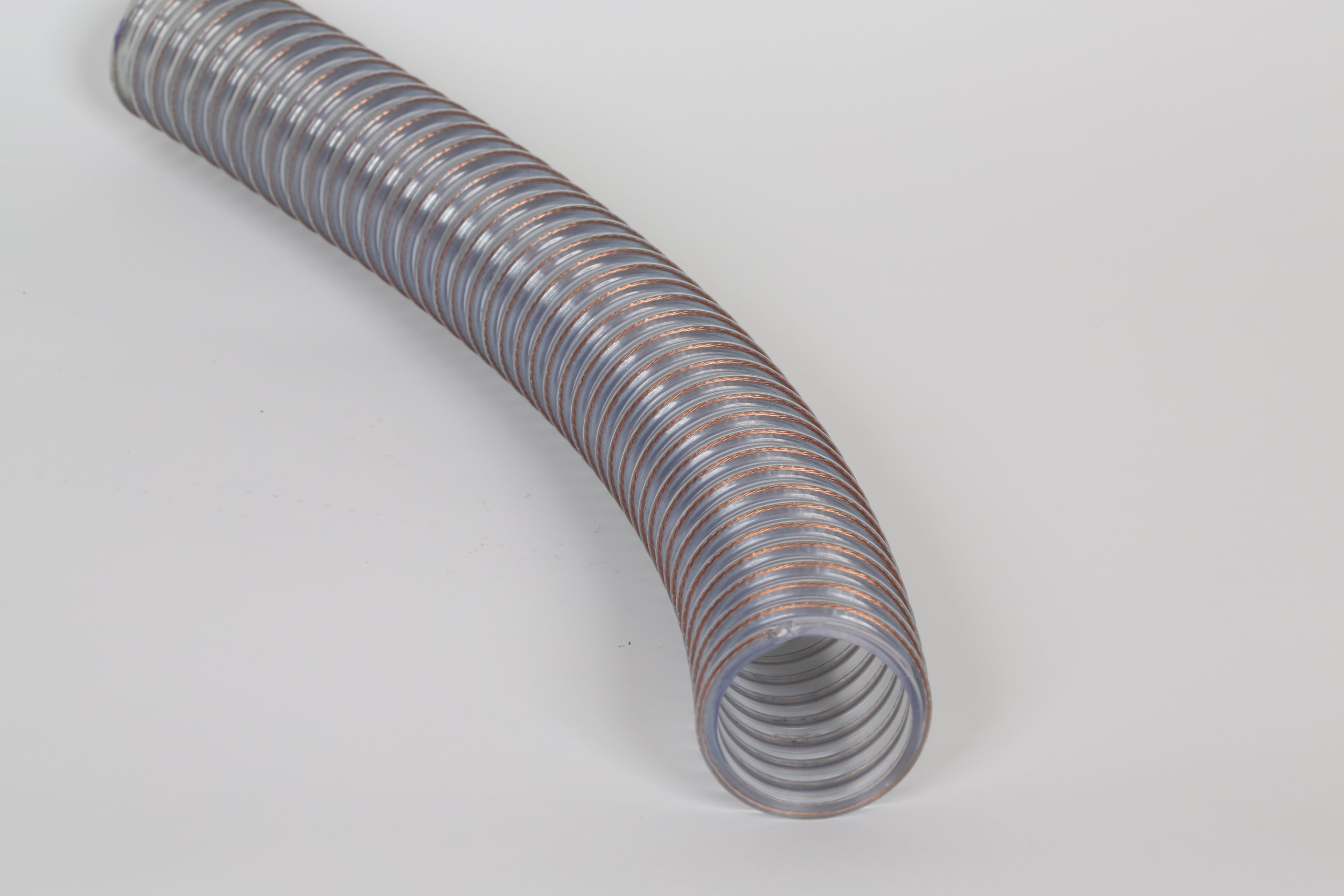

TigerFlex WE Heavy Duty Food Hose with Static Wire - WE

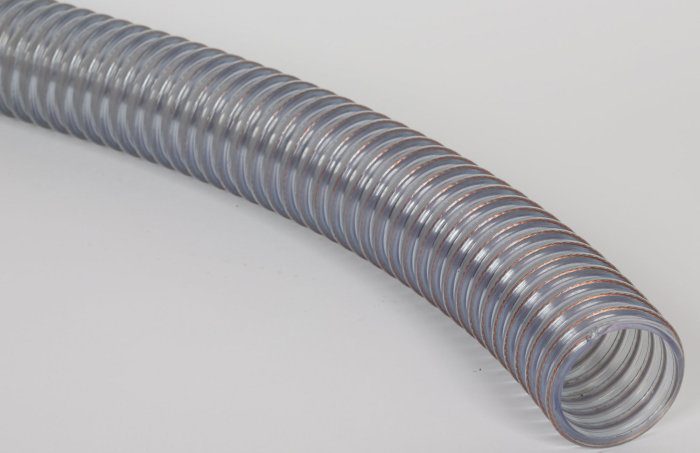

TigerFlex WE Heavy Duty Food Hose with Static Wire - WE - Image 2

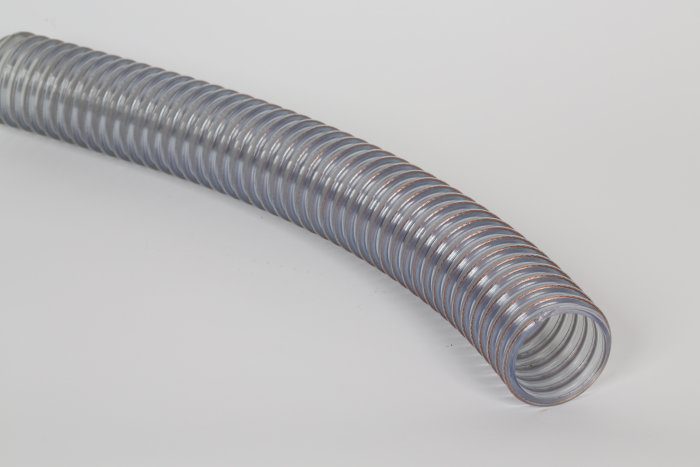

TigerFlex WE Heavy Duty Food Hose with Static Wire - WE - Image 3

Description

Applications:
• Embedded static wire
• Paper mill vacuum lines

Tube:
• Smooth bore clear PVC (visual flow confirmation)

Cover:
• Corrugated PVC with embedded static wire

Temp Range:
• -40°F to +150°F

Specifications

 Part #

I.D

(in.)

Working

(PSI)

Bend

Radius ( in.)

Weight

(lbs/ft)

Standard

Length
WE125 1 1/4 50 2.0 .33 100
WE150 1 1/2  50 3.0 .43 100
WE200 2 40 4.0 .58 100
WE250 2 1/2 40 5.0 .89 100
WE300 3 40 6.0 1.25 100
WE350 3 1/2 35 8.0 1.55 60
WE400 4  35 10.0 1.93 60
WE500 5 30 16.0 2.40 60
WE600 6 30 18.0 3.70 60

Also available in 1".

Additional information

Inner Diameter

1-1/4", 1-1/2", 2-1/2", 2", 3", 3-1/2", 4", 5", 6"
