High Pressure Teflon Hose : T1700 / T2000 Series

Product Overview

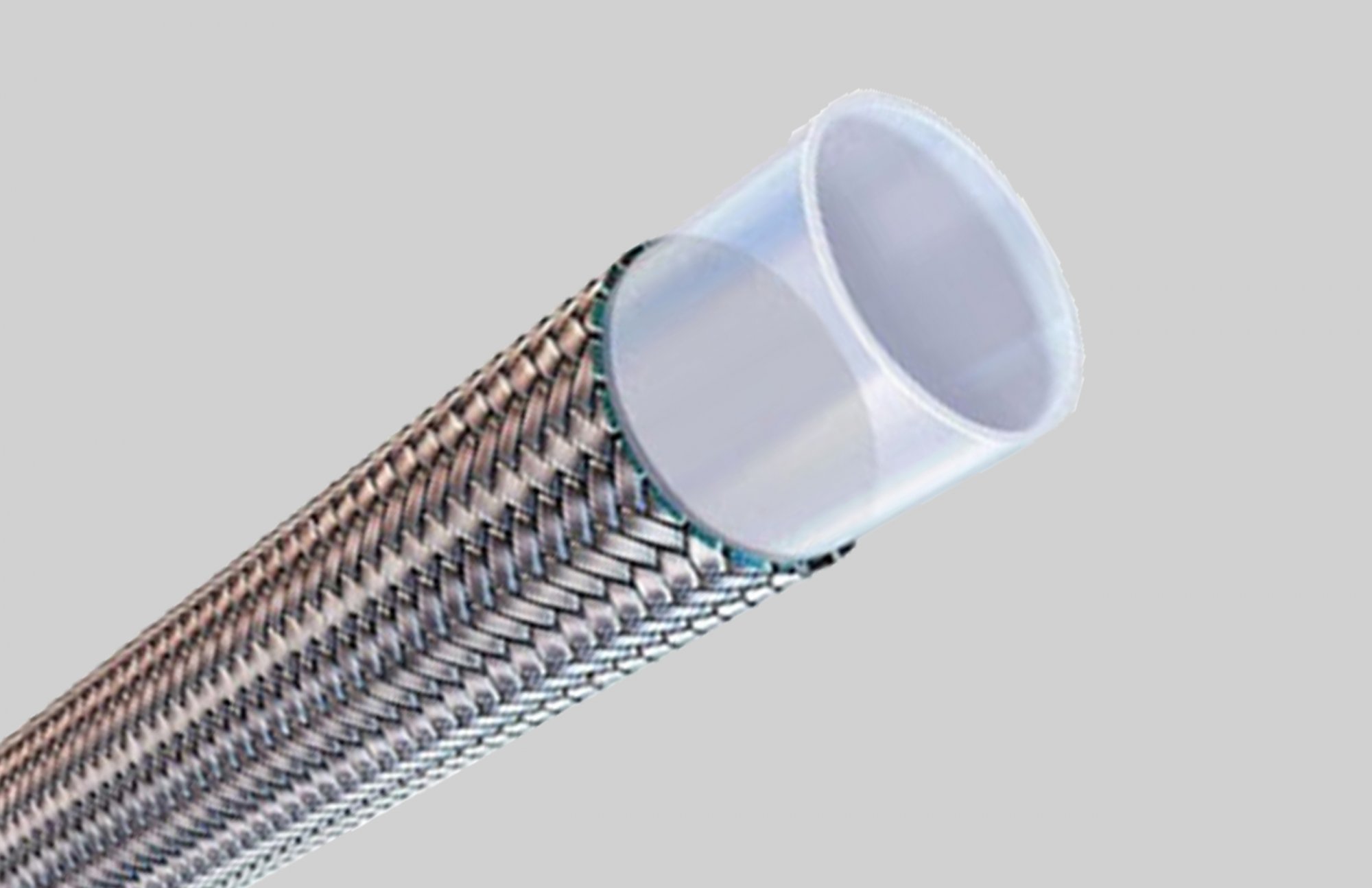

The T1700/T2000 Series High-Pressure Teflon Hoses are engineered for durability, flexibility, and chemical resistance, making them ideal for demanding industrial applications. Designed with a PTFE (polytetrafluoroethylene) core and stainless steel reinforcement, these hoses provide exceptional performance under high pressure and extreme temperatures.

Key Features

  • PTFE Core: Ensures superior chemical resistance, non-stick properties, and minimal fluid contamination.
  • Stainless Steel Braiding: Enhances durability, pressure tolerance, and resistance to abrasion.
  • Temperature Range: -60°C to +260°C , suitable for extreme conditions.
  • Flexible Design: Allows for easy installation in tight spaces without compromising performance.
  • Inner Layer: Medium wall antistatic smooth bore PTFE tube.
  • Outer Layer: High tensile 304 maypole wound Stainless Steel bunch braid.
  • Material: PTFE according to “ISO12086, Part 1. PTFE-E.P.D.M 1.61.C.E.4_12”.

Applications

  • Aerospace & Automotive: Suitable for hydraulic and fuel transfer lines.
  • Chemical Processing: Ideal for transferring aggressive chemicals and solvents.
  • Pharmaceutical & Food Industries: Ensures contamination-free fluid transfer in compliance with Canadian Food Inspection Agency (CFIA) standards.
  • Industrial Manufacturing: Used in high-pressure pneumatic and hydraulic systems.



The lightweight high pressure hose with and antistatic PTFE liner, performing well above its weight for hydraulic applications (T1700 has a post sintered antistatic PTFE liner for gas applications).

Ideal for applications requiring strength reliability and long term performance.



Why Choose Ontario Hose?

  • Certified for Canadian Regulations: Our hoses comply with Canadian safety and quality standards, ensuring suitability for local industries.
  • Trusted by Leading Canadian Businesses: Many companies across Canada rely on our products for critical applications.
  • Expert Support: Our team provides technical guidance to help you choose the right hose for your needs.
  • Fast Shipping Across Canada: Get your high-pressure Teflon hoses delivered promptly anywhere in Canada.
Request Quote
Email for Quote
Call for Quote
Categories , , , , Tags , , , ,
Teflon Hose - High Pressure: T1700 / T2000 Series

Description

Product Overview

The T1700/T2000 Series High-Pressure Teflon Hoses are engineered for durability, flexibility, and chemical resistance, making them ideal for demanding industrial applications. Designed with a PTFE (polytetrafluoroethylene) core and stainless steel reinforcement, these hoses provide exceptional performance under high pressure and extreme temperatures.

Key Features

  • PTFE Core: Ensures superior chemical resistance, non-stick properties, and minimal fluid contamination.
  • Stainless Steel Braiding: Enhances durability, pressure tolerance, and resistance to abrasion.
  • Temperature Range: -60°C to +260°C , suitable for extreme conditions.
  • Flexible Design: Allows for easy installation in tight spaces without compromising performance.
  • Inner Layer: Medium wall antistatic smooth bore PTFE tube.
  • Outer Layer: High tensile 304 maypole wound Stainless Steel bunch braid.
  • Material: PTFE according to “ISO12086, Part 1. PTFE-E.P.D.M 1.61.C.E.4_12”.

Applications

  • Aerospace & Automotive: Suitable for hydraulic and fuel transfer lines.
  • Chemical Processing: Ideal for transferring aggressive chemicals and solvents.
  • Pharmaceutical & Food Industries: Ensures contamination-free fluid transfer in compliance with Canadian Food Inspection Agency (CFIA) standards.
  • Industrial Manufacturing: Used in high-pressure pneumatic and hydraulic systems.



The lightweight high pressure hose with and antistatic PTFE liner, performing well above its weight for hydraulic applications (T1700 has a post sintered antistatic PTFE liner for gas applications).

Ideal for applications requiring strength reliability and long term performance.



Why Choose Ontario Hose?

  • Certified for Canadian Regulations: Our hoses comply with Canadian safety and quality standards, ensuring suitability for local industries.
  • Trusted by Leading Canadian Businesses: Many companies across Canada rely on our products for critical applications.
  • Expert Support: Our team provides technical guidance to help you choose the right hose for your needs.
  • Fast Shipping Across Canada: Get your high-pressure Teflon hoses delivered promptly anywhere in Canada.

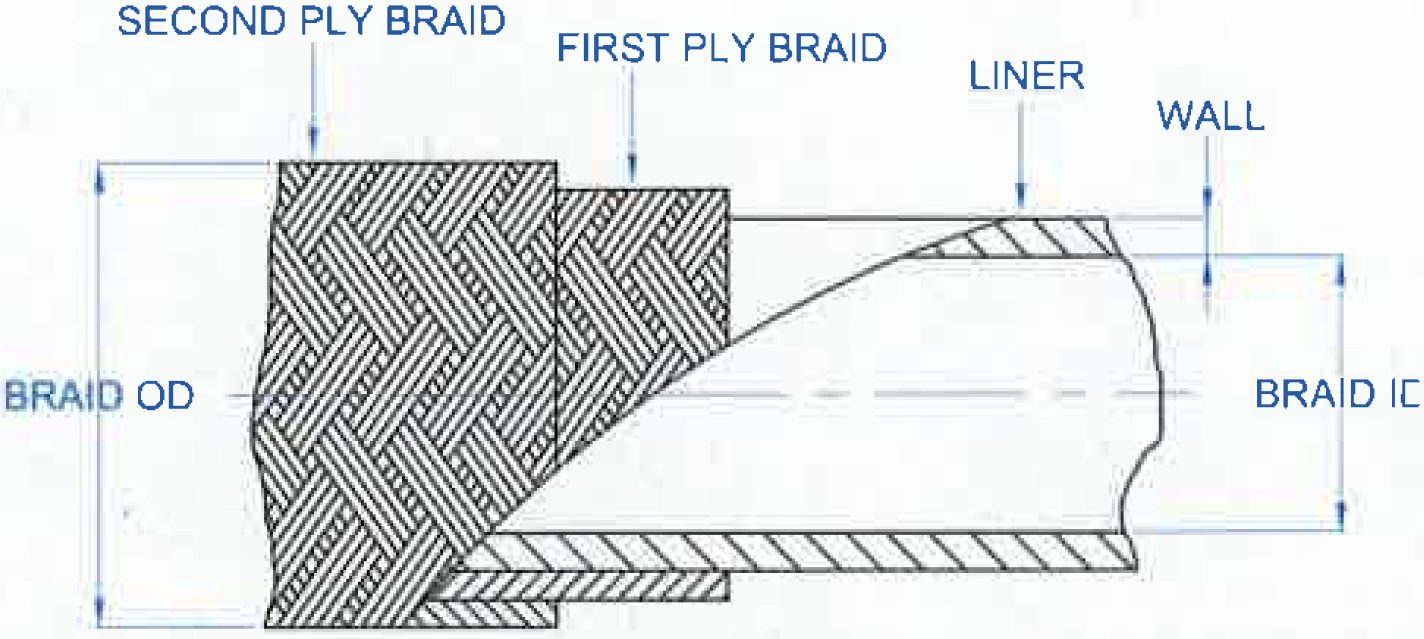

Specifications



USA Part #

Part #

Description

Tube Wall Thickness Nom

Braid OD Nominal

Tolerance + / -

Braid ID Nominal

Tolerance + / -

Max Working Pressure

Min. Burst Pressure

Min. Bend Radius
- - - (MM) (IN) (MM) (IN) (MM) (IN) (MM) (IN) (MM) (IN) (PSI) (BAR) (PSI) (BAR) (MM) (IN)
T1700 / 2000-04 T1700 / 2000-04 1/4" Light Weight HP 1.03 0.041 9.53 0.375 0.38 0.015 5.64 0.222 0.25 0.01 5,000 345 16,000 1,103 38 1.5
T1700 / 2000-06 T1700 / 2000-06 3/8" Light Weight HP 1.03 0.041 12.01 0.473 0.38 0.015 7.82 0.308 0.25 0.01 5,000 345 16,000 1,103 64 2.5
T1700 / 2000-08 T1700 / 2000-08 1/2" Light Weight HP 1.17 0.046 15.24 0.6 0.44 0.018 10.19 0.401 0.25 0.01 5,000 345 16,000 1,103 74 2.9
T1700 / 2000-10 T1700 / 2000-10 5/8" Light Weight HP 1.3 0.051 18.03 0.71 0.46 0.018 12.57 0.495 0.25 0.01 5,000 345 16,000 1,103 84 3.3
T1700 / 2000-12 T1700 / 2000-12 3/4" Light Weight HP 1.3 0.051 24.64 0.97 0.51 0.02 15.67 0.617 0.38 0.015 5,000 345 16,000 1,103 102 4
T1700 / 2000-16 T1700 / 2000-16 1" Light Weight HP 1.3 0.051 31.75 1.25 0.51 0.02 22.02 0.867 0.37 0.015 5,000 345 16,000 1,103 127 5
T1700 / 2000-20 T1700 / 2000-20 1-1/4" Light Weight HP 1.8 0.071 40.64 1.6 1.02 0.04 28.58 1.125 0.64 0.025 4,000 276 16,000 1,103 305 12
T1700 / 2000-24 T1700 / 2000-24 1-1/2" Light Weight HP 0.8 0.071 48.77 1.92 1.02 0.04 34.93 1.375 0.64 0.025 4,000 276 12,000 827 356 14

Note:

T1700 has a post sintered PTFE liner for more help on which hose to select for your application please contact our sales team.
Please contact our sales team for more information on these products.
