SUTTNER QUICK DISC NOZZLE

Call for price
Categories: , , , , ,

Description

Applications

For applications requiring quick exchange of different degree nozzles.

Features

• 1/4” quick connect/disconnect design.

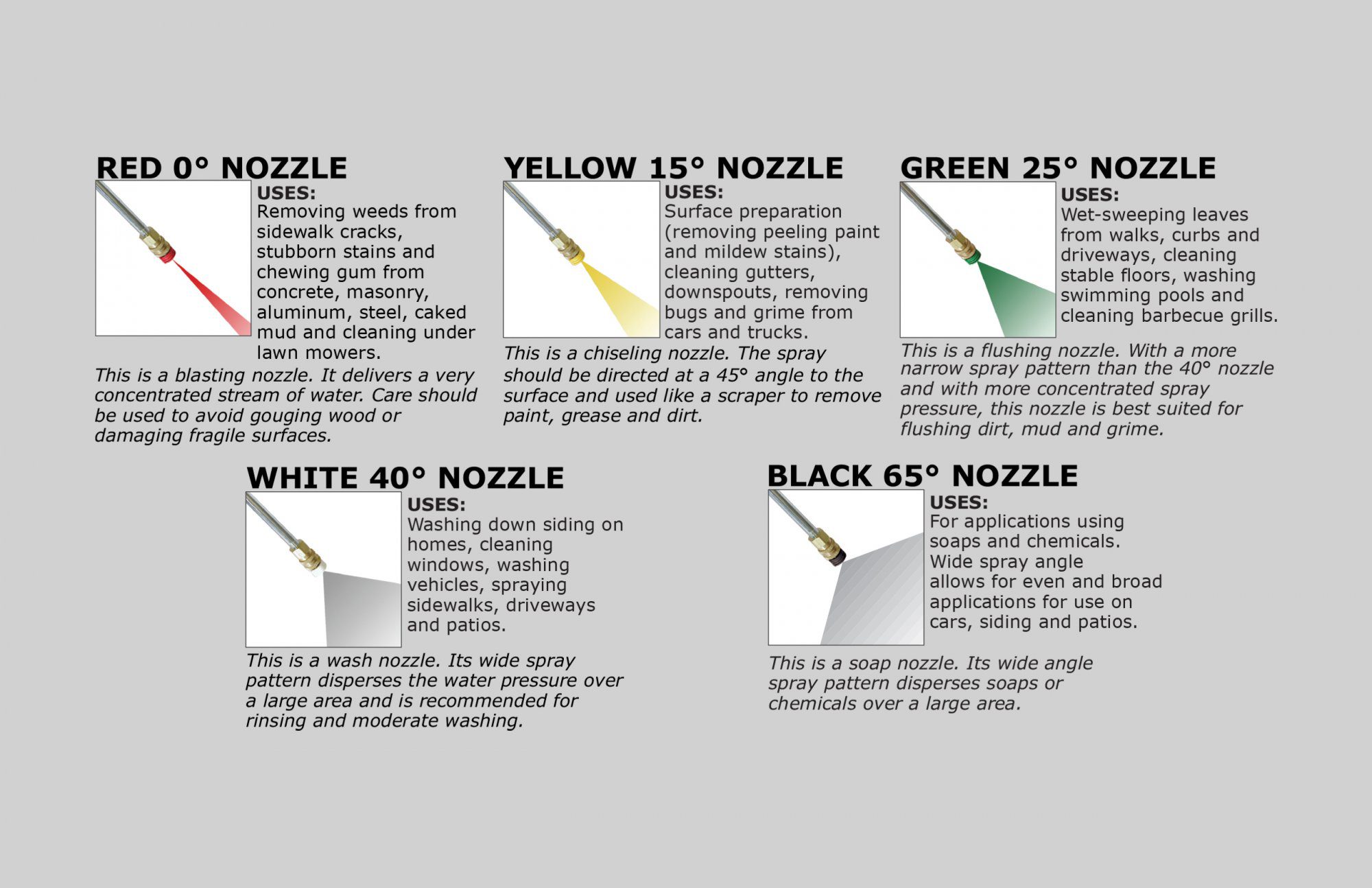

• Spray angles range from high impact solid stream 0˚ to 40˚ flat spray.

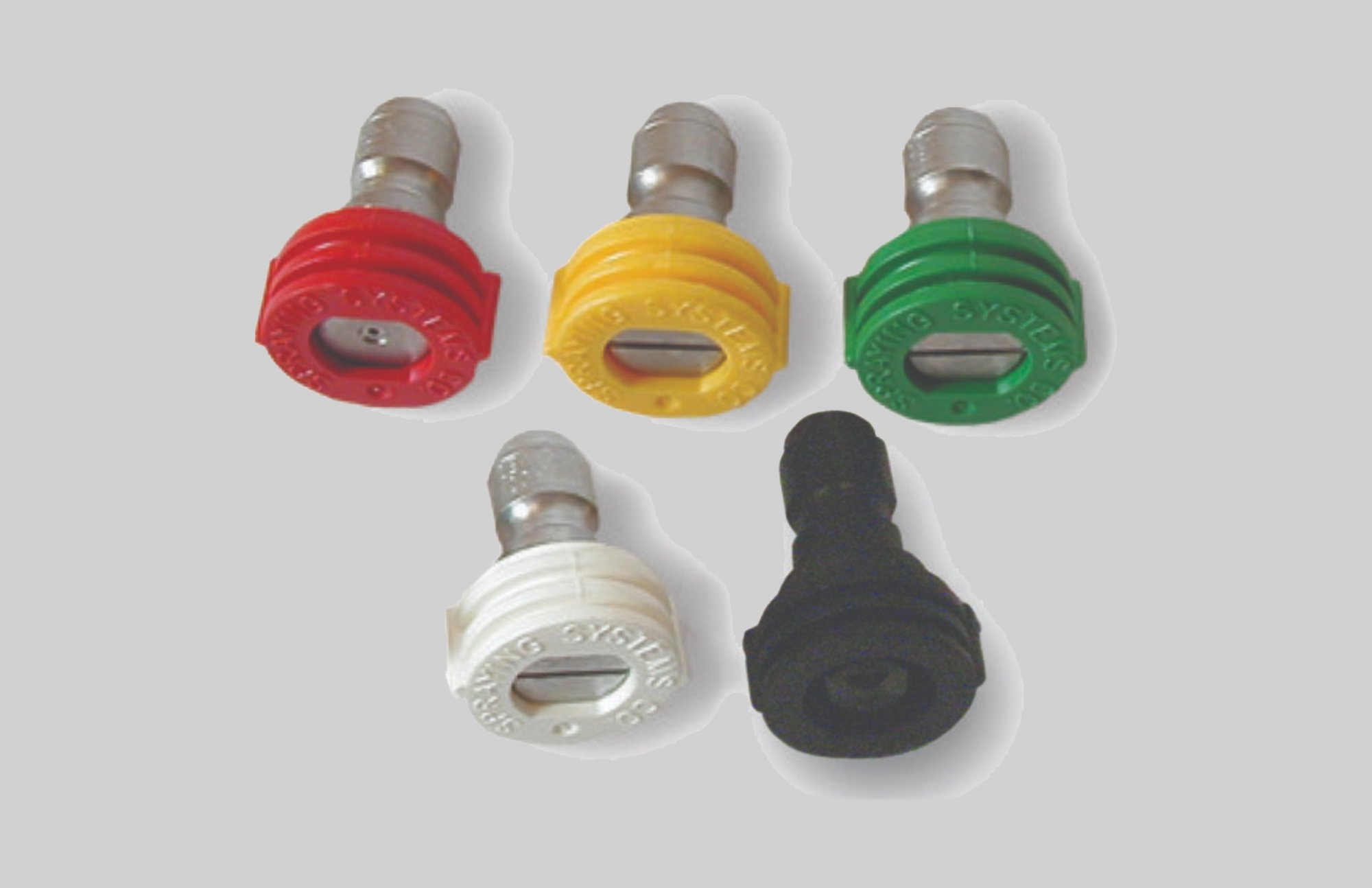

• QCMEG include color coded protective nozzle guards identify nozzle degree.

Specifications

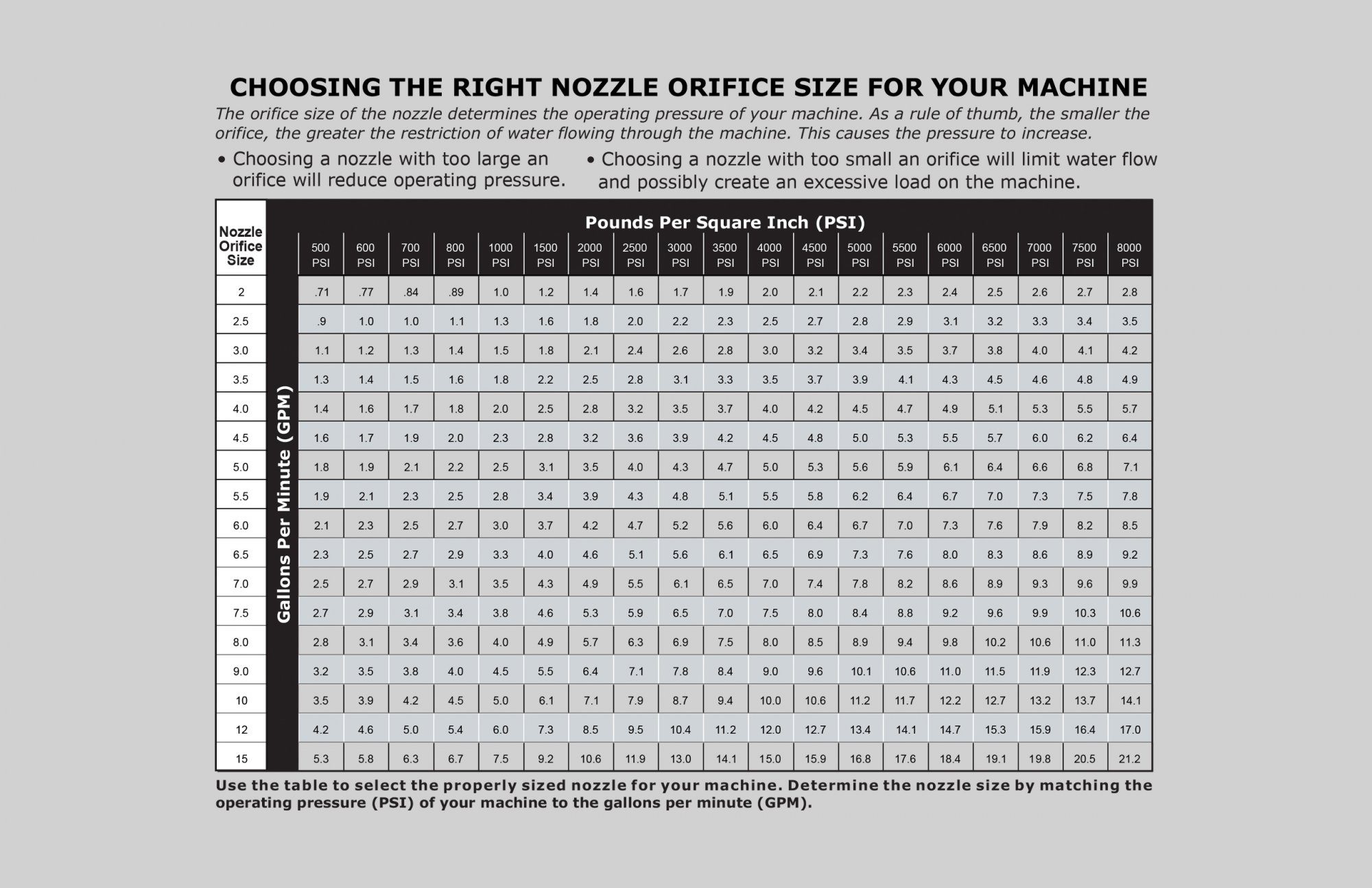

Orifice Size 0° (Red) 15° (Yellow) 25° (Green) 40° (White) Soap Nozzles
2.0 - 900001520 900002520 - -
2.5 - - 900002525 - -
3.0 900000D30 900001530 900002530 900004030 -
3.5 900000D35 900001535 900002535 900004035 -
4.0 900000D40 900001540 900002540 900004040 -
4.5 900000D45 900001545 900002545 900004045 -
5.0 900000D50 900001550 900002550 900004050 -
5.5 900000D55 900001555 900002555 900004055 -
6.0 900000D60 900001560 900002560 900004060 -
6.5 900000D65 900001565 900002565 900004065 -
7.0 900000D70 900001570 900002570 900004070 -
7.5 900000D375 900001575 900002575 900004075 -
8.0 900000D80 900001580 900002580 900004080 -
8.5 900000D85 900001585 900002585 900004085 -
9.0 900000D90 900001590 900002590 900004090 -
10.0 900000D10 900001510 900002510 900004010 -
12.0 900000D12 900001512 900002512 900004012 -
15.0 900000D15 900001515 900002515 900004015 -
20.0 900000D20 900015D20 - - -
30.0 (Special Order) - 900015D30 - - -
35.0 (Special Order) - 900015D35 - - -
40.0 - - - - 83900654
40.0 - - - - 9000S2540

OHS #

Part # Description

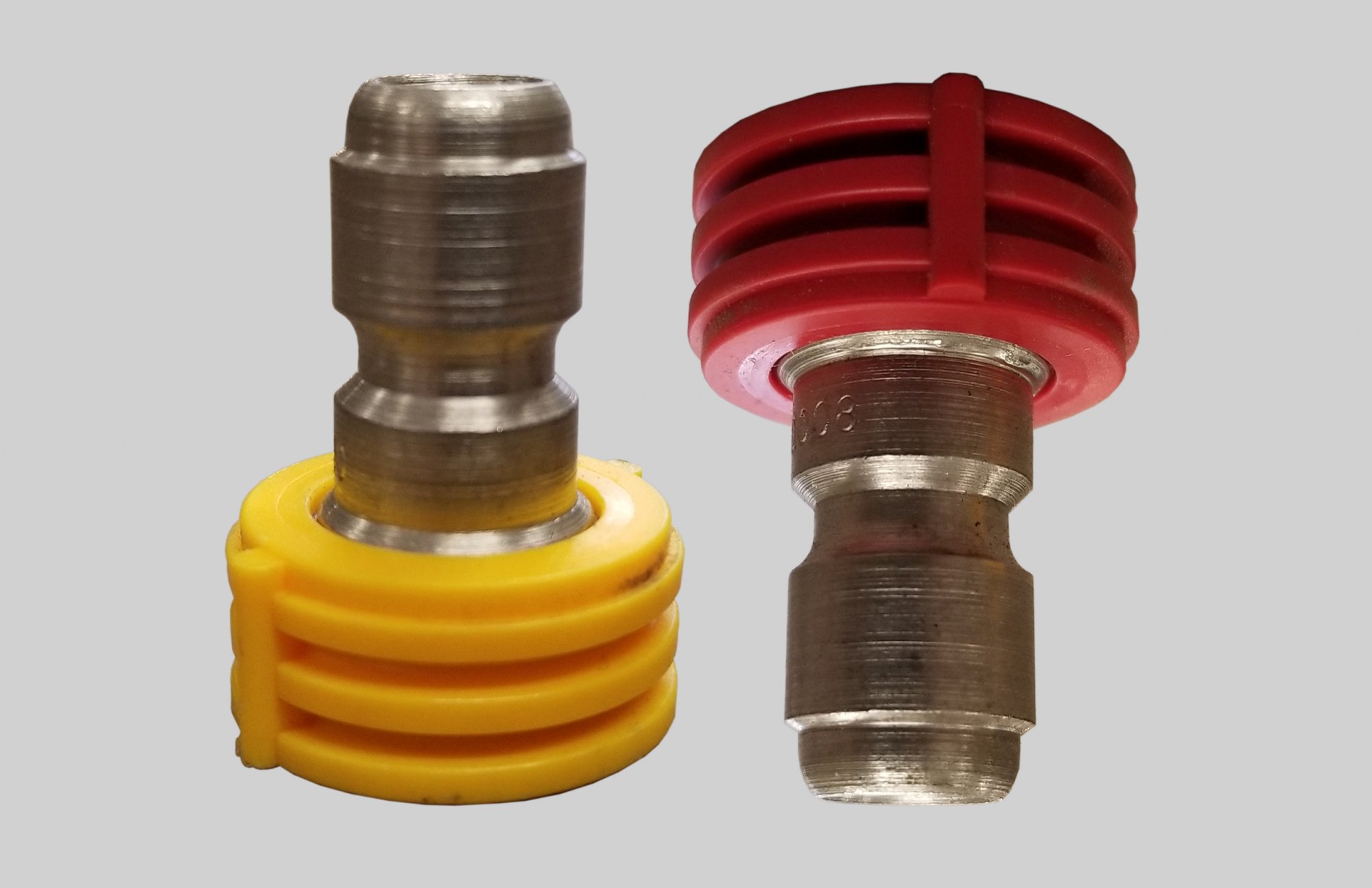

ST-900000D80 1/4" #8 Red 0° Suttner Male Quick Disc Nozzle
ST-900001580 1/4" #8 Yellow 15° Suttner Male Quick Disc Nozzle
