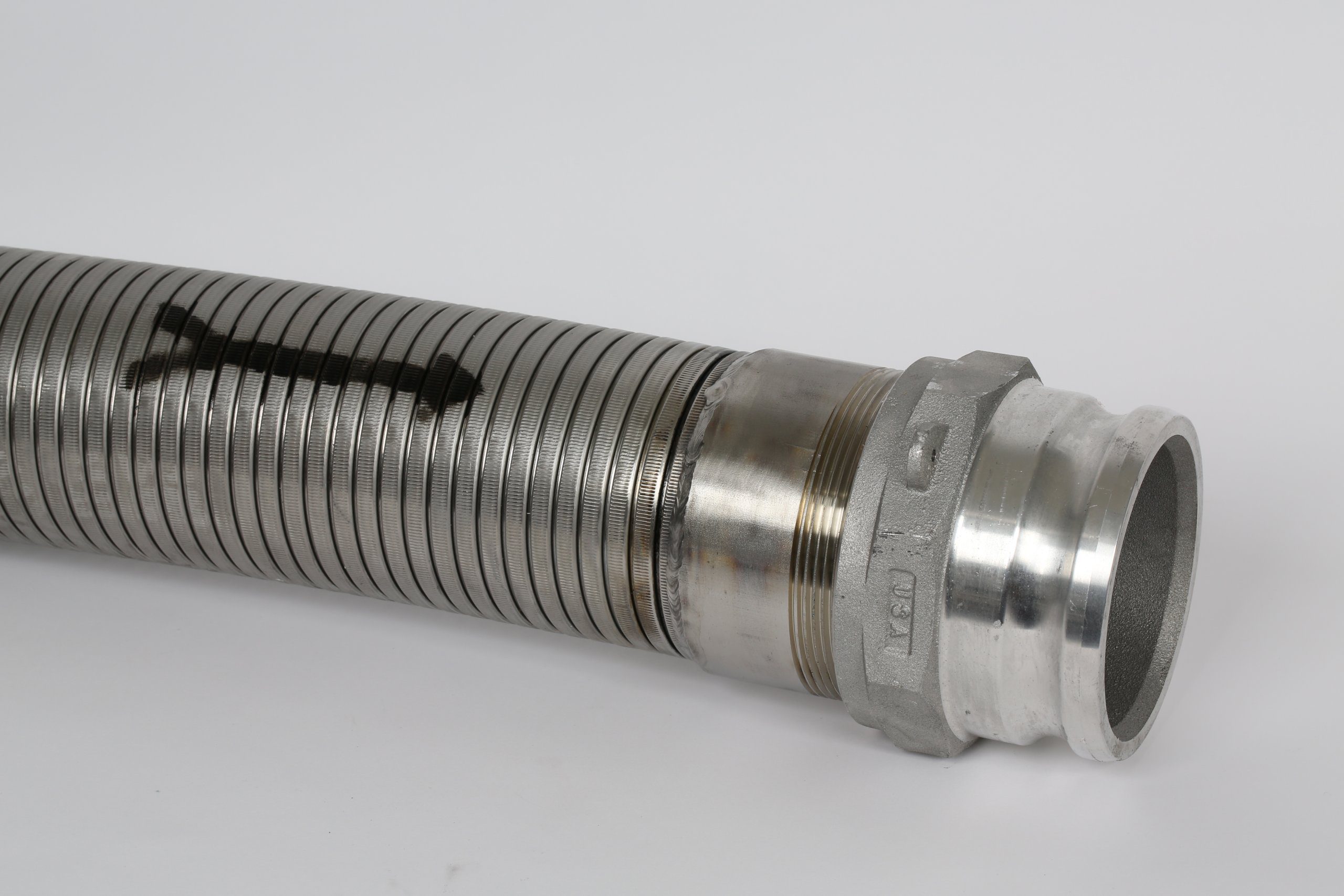

SUPERFLEX SF400 STAINLESS STEEL DRY MATERIAL HOSE

Applications: Pneumatic conveying of grains, powder, pellets, clay, ash,fertilizers, wood chips, drugs, chemicals, corrosive, hot, or
abrasive materials, and a variety of other dry products
Note: Uni-directional flow, maximum working pressure is 15 PSI

Call for price

Description

Applications:
• Pneumatic conveying of grains, powder, pellets, clay, ash, fertilizers, wood chips, drugs, chemicals, corrosive, hot, or abrasive materials, and a variety of other dry products

Tube:
• Extra smooth stainless steel liner 0.015” thickness

Packing:
• Cotton (other packings are available on special order)

Cover:
• Interlocked stainless steel 0.018” thickness

Temp Range:
• -60°F to +1800°F

Specifications

Part #

I.D

(in.)

O.D

(in.)

Working

PSI

Bend

Radius (in.)

Weight

(lbs/ft)

Standard

Length

SF400KU150 1 1/2 - 15 12.4 1.45 25
SF400KU175 1 /34 - 15 14.0 1.68 25
SF400KU200 2 - 15 16.5 1.92 25
SF400KU225 2 1/4 - 15 17.0 2.15 25
SF400KU250 2 1/2 - 15 18.1 2.37 25
SF400KU275 2 3/4 - 15 18.3 2.60 25
SF400KU300 3 - 15 20.0 2.82 25
SF400KU350 3 1/2 - 15 21.0 3.29 25
SF400KU400 4 - 15 22.5 3.75 25
SF400KU450 4 1/2 - 15 24.8 4.21 25
SF400KU500 5 - 15 26.9 4.68 25
SF400KU600 6 - 15 31.0 5.59 25
SF400KU700 7 - 15 32.5 6.52 25
SF400KU800 8 - 15 36.0 7.74 25
SF400KU1000 10 - 15 50.0 9.65 25
SF400KU1200 12 - 15 60.0 11.65 25

Additional information

Inner Diameter

1-3/4", 1-1/2", 2", 2-1/4", 2-1/2", 3", 3-1/2", 4", 4-1/2", 5", 6", 7", 8", 10", 12"
