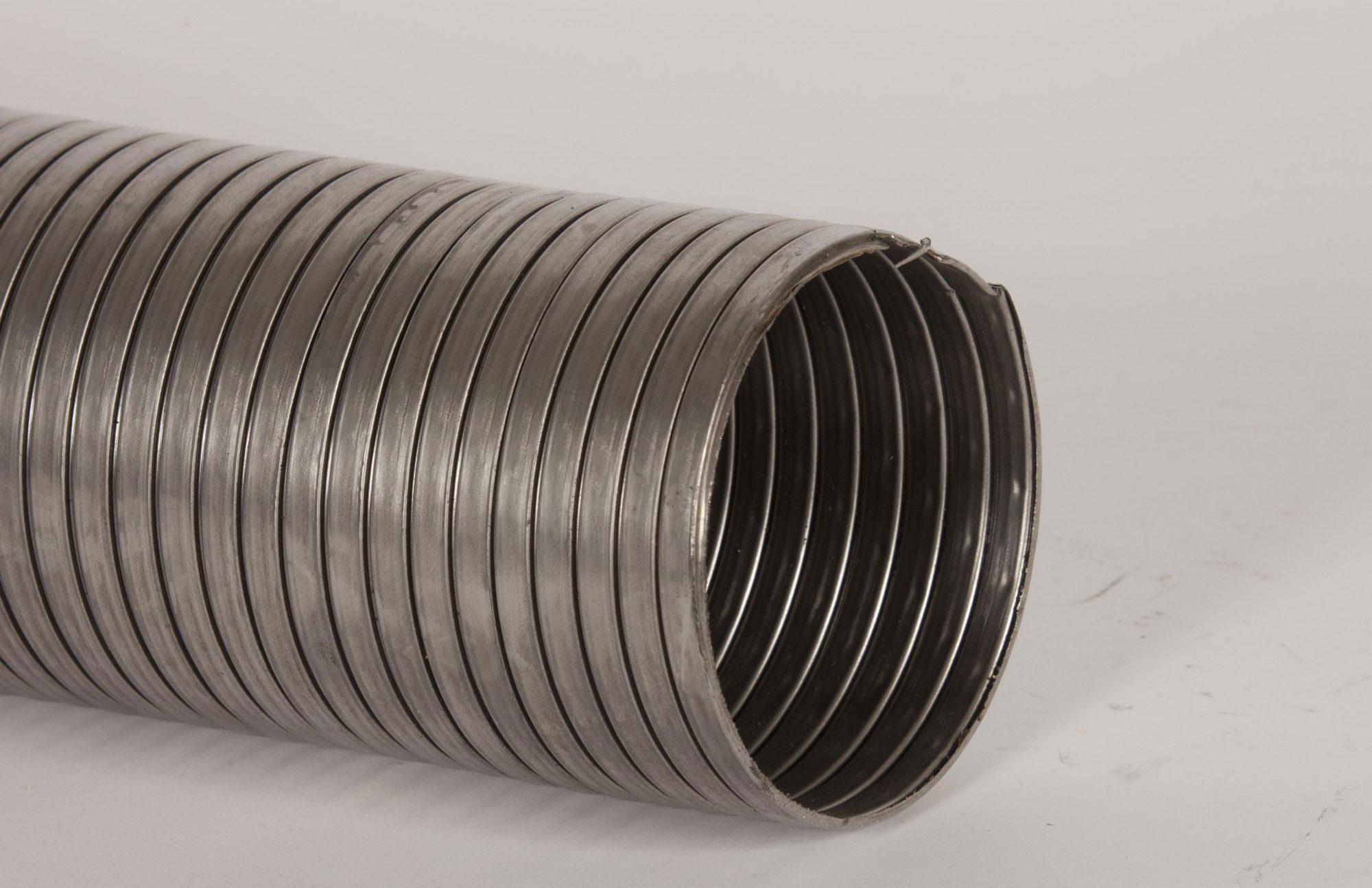

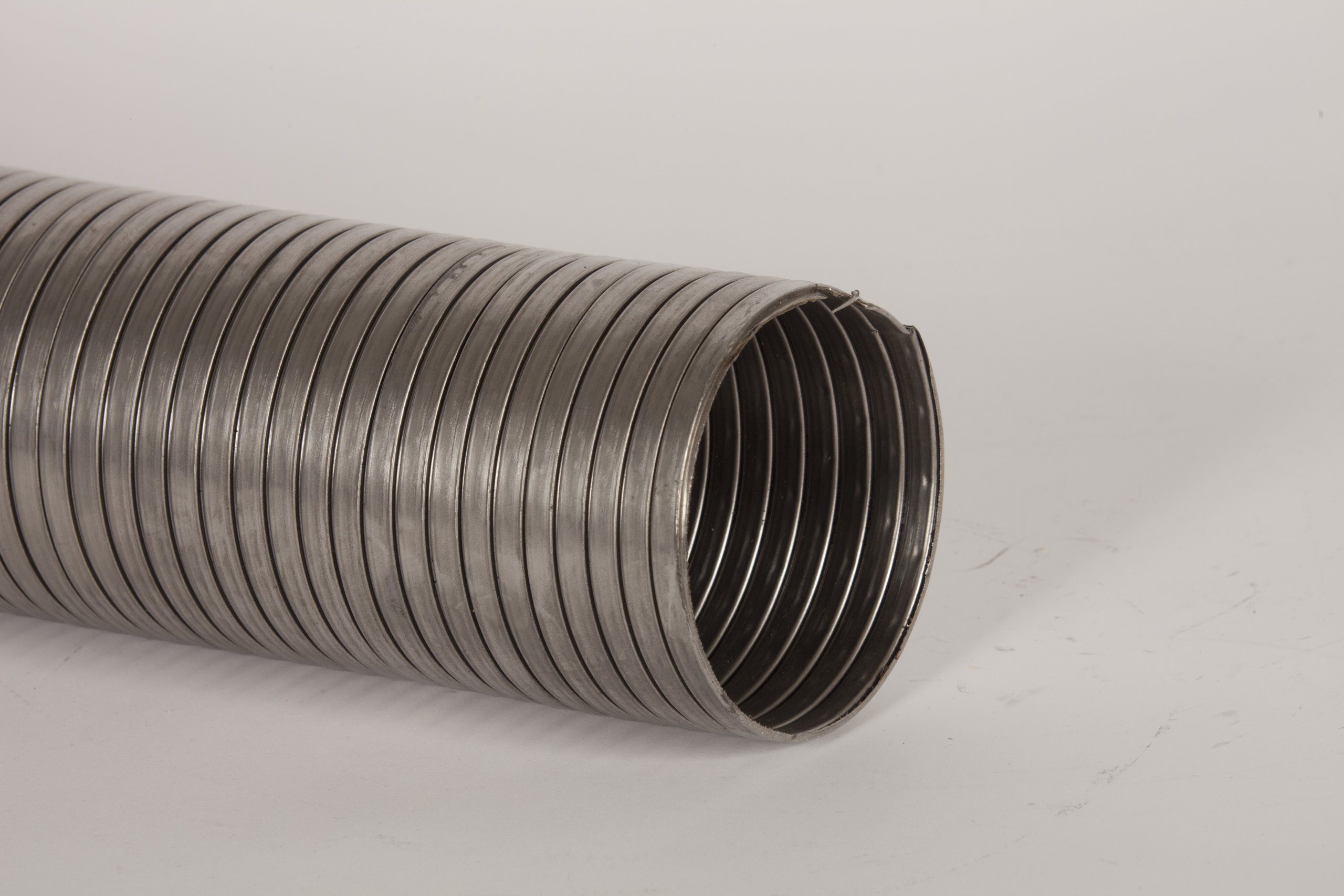

Stainless Steel Blower Hose R360S Unlined [packed]

Applications:
• For engine intake and exhaust systems, conduit, granular materials, spouts, casings, and chimney liners

Tube:
• Smooth bore interlocked stainless steel .018” strip thickness

Temp Range:
• -60°F to +400°F

Categories Metal Stripwound, Dry Bulk, Hose

Description

Applications:
• For engine intake and exhaust systems, conduit, granular materials, spouts, casings, and chimney liners

Tube:
• Smooth bore interlocked stainless steel .018” strip thickness

Temp Range:
• -60°F to +400°F

Specifications

Part #	I.D (in.)	O.D (in.)	Working PSI	Bend Radius (in.)	Weight (lbs/ft)	Standard Length
R360S150	1 1/2	-	15	7.3	.94	25,50,60
R360S175	1 3/4	-	15	9.2	1.10	25,50,60
R360S200	2	-	15	10.5	1.23	25,50,60
R360S225	2 1/4	-	15	10.8	1.40	25,50,60
R360S250	2 1/2	-	15	12.0	1.53	25,50,60
R360S275	2 3/4	-	15	12.8	1.67	25,50,60
R360S300	3	-	15	14.0	1.82	25,50,60
R360350	3 1/2	-	15	15.5	2.11	25,50,60
R360S400	4	-	15	16.5	2.40	25,50,60
R360S450	4 1/2	-	15	18.0	2.70	25,50,60
R360S500	5	-	15	20.0	2.99	25,50,60
R360S600	6	-	15	26.0	3.57	25,50,60

R360G____ For Galvanized model.

Also known as SF400KU Product Hose Part Numbers

Additional information

Inner Diameter	1-1/2", 1-3/4", 2", 2-1/4", 2-1/2", 3-1/2", 3", 4", 4-1/2", 5", 6"
