Sliding Gate Valve – Flange x Flange Drilling

Categories Tank Truck Equipment, Dry Bulk, Dry Bulk Parts, Dry Bulk Tank Truck Parts, Valves Tags ansi, drilling, flange, Gate, sliding, Stainless, Steel, ttma, Valve

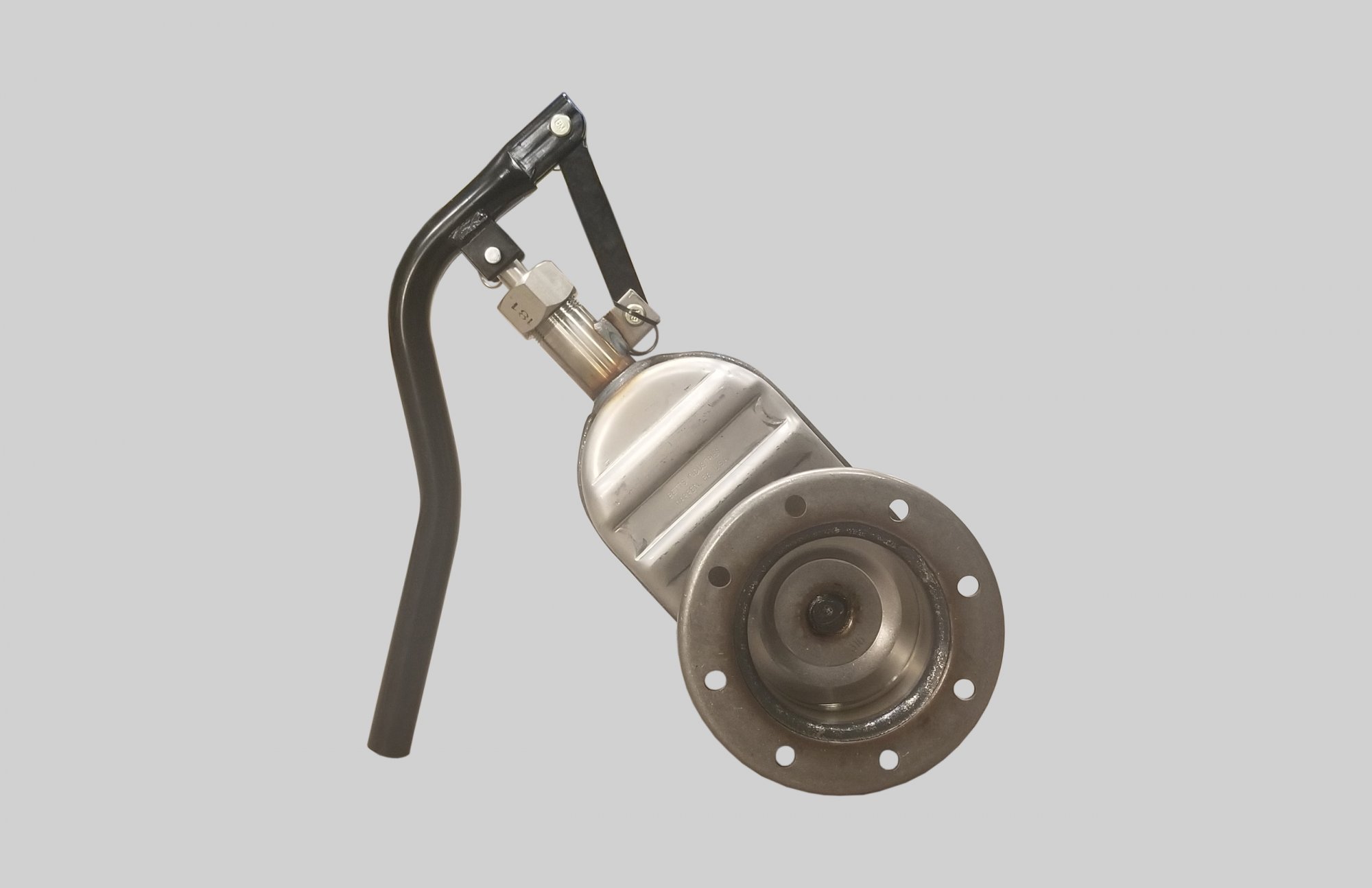

Sliding Gate Valve - Flange x Flange Drilling

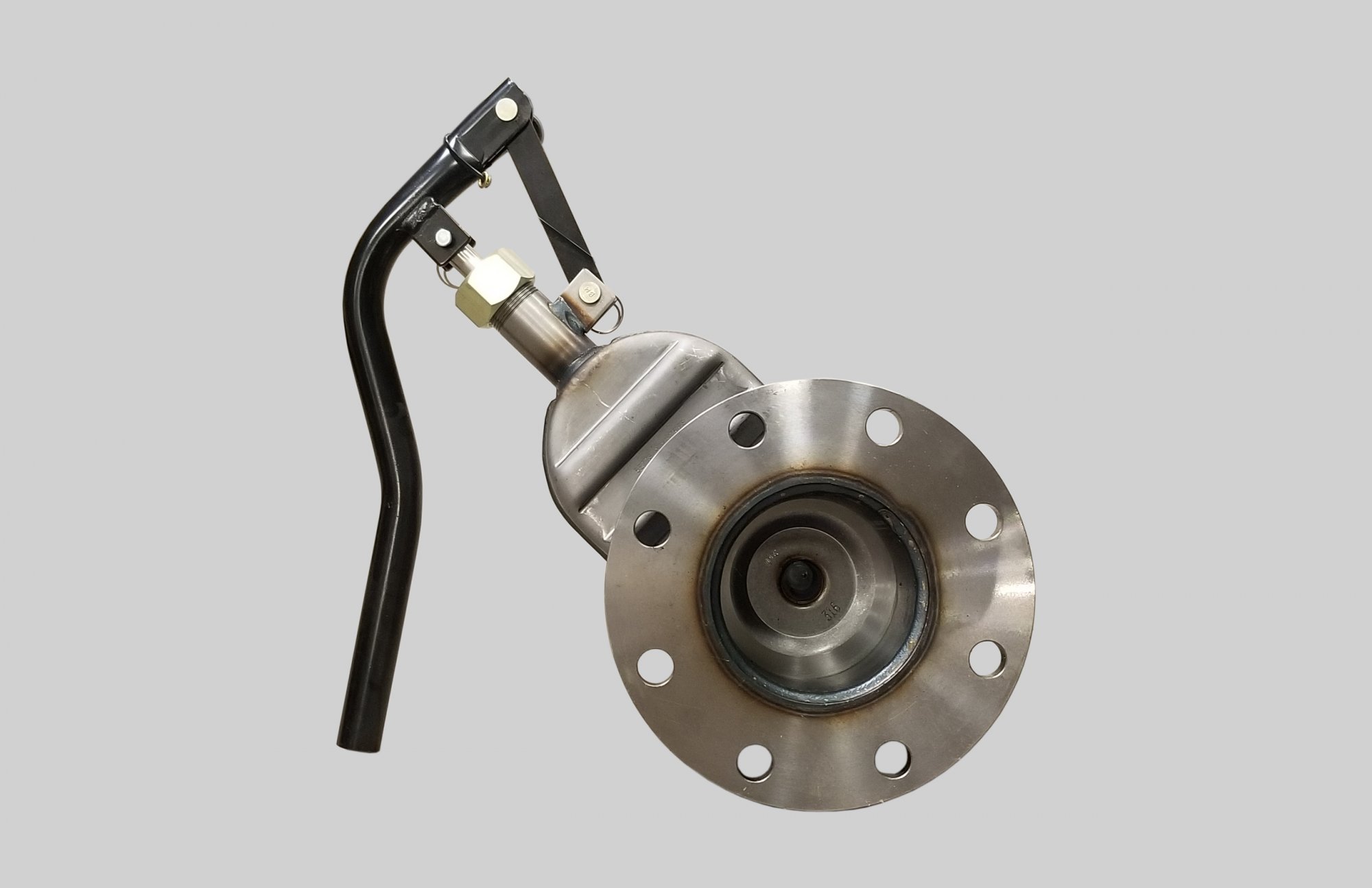

Sliding Gate Valve - Flange x Flange Drilling - Image 2

Specification

Specifications

TTMA Drilling - TTMA Flange x Flange

Part #	Size	Material	Weight (lbs)
SV903MSM	3	Steel	11.4
SV903SSM	3	316 Stainless	11.4
SV904MSM	4	Steel	14.9
SV904SSM	4	316 Stainless	14.9
SV906MSM	6	Steel	32.5
SV906SSM	6	316 Stainless	32.5

ANSI Drilling - ANSI Flange x Flange

Part #	Size	Material	Weight (lbs)
SV953MSM	3	Steel	19
SV953SSM	3	316 Stainless	19
SV954MSM	4	Steel	24.5
SV954SSM	4	316 Stainless	24.5
SV956MSM	6	Steel	46
SV956SSM	6	316 Stainless	46

TTMA Flange

Size	O.D.	B.C.	Holes	Thick	PSI
3	6 1/8	4 7/8	8 - 7/16	0.1345	50
4	7 1/8	5 7/8	8 - 7/16	0.1345	50
6	9 3/8	8 1/8	12 - 7/16	0.1345	50

ANSI Flange

Size	O.D.	B.C.	Holes	Thick	PSI
3	7 1/2	6	4 - 3/4	1/2	50
4	9	7 1/2	8 - 3/4	1/2	50
6	11	9 1/2	8 - 7/8	1/2	50
