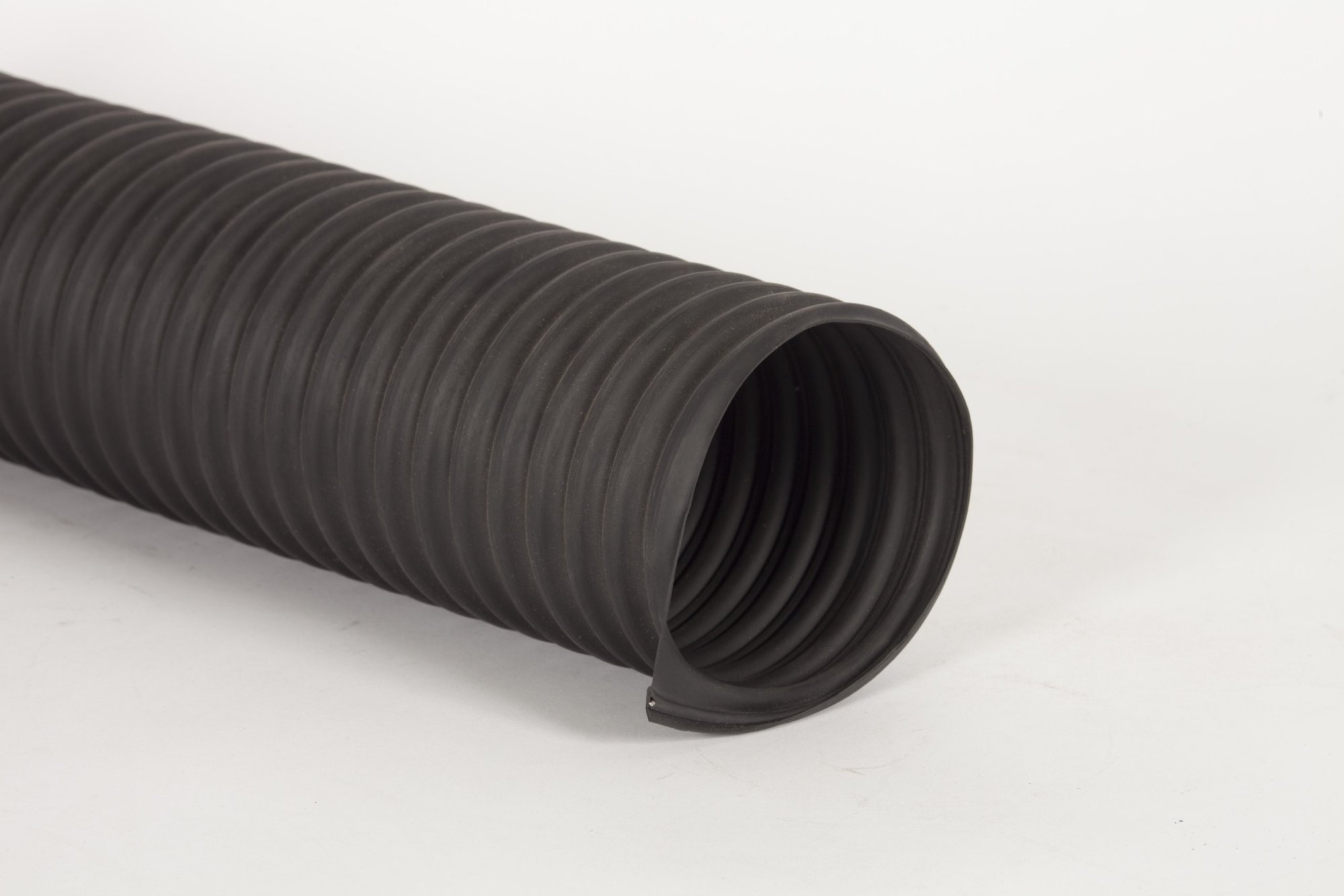

Applications:
• Most versatile ducting
• Capable of handling fumes from Methyl Ethyl Ketone, sulfuric acid, or toluene.
• Alternative colours and colour stripes available (black is standard)
Tube:
• Thermoplastic rubber
Reinforcement/Cover:
• Wire helix
Temp Range:
• -60°F to +275°F (intermittent to 300˚F)
Applications:
• Most versatile ducting
• Capable of handling fumes from Methyl Ethyl Ketone, sulfuric acid, or toluene.
• Alternative colours and colour stripes available (black is standard)
Tube:
• Thermoplastic rubber
Reinforcement/Cover:
• Wire helix
Temp Range:
• -60°F to +275°F (intermittent to 300˚F)
| Part # |
I.D (in.) |
O.D (in.) |
Working PSI |
Bend Radius (in.) |
Weight (lbs/ft) |
Standard Length |
| RFHBK150 | 1 1/2 | 1.75 | 28 | 1.75 | .22 | 25, 50 |
| RFHBK200 | 2 | 2.27 | 15 | 3.50 | .23 | 25, 50 |
| RFHBK225 | 2 1/4 | - | - | - | .28 | 25, 50 |
| RFHBK250 | 2 1/2 | 2.77 | 13 | 4.00 | .32 | 25, 50 |
| RFHBK300 | 3 | 3.27 | 10 | 6.50 | .34 | 25, 50 |
| RFHBK350 | 3 1/2 | 3.77 | 10 | 5.25 | .37 | 25, 50 |
| RFHBK400 | 4 | 4.29 | 8 | 6.50 | .49 | 25, 50 |
| RFHBK450 | 4 1/2 | - | - | - | .55 | 25, 50 |
| RFHBK500 | 5 | 5.29 | 6 | 8.00 | .59 | 25, 50 |
| RFHBK550 | 5 1/2 | - | - | - | .63 | 25, 50 |
| RFHBK600 | 6 | 6.29 | 5 | 11.5 | .67 | 25, 50 |
| RFHBK700 | 7 | 7.35 | 7 | 10 | .88 | 25, 50 |
| RFHBK800 | 8 | 8.35 | 4 | 12.00 | 1.00 | 25, 50 |
| RFHBK900 | 9 | - | - | - | 1.38 | 25, 50 |
| RFHBK1000 | 10 | 10.38 | 3 | 12.50 | 1.44 | 25, 50 |
| RFHBK1200 | 12 | 12.39 | 2 | 13.75 | 1.70 | 25, 50 |
| RFHBK1400 | 14 | 14.48 | 2 | 18.00 | 2.02 | 25, 50 |
| RFHBK1600 | 16 | 16.48 | 2 | 21.00 | 2.48 | 25, 50 |
| RFHBK1800 | 18 | 18.48 | 2 | 21.50 | 3.20 | 25, 50 |
| RFHBK2000 | 20 | 20.50 | 1 | 25.50 | 3.56 | 25, 50 |
| RFHBK2400 | 24 | 24.50 | 1 | 36.00 | 3.81 | 25, 50 |
| Diameter | 1-1/2", 2", 2-1/4", 2-1/2", 3-1/2", 3", 4", 4-1/2", 5", 5-1/2", 6", 7", 8", 9", 10", 12", 14", 16", 18", 20", 24" |
|---|
