RedWing – Continental Fuel Hose

Applications:

Redwing Fuel Oil is for transfer and delivery of fuel oil and petroleum products for home delivery, commercial and industrial service. Redwing Fuel Oil has two textile braids. The braided construction reduces kinking and twisting when reeling. The smooth cover has low drag resistance.

Specifications:

Construction Tube: Nitrile Synthetic Rubber (ORS)
Cover: Red Chemivic synthetic rubber (smooth finish) (ORS)
Reinforcement: (2) braided synthetic yarn
Coupling: Coupled assemblies available
Non Stock/ Sizes: For special production run minimum requirements
Temperature Range: -40°F to 140°F (-40°C to 60°C)

Request Quote
Email for Quote
Call for Quote
Categories , , , Tags , , , , , ,

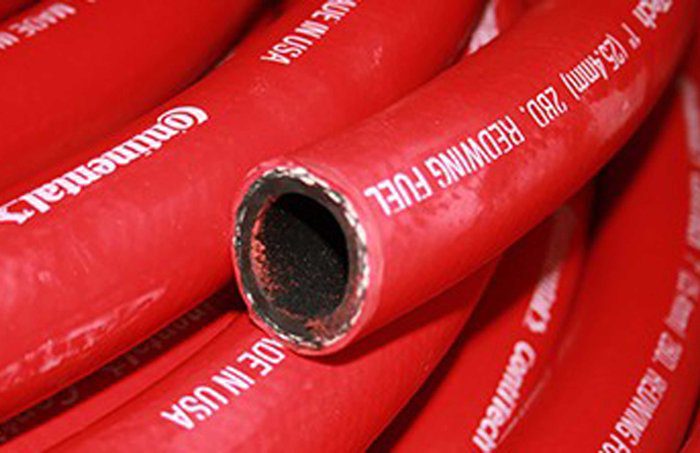

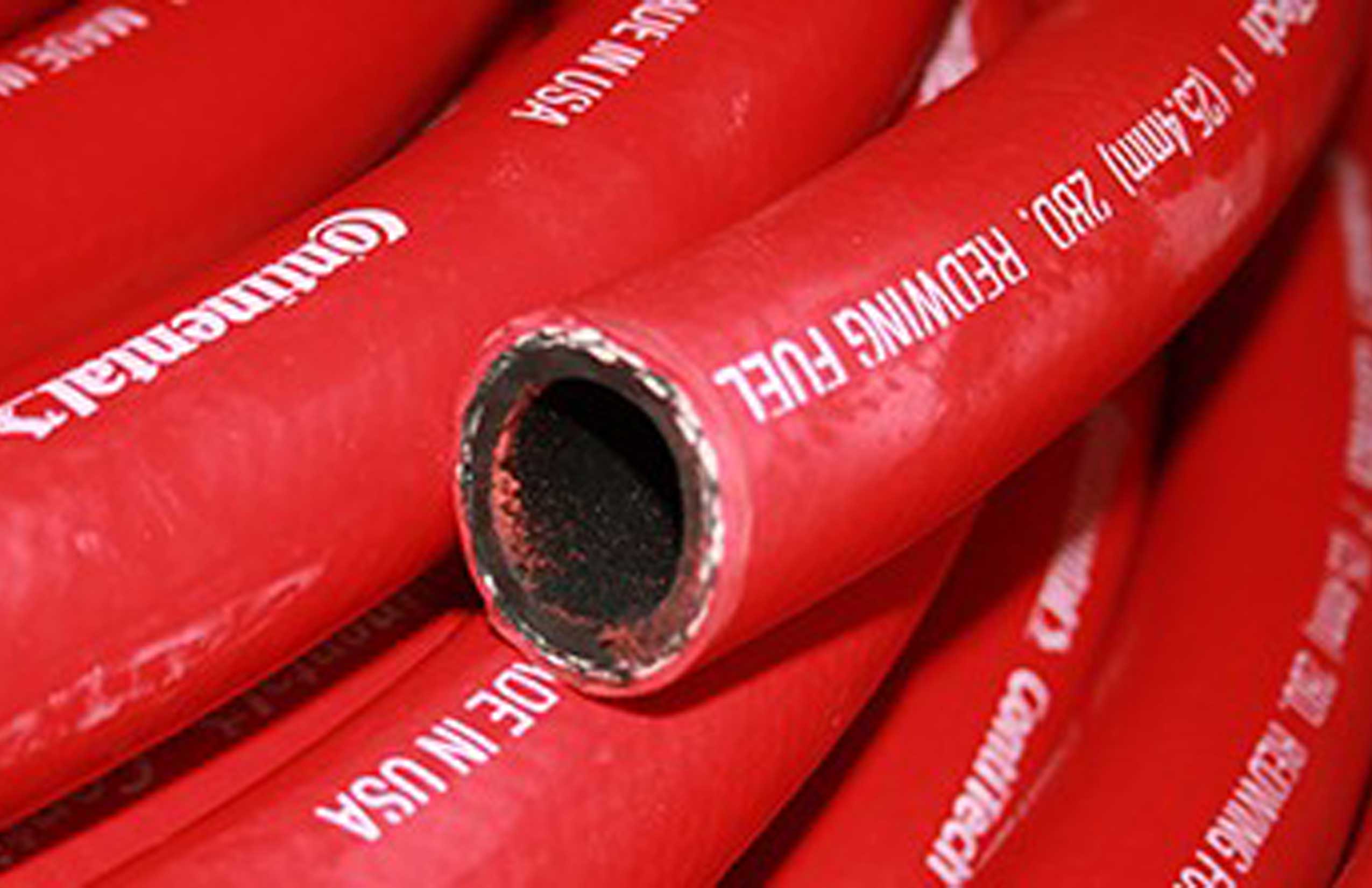

RedWing - Continental Fuel Hose

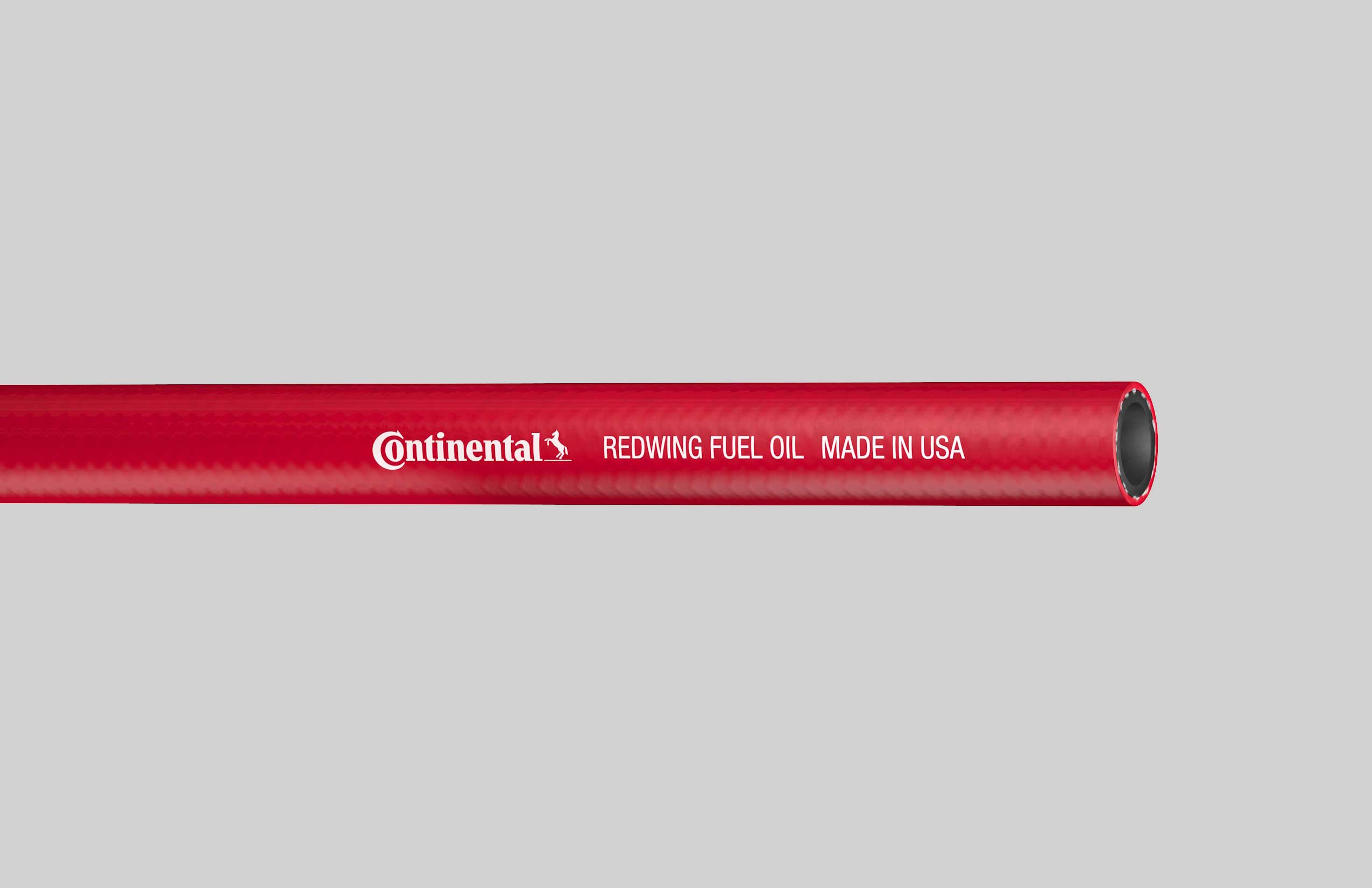

RedWing - Continental Fuel Hose - Image 2

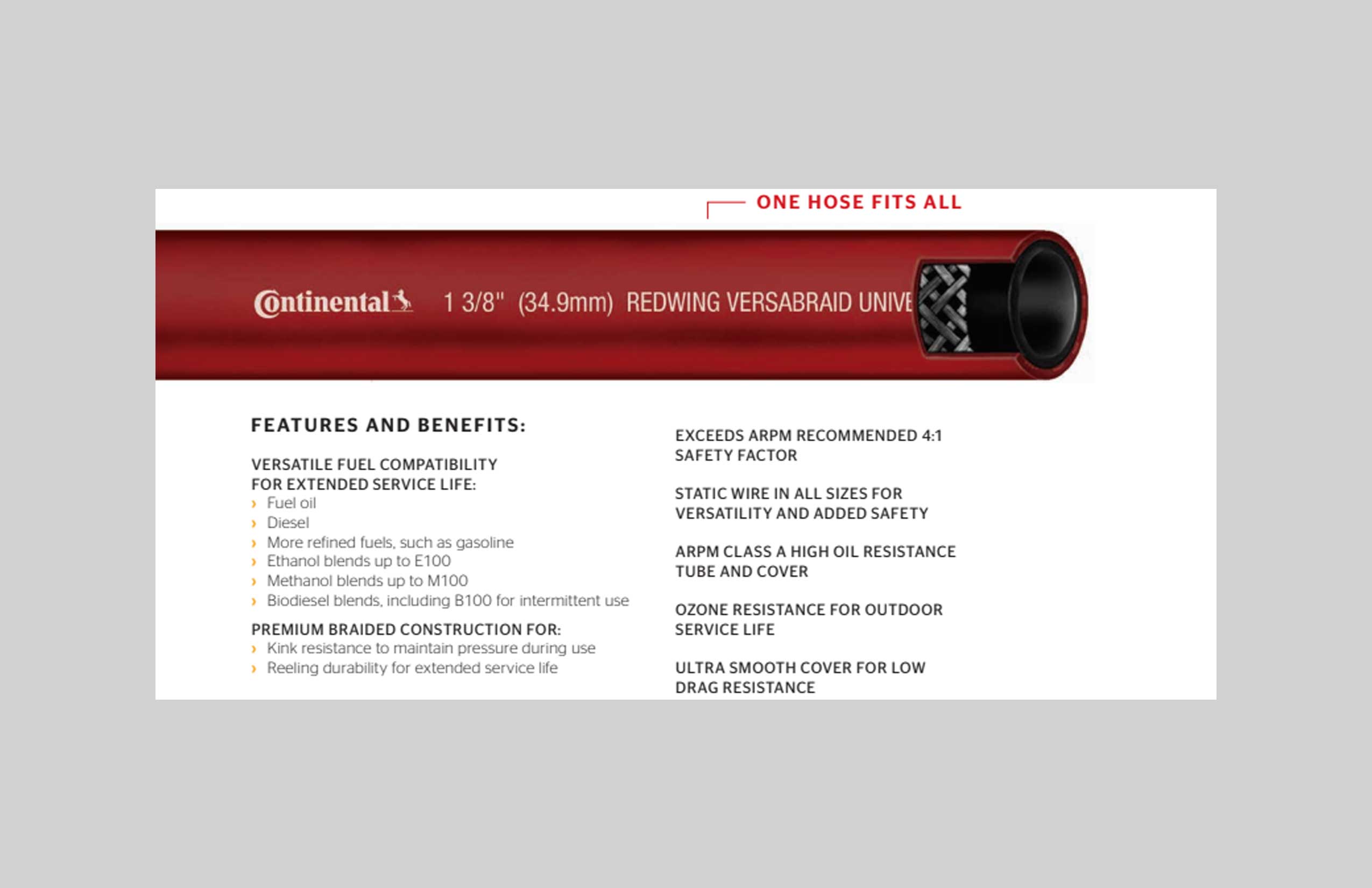

RedWing - Continental Fuel Hose - Image 3

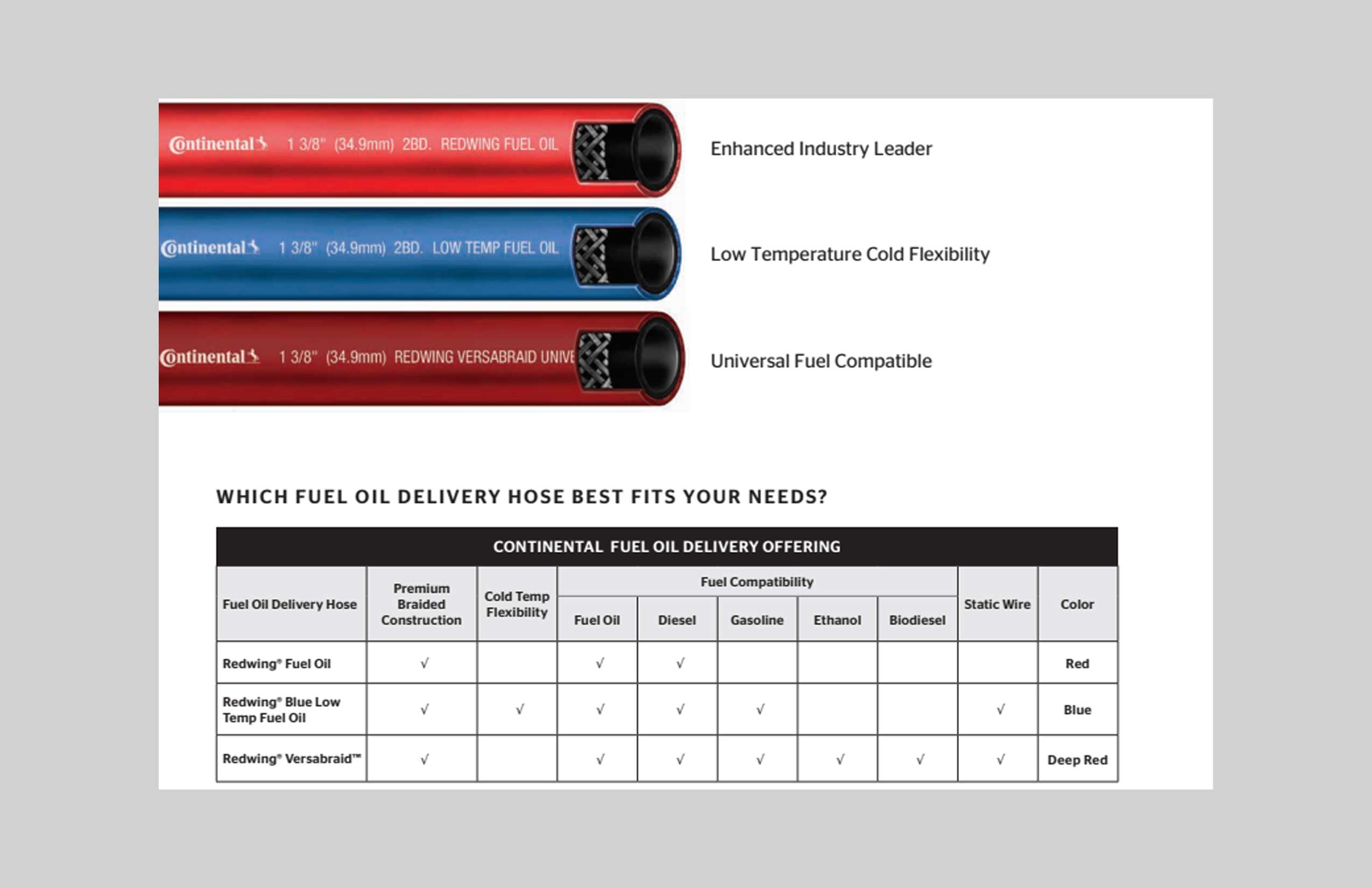

RedWing - Continental Fuel Hose - Image 4

Description

Applications:

Redwing Fuel Oil is for transfer and delivery of fuel oil and petroleum products for home delivery, commercial and industrial service. Redwing Fuel Oil has two textile braids. The braided construction reduces kinking and twisting when reeling. The smooth cover has low drag resistance.

Specifications:

Construction Tube: Nitrile Synthetic Rubber (ORS)
Cover: Red Chemivic synthetic rubber (smooth finish) (ORS)
Reinforcement: (2) braided synthetic yarn
Coupling: Coupled assemblies available
Non Stock/ Sizes: For special production run minimum requirements
Temperature Range: -40°F to 140°F (-40°C to 60°C)

Specifications

Technical Data - Imperial:

Part #

Hose I.D. (In)

Hose O.D.(In)

Weight (Lbs/Ft)

Working Pressure (PSI)
20021667 1 1.50 0.57 250
20021681 1-1/4 1.80 0.65 250
20021708 1-3/8 1.88 0.70 250
20021735 1-1/2 2.10 0.92 150

Technical Data - Metric:

Part #

Hose I.D. (mm)

Hose O.D.(mm)

Weight (kg/m)

Working Pressure (MPa)
20021667 25.40 38.10 0.850 1.72
20021681 31.80 45.70 0.970 1.72
20021708 34.90 47.80 1.040 1.72
20021735 38.10 53.30 1.370 1.03

Assemblies:

Part #

Hose I.D. (In)

Length (Ft)

Description
CRWHD100X200 1 200' Hose crimped with Static Wire and MxF Fittings Attached
CRWHD125X150MXF-SW 1-1/4 150' Hose crimped with Static Wire and MxF Fittings Attached
CRWHD138X150MXF-SW 1-3/8 150' Hose crimped with Static Wire and MxF Fittings Attached
CRWHD138X150MXM-SW 1-3/8 150' Hose crimped Static Wire and MxM Fittings Attached

Other options available upon request.
