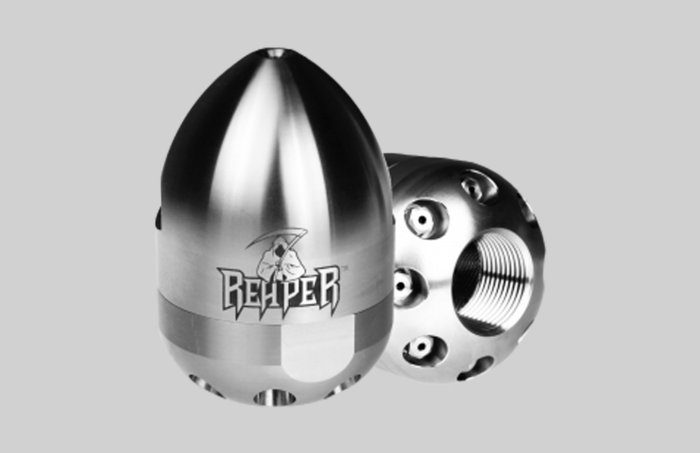

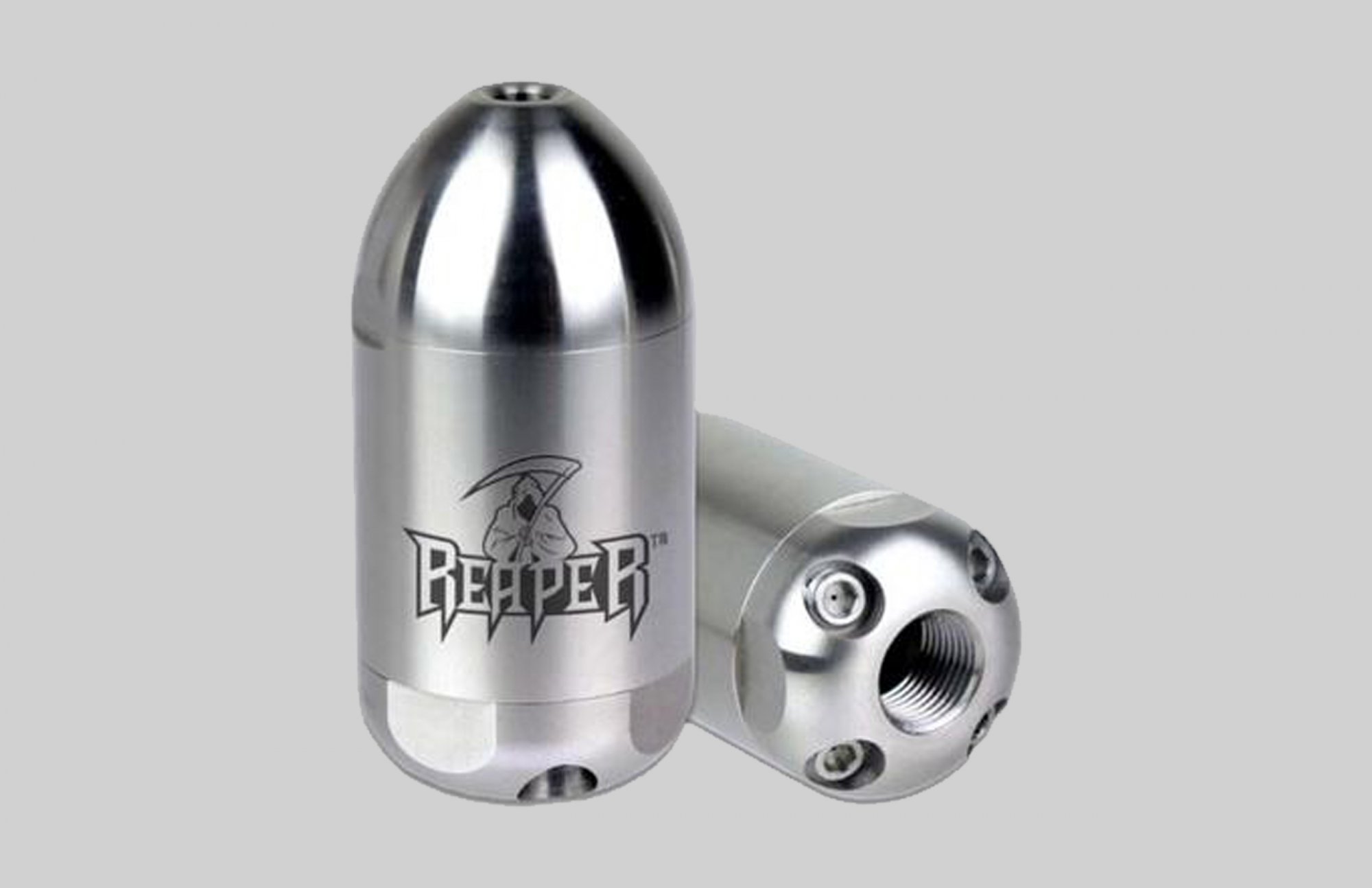

Name: Reaper High Pressure Nozzle
SKU: 3993
Availability: InStock

Description

Minimum Inlet Pressure: 1500 PSI (103 Bar)

Maximum Inlet Pressure: 4000 PSI (276 Bar)

Maximum Water Temperature: 180°F (+82°C)

Housing Material: Stainless Steel

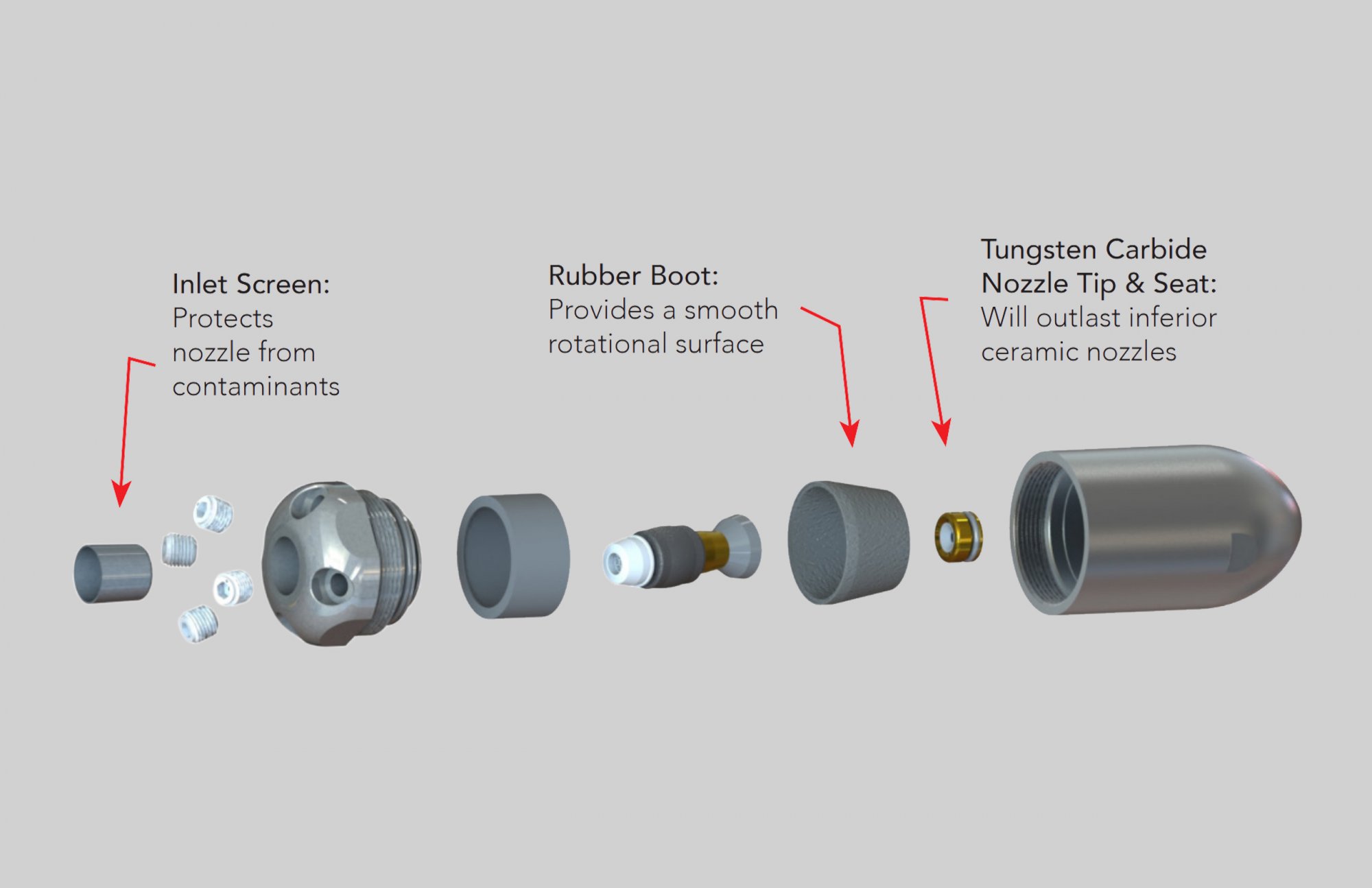

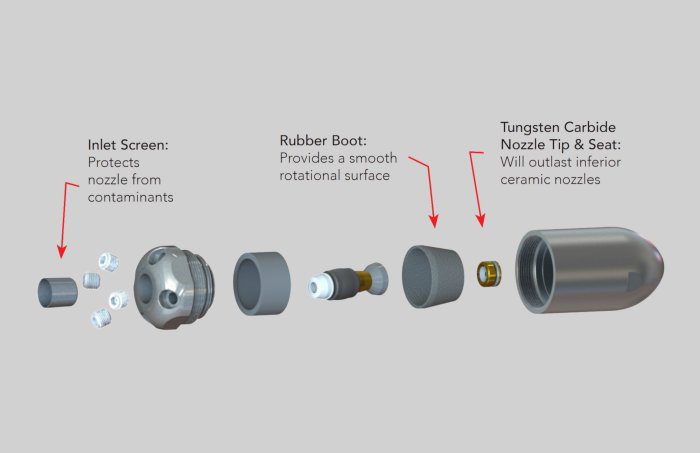

Nozzle Tip & Seat Material: Tungsten Carbide

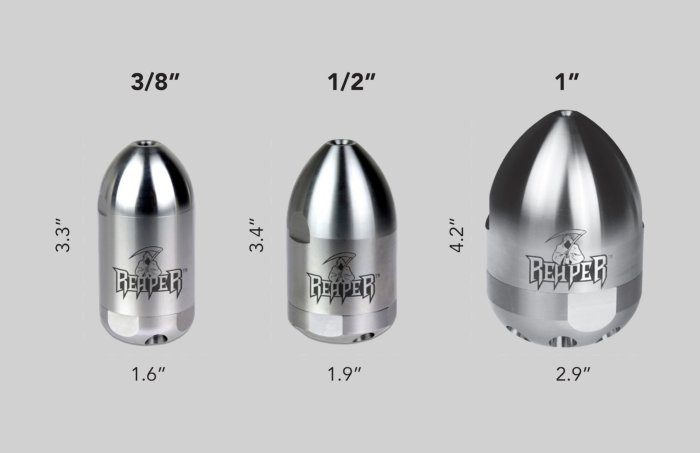

Inlet Connection Thread: 3/8″ or 1/2″ FNPT
1/4″ & 1″ NOW AVAILABLE!

Front (Rotating) Spray Angle: 24 or 30-Degrees

Rear (Static) Spray Angle: 20-Degrees

Specifications

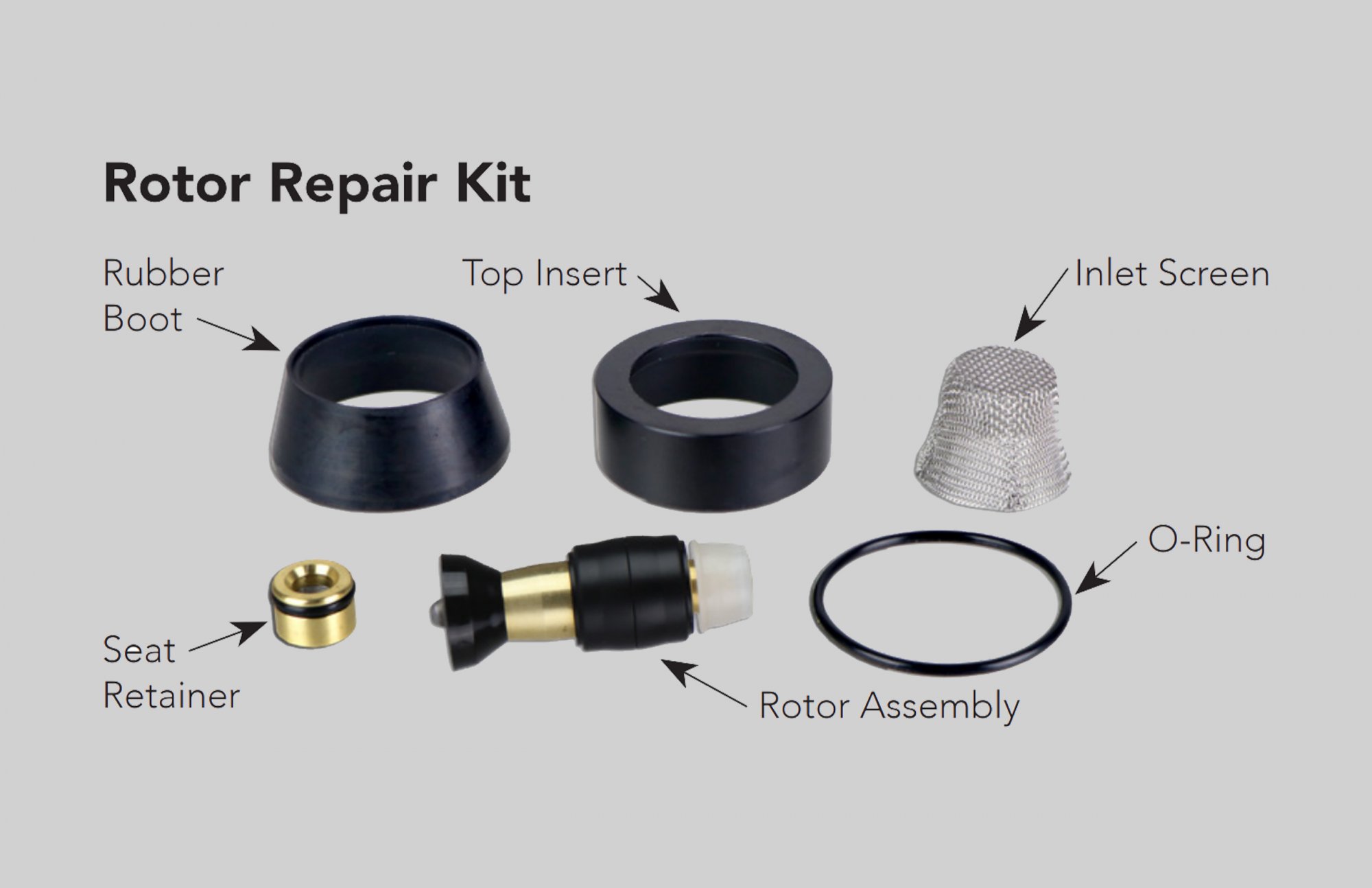

Nozzle Size	Inlet Size	Nozzle Part Number	Rotor Repair Kit Part Number	Rear Jet Repair Kit	Flow Rate Chart (GPM)
Nozzle Size	Inlet Size	Nozzle Part Number	Rotor Repair Kit Part Number	Rear Jet Repair Kit	1500 PSI	2000 PSI	2500 PSI	3000 PSI	3500 PSI	4000 PSI
6.0	3/8" 24°	1003031-060	1003029-060	1003030-060	3.7 GPM	4.2 GPM	4.7 GPM	5.2 GPM	5.6 GPM	6.0 GPM
9.0	3/8" 24°	1003031-090	1003029-090	1003030-090	5.5 GPM	6.4 GPM	7.1 GPM	7.8 GPM	8.4 GPM	9.0 GPM
12.0	3/8" 24°	1003031-120	1003029-1224	1003030-120	7.3 GPM	8.5 GPM	9.5 GPM	10.4 GPM	11.2 GPM	12.0 GPM
12.0	1/2" 30°	1003032-120	1003029-1230	1003030-120	7.3 GPM	8.5 GPM	9.5 GPM	10.4 GPM	11.2 GPM	12.0 GPM
15.0	1/2" 30°	1003032-150	1003029-150	1003030-150	9.2 GPM	10.6 GPM	11.9 GPM	13.0 GPM	14.0 GPM	15.0 GPM
18.0	1/2" 30°	1003032-180	1003029-180	1003030-180	11.0 GPM	12.7 GPM	14.2 GPM	15.6 GPM	16.8 GPM	18.0 GPM
24.0	1/2" 30°	1003032-240	1003029-180	1003030-240	14.7 GPM	17.0 GPM	19.0 GPM	20.8 GPM	22.4 GPM	24.0 GPM
40.0	1" 30°	1003155-400	1003029-180	1003163-400	28.2 GPM	32.5 GPM	36.4 GPM	39.8 GPM	-	-
60.0	1" 30°	1003155-600	1003029-180	1003163-600	42.9 GPM	49.5 GPM	55.3 GPM	60.6 GPM	-	-
80.0	1" 30°	1003155-800	1003029-180	1003163-800	52.7 GPM	60.8 GPM	68.0 GPM	74.5 GPM	-	-

Orifice Size	#6.0, #9.0, #12.0, #12.0, #15.0, #18.0, #24.0, #40.0, #60.0, #80.0
