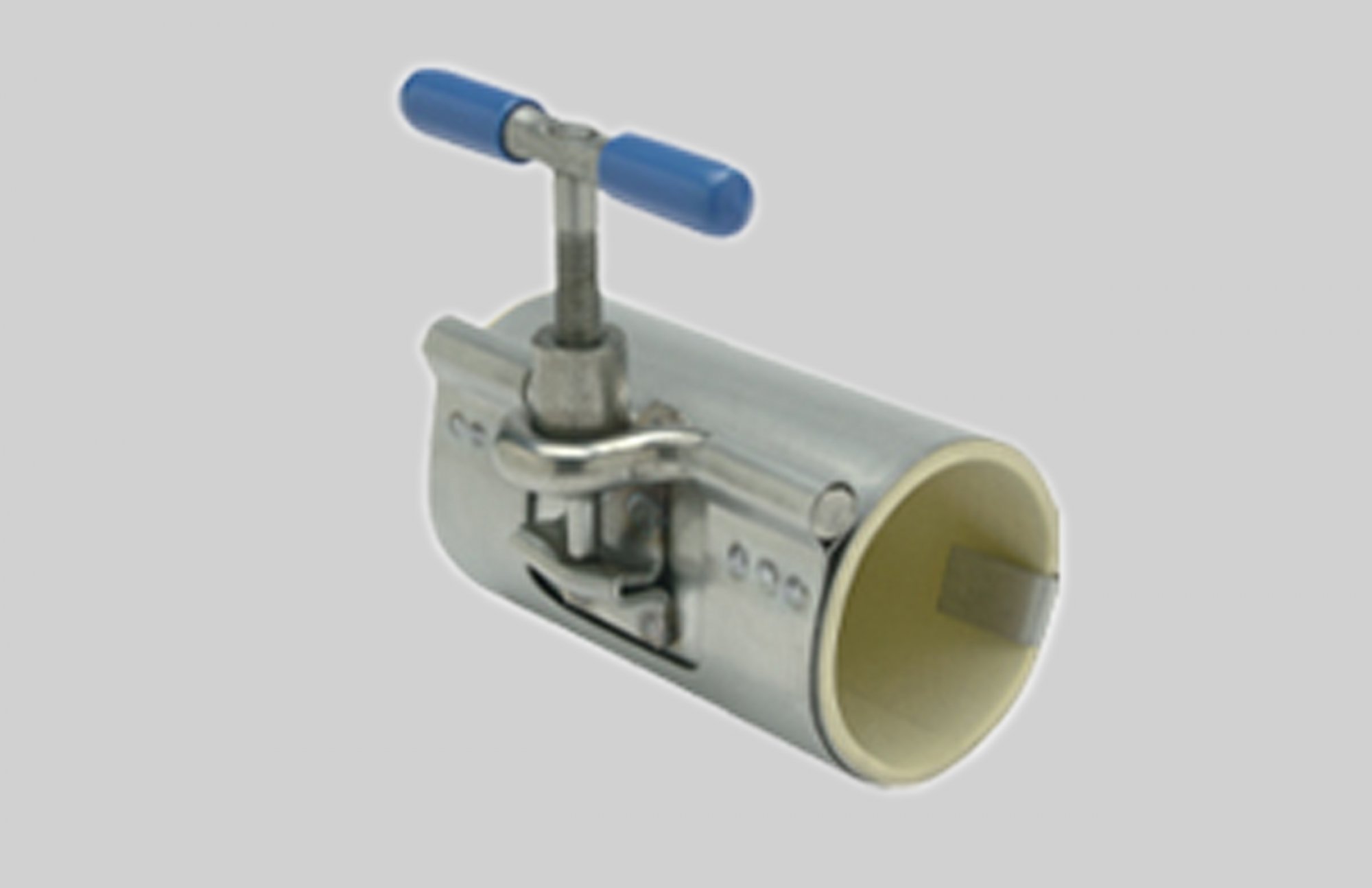

Quickon II Coupler – Morris Coupling

Quick and efficient installation or removal of pneumatic and vacuum conveying lines with a twist of the wrist – no tools required. Application provides:

  • Fast take down and reassembly of lines
  • Reduced coupler weight
  • All stainless-steel construction

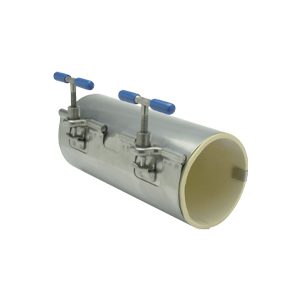

  • Sizes range from 1-1/2″ through 12-3/4″ O.D. in standard 4″ lengths. Dual Quickons are 9-1/2″ long
  • Standard gasket is food-grade gum rubber; silicone available
  • Positive locking system

Ask us about Double Quickon II Coupler – Morris Couplings.

Description

Quick and efficient installation or removal of pneumatic and vacuum conveying lines with a twist of the wrist – no tools required. Application provides:

  • Fast take down and reassembly of lines
  • Reduced coupler weight
  • All stainless-steel construction
  • Sizes range from 1-1/2″ through 12-3/4″ O.D. in standard 4″ lengths. Dual Quickons are 9-1/2″ long
  • Standard gasket is food-grade gum rubber; silicone available
  • Positive locking system

Ask us about Double Quickon II Coupler – Morris Couplings.

Specifications

O.D. Size (in.)

Code No. Wt  (lbs.) Part #
1.900 1901 .65 2401901G2
3.000 3001 .88 2403001G2FG / 2403001G2FGMB
4.000 4001 1.25 2404001G2FG
4.250 4251 1.32 2404251G2
