PPV VENT

  • Dual Purpose Vent
  • Roll Over Protection
  • Compact Design
  • Interior Mount

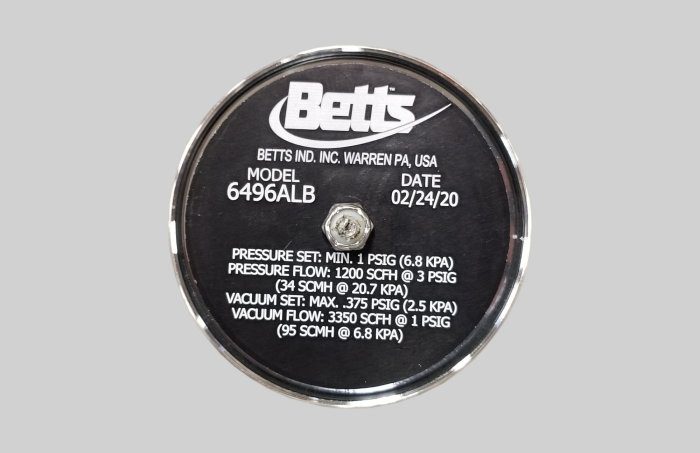

A normal vent designed for use on MC306 & DOT406 cargo tanks. Model 6496 has a pressure setting of “no less than 1 PSIG” and a vacuum setting “no more than 6 ounces” which allows efficient recovery of vapors during closed system loading and off-loading. Unique roll over protection retains product at any attitude of rollover. Vent is flow tested and marked.

Note: While normal vents provide limited vapor venting during loading/unloading, it is recommended that positive vapor valves (typically air operated) be provided when loading/unloading with the manhole closed. If positive vapor valves are not used, insure normal vent is functioning properly or open manhole cover before beginning loading/unloading. Failure to do so may result in head reversals or other tank failure.

Description

  • Dual Purpose Vent
  • Roll Over Protection
  • Compact Design
  • Interior Mount

A normal vent designed for use on MC306 & DOT406 cargo tanks. Model 6496 has a pressure setting of “no less than 1 PSIG” and a vacuum setting “no more than 6 ounces” which allows efficient recovery of vapors during closed system loading and off-loading. Unique roll over protection retains product at any attitude of rollover. Vent is flow tested and marked.

Note: While normal vents provide limited vapor venting during loading/unloading, it is recommended that positive vapor valves (typically air operated) be provided when loading/unloading with the manhole closed. If positive vapor valves are not used, insure normal vent is functioning properly or open manhole cover before beginning loading/unloading. Failure to do so may result in head reversals or other tank failure.

Specifications

Description Part # Body Mat'l

Set Pressure**

Pressure          Vacuum
(PSIG)              (PSIG)

Flow Capacity

Out-                           In-
 breathing                breathing

Dimensions

A              B              C               D
                                                    (Threads)

Weight (lbs).

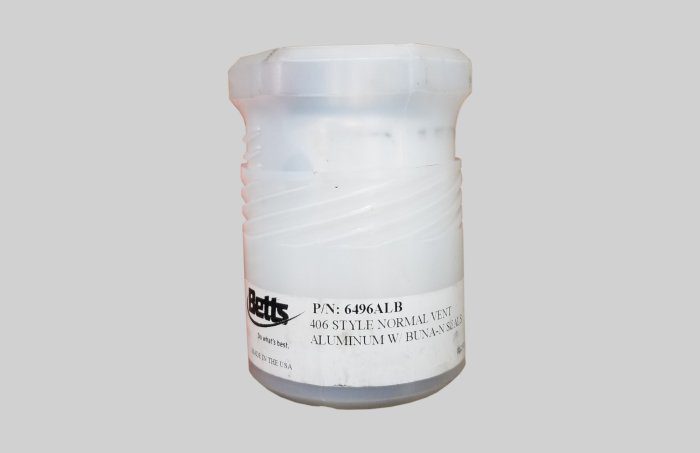

PPV DOT 406 Normal Vent 6496ALB Aluminum 1.0                    0.25
to                        to
1.5                  0.375
1,200 CFH          3,350 CFH
@ 3 PSI                  @ 1 PSI
.72*  /   4.16*   /  2.75*   /  1⅝-12UN 1.0lb.

Part # 6238ALV - PPV VENT WITH VITON

Letter Mat'l Temp Range
B Buna-N -40°F to +220°F
V Viton -20°F to +400°F
EP EPDM (Black) -40°F to +260°F

* Add letters to part number to designate seal material.

** Proper maintenance is required to ensure effective performance of normal vent. Dust, dirt, or residue will reduce the ability of the vent to hold required set-pressure.
