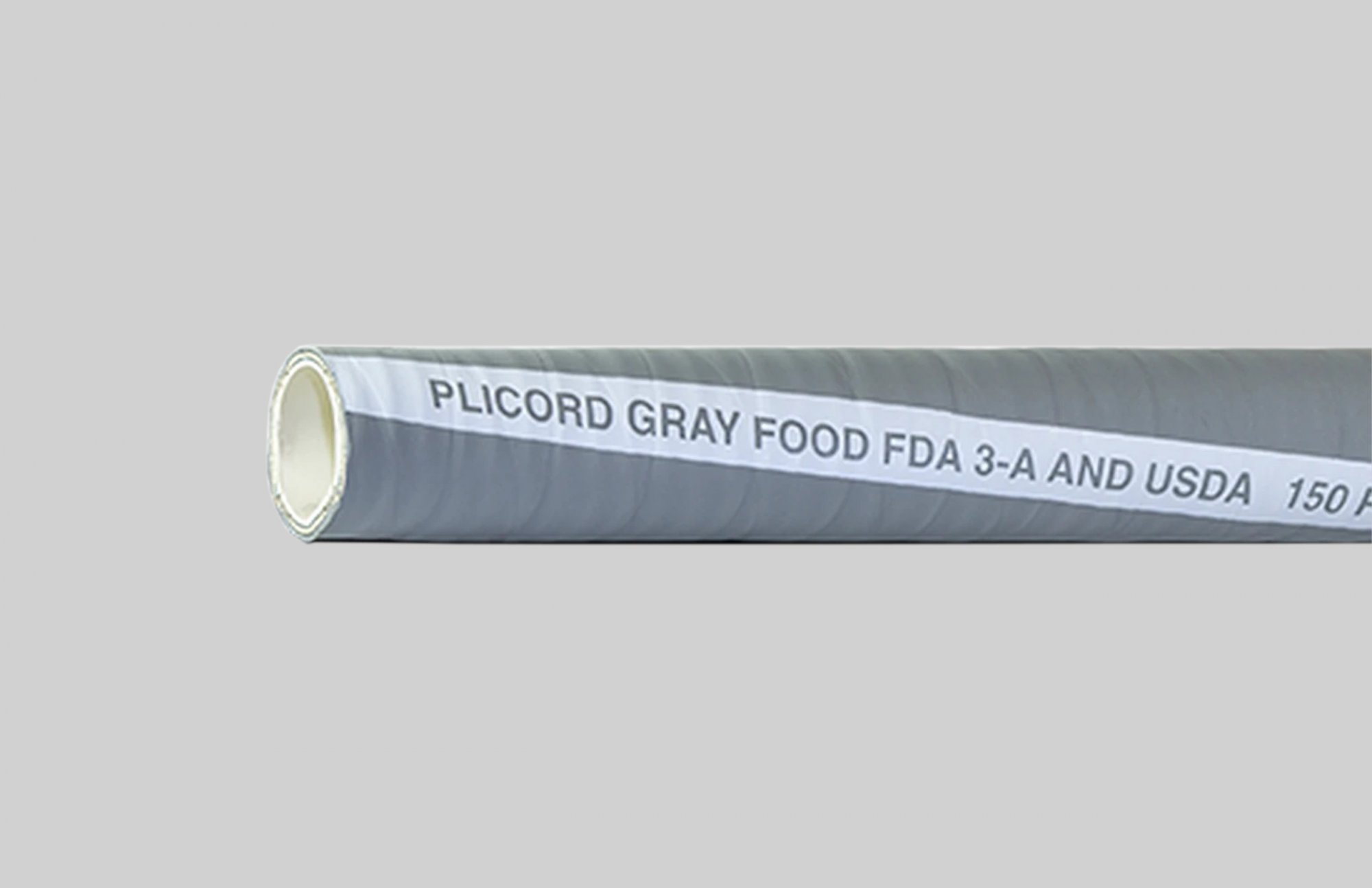

Plicord Gray Food Hose

Applications

Gray Food is for both dry food transfer and liquid transfer. A flexible hose for gravity flow, pressure, or suction service and in-plant service, transferring edibles from tank truck.

Specifications

  • Construction Tube: Chemivicâ„¢ Synthetic Rubber (FDA/USDA Compliant & Conforms to 3-A Sanitary Standard 18-03)
  • Cover: Chemivic Synthetic Rubber (wrapped impression)
  • Reinforcement: Spiral-plied Synthetic Fabric with Galvanized Wire
  • Non Stock / Sizes: For special production run minimum requirements, Contact Customer Service
  • Temperature Range: -25°F to 230°F (-32°C to 110°C)
  • Order Codes: 549-834
  • Packaging: 100ft, Coiled, Poly-Wrapped
Request Quote
Email for Quote
Call for Quote
Categories , Tags , , ,
Plicord Gray Food Hose

Description

Applications

Gray Food is for both dry food transfer and liquid transfer. A flexible hose for gravity flow, pressure, or suction service and in-plant service, transferring edibles from tank truck.

Specifications

  • Construction Tube: Chemivicâ„¢ Synthetic Rubber (FDA/USDA Compliant & Conforms to 3-A Sanitary Standard 18-03)
  • Cover: Chemivic Synthetic Rubber (wrapped impression)
  • Reinforcement: Spiral-plied Synthetic Fabric with Galvanized Wire
  • Non Stock / Sizes: For special production run minimum requirements, Contact Customer Service
  • Temperature Range: -25°F to 230°F (-32°C to 110°C)
  • Order Codes: 549-834
  • Packaging: 100ft, Coiled, Poly-Wrapped

Specifications

Imperial Technical Data:

Part #

Color

I.D. (in.)

O.D. (in.)

Weight (lbs/ft)

Working Pressure (PSI)

Bend Radius (in.)

Vacuum HG (in.)

Length (ft)
GYEFFH100/GGF100 Gray 1 1.45 0.58 150 3 29 100
GYEFFH150/GGF150 Gray 1-1/2 1.97 0.85 150 4 29 100
GYEFFH200/GGF200 Gray 2 2.59 1.42 150 5 29 100
GYEFFH250/GGF250 Gray 2-1/2 3.09 1.77 150 6 29 100
GYEFFH300/GGF300 Gray 3 3.59 2.10 150 7 29 100
GYEFFH400/GGF400 Gray 4 4.68 3.19 150 10 29 100

Metric Technical Data:

Part #

Color

I.D. (mm)

O.D. (mm)

Weight (kg/m)

Working Pressure (MPa)

Bend Radius (mm)

Vacuum HG (mm)
GGF100 Gray 25.40 36.70 0.86 1.03 75 737
GGF150 Gray 38.10 50.00 1.26 1.03 102 737
GGF200 Gray 50.80 65.80 2.11 1.03 114 737
GGF250 Gray 63.50 78.50 2.63 1.03 152 737
GGF300 Gray 76.20 91.20 3.13 1.03 178 737
GGF400 Gray 101.60 118.90 4.75 1.03 254 737
