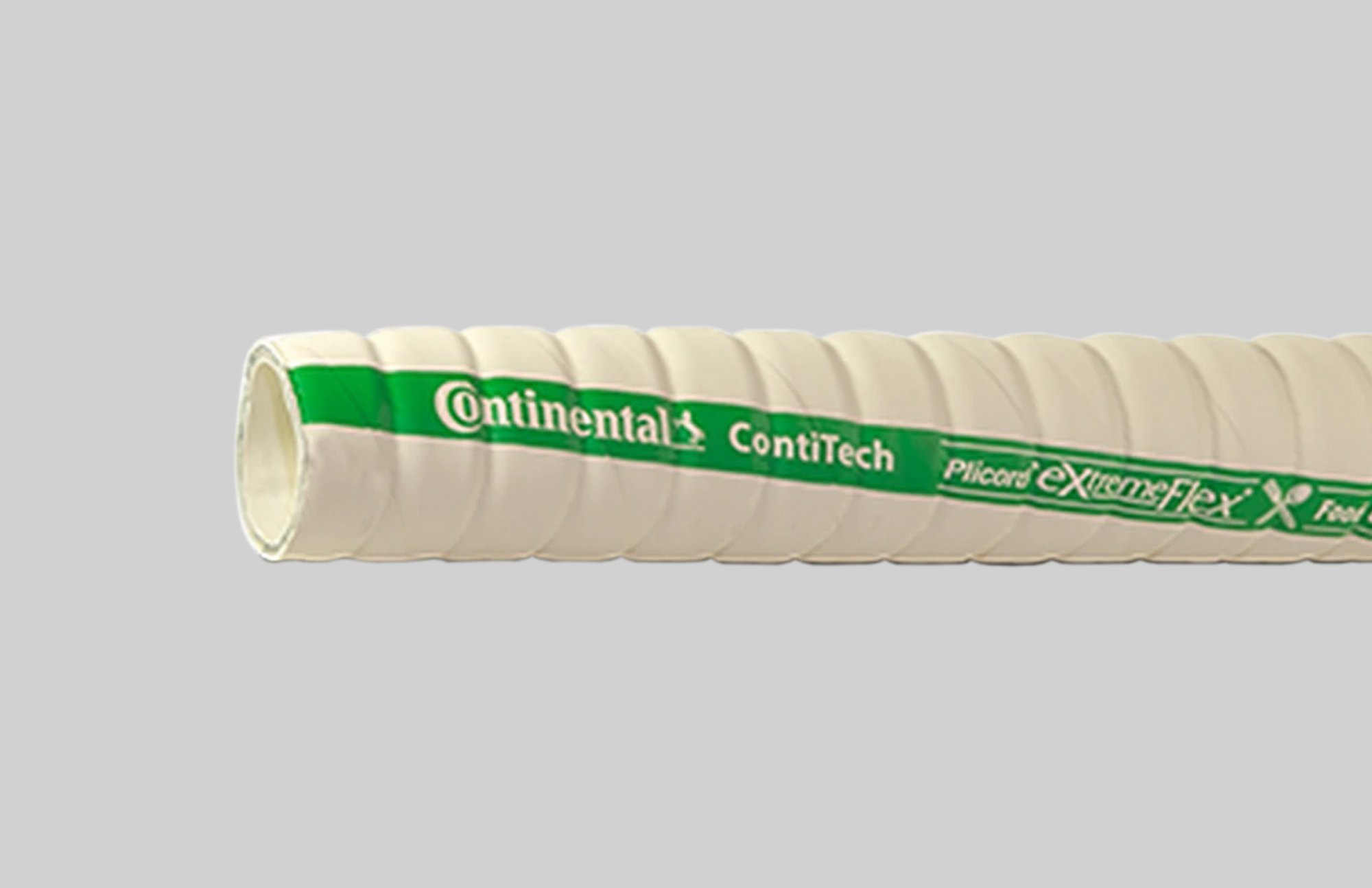

Plicord ExtremeFlex Food Grade

Applications

Plicord ExtremeFlex Food Grade is for both dry food transfer and liquid transfer. A high-tech, flexible corrugated hose with pretzel-like agility and proven performance. Best of all, it’s available at a non-corrugated price, making it a great value. With ExtremeFlex, there’s even more to appreciate:- Easier to move in and out of tight spaces and around sharp corners.- Easier to lift and carry, so there are fewer workplace injuries.- Easier to connect and disconnect, keeping productivity high. highly demanding service of transferring non-oily liquid products in wineries and breweries.

Specifications

  • Construction Tube: White Chemivic™ synthetic rubber (FDA/USDA compliant and conforms to 3-A Sanitary Standard 18-03)
  • Cover: White or gray Chemivic™ corrugated synthetic rubber (wrapped impression)
  • Reinforcement: Spiral-plied synthetic fabric with galvanized wire
  • Coupling: Refer to the Continental ContiTech Industrial Hose Assembly Manual for crimp specifications. !!! New !!! Sanitary type fitting crimp specifications available. Refer to ContiTech Beverage Hose Crimp Manual.
  • Non Stock / Sizes: 400’ minimum order
  • Temperature Range: -25°F to 212°F (-32°C to 100°C)
  • Order Codes: 549-462 (white), 549-164 (gray)
  • Packaging: Coiled & polywrapped
Categories , Tags , , , , ,

Description

Applications

Plicord ExtremeFlex Food Grade is for both dry food transfer and liquid transfer. A high-tech, flexible corrugated hose with pretzel-like agility and proven performance. Best of all, it’s available at a non-corrugated price, making it a great value. With ExtremeFlex, there’s even more to appreciate:- Easier to move in and out of tight spaces and around sharp corners.- Easier to lift and carry, so there are fewer workplace injuries.- Easier to connect and disconnect, keeping productivity high. highly demanding service of transferring non-oily liquid products in wineries and breweries.

Specifications

  • Construction Tube: White Chemivic™ synthetic rubber (FDA/USDA compliant and conforms to 3-A Sanitary Standard 18-03)
  • Cover: White or gray Chemivic™ corrugated synthetic rubber (wrapped impression)
  • Reinforcement: Spiral-plied synthetic fabric with galvanized wire
  • Coupling: Refer to the Continental ContiTech Industrial Hose Assembly Manual for crimp specifications. !!! New !!! Sanitary type fitting crimp specifications available. Refer to ContiTech Beverage Hose Crimp Manual.
  • Non Stock / Sizes: 400’ minimum order
  • Temperature Range: -25°F to 212°F (-32°C to 100°C)
  • Order Codes: 549-462 (white), 549-164 (gray)
  • Packaging: Coiled & polywrapped

Specifications

Imperial Technical Data:

Part # I.D. O.D. Weight (lb) Working PSI Bend Radius Vacuum HG
GPEFF200 2 2.44 1.05 150 2 29
GPEFF300 3 3.56 2.07 150 3 29
GPEFF400 4 4.59 2.92 150 4 29

Metric Technical Data:

Part # I.D. O.D. Weight Working PSI Bend Radius Vacuum HG
GPEFF200 50.80 62.00 1.56 1.03 51 737
GPEFF300 76.20 90.50 3.08 1.03 76 737
GPEFF400

101.60

116.60 4.35 1.03 102 737

Note: Other sizes available upon request.
