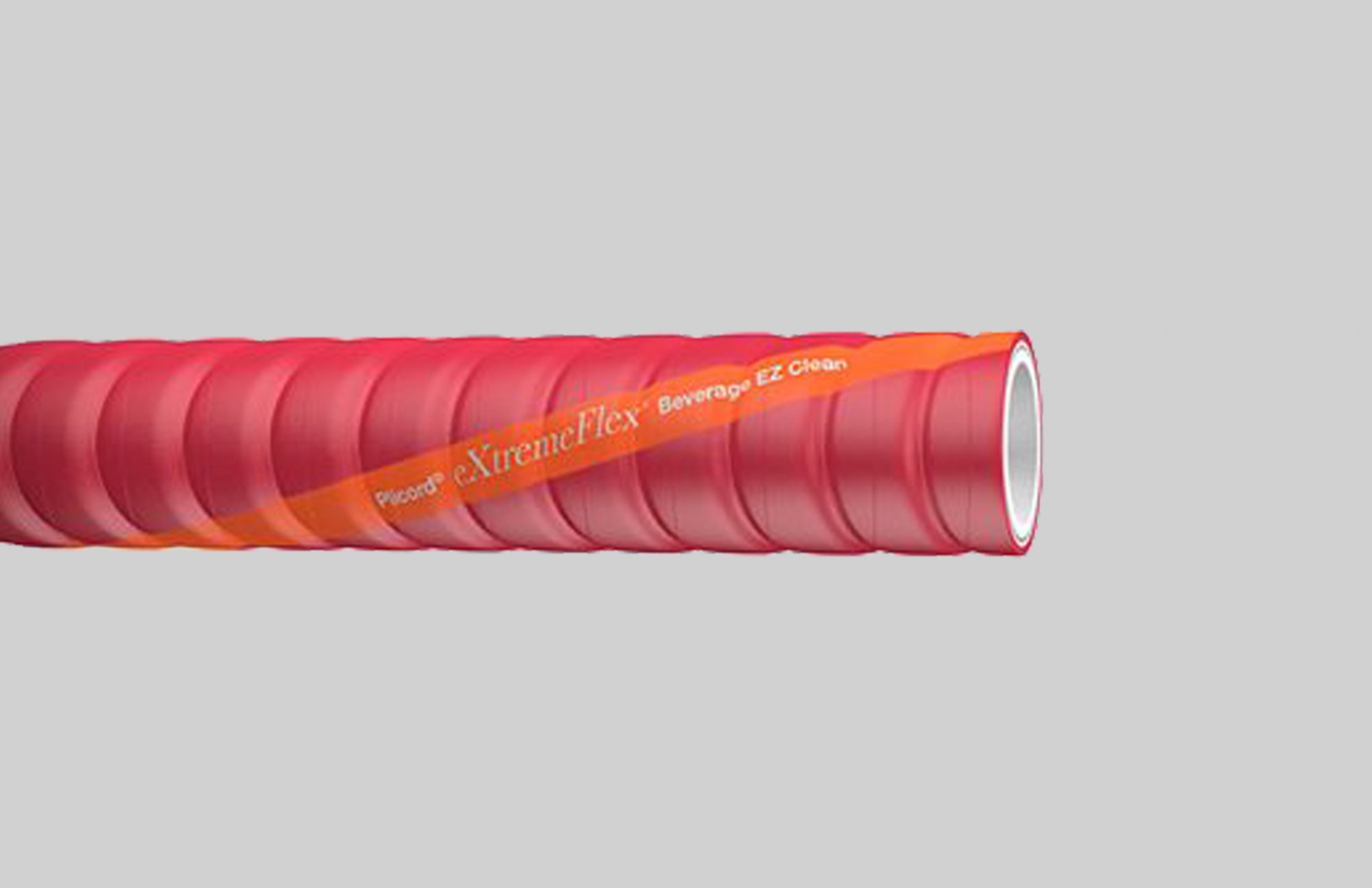

PLICORD EXTREMEFLEX BEVERAGE RED

Call for price
Categories: ,

Description

Applications:

Plicord ExtremeFlex Beverage Red with EZ Clean Cover is primarily for liquid transfer. For beer, wine, distillery and beverage (edible liquid) transfer processing facilities. Ideal for applications requiring flexible and/or tight bend connections. Non-phthalates compound

Specifications:

  • Construction Tube: White Chlorobutyl (FDA/USDA compliant & conforms to 3-A Sanitary Standard 18-03)
  • Cover: Corrugated red EZ Clean UHMWPE cover (semi-smooth finish).
  • Reinforcement: Spiral-plied fabrics with double galvanized helix
  • Coupling: Refer to the Continental ContiTech Industrial Hose Assembly Manual for crimp specifications. !!! New !!! Sanitary type fitting crimp specifications available. Refer to ContiTech Beverage Hose Crimp Manual.
  • Temperature Range: -30°F to 220°F (-34°C to 104°C)
  • Order Codes: 594-605
  • Packaging: 100’ length coiled polywrapped

Specifications

Imperial Technical Data:

Part # I.D. O.D. Weight (lb) Working PSI Bend Radius Vacuum HG
GRBEZF100 1 1.52 0.65 250 2 29
GRBEZF150 1-1/2 2.03 0.93 250 3 29
GRBEZF200 2 2.54 1.21 250 4 29
GRBEZF300 3 3.60 2.77 250 6 29

Metric Technical Data:

Part # I.D. O.D. Weight (kg) Working PSI Bend Radius Vacuum HG
GRBEZF100 25.40 38.70 0.69 1.72 51 737
GRBEZF150 38.10 51.60 1.38 1.72 76 737
GRBEZF200 50.80 64.50 1.80 1.72 102 737
GRBEZF300 76.20 91.50 3.02 1.72 152 737

Note: Other sizes available upon request.
