Oroflex Layflat

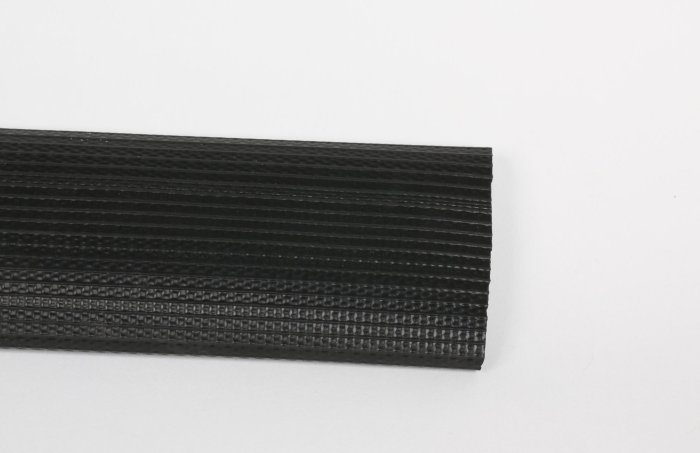

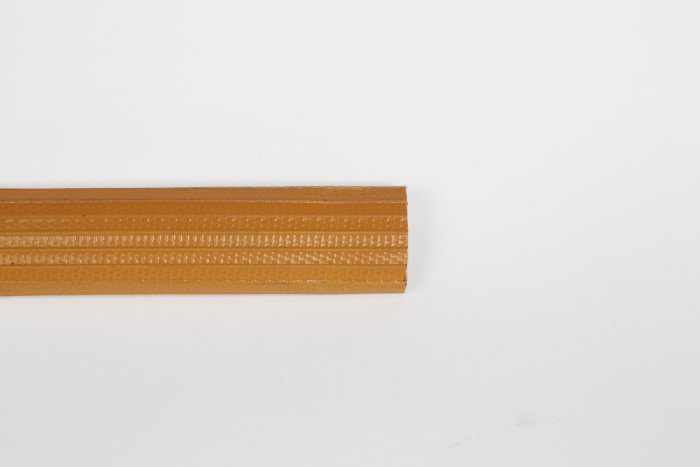

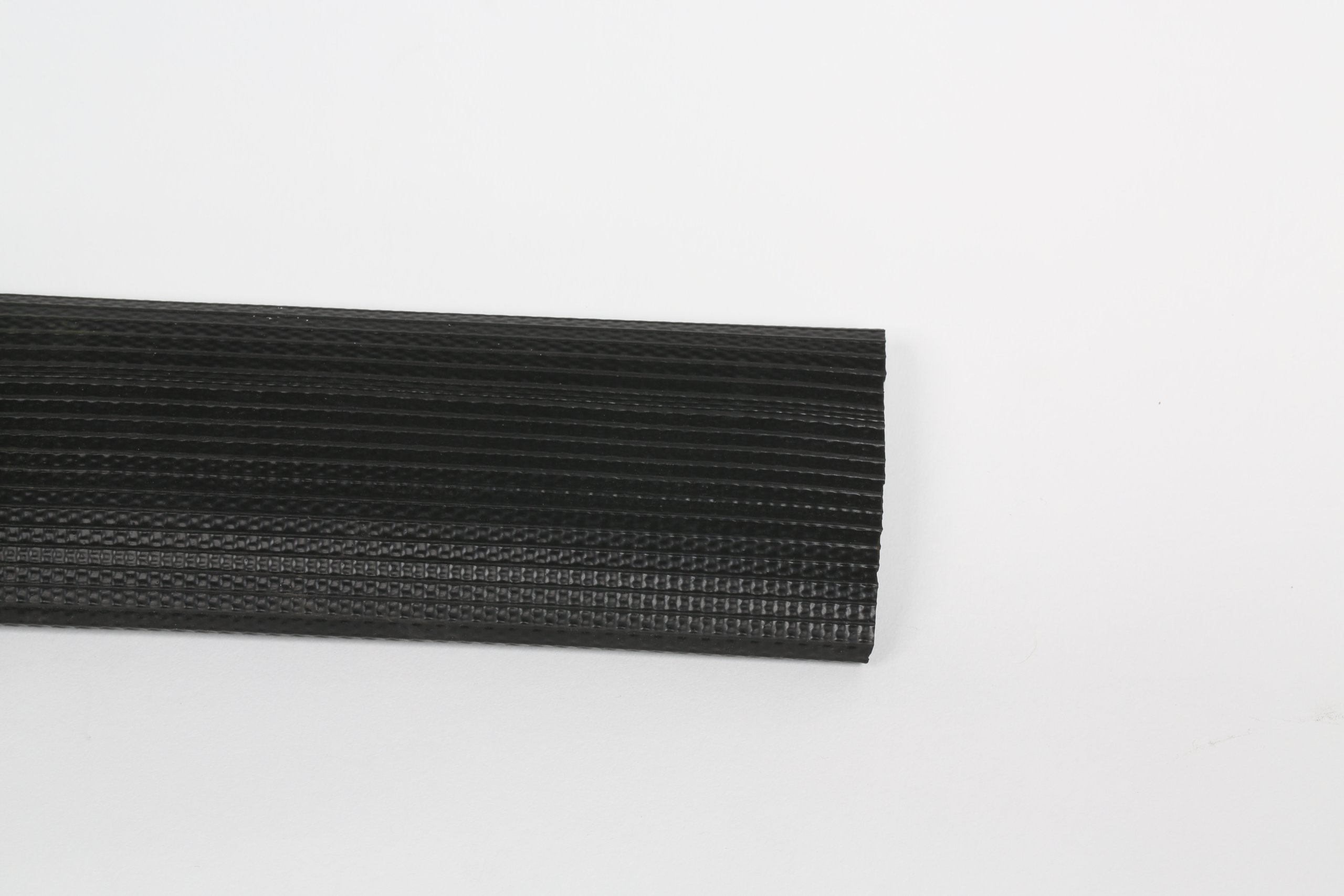

OROFLEX:

Applications:
• A lightweight high pressure, extremely strong hose for general water discharge, and for some chemicals.

Tube:
• Black or yellow abrasion and oil resistant nitrile rubber

Reinforcement:
• Circular woven polyester yarns layers of synthetic yarns

Cover:
• Black or Yellow abrasion, weather and oil resistant nitrile rubber

Temp Range:
• -40°F to +200°F



CONTRAFLEX:

Application

Contraflex is manufactured using a 70% Nitrile and 30% P.V.C. blend giving this product an advantage over other products in the market using a 70% P.V.C. and 30% Nitrile Blend. This hose is designed for discharging water and oil contaminated water at high pressures. An excellent portable pump hose. (Only suitable for handling petroleum products with an aromatic content under 30%)

Construction

Tube – Black abrasion and oil resistant nitrile/PVC blend
Reinforcement – Circular woven polyester yarn
Cover – Black nitrile/PVC blend, resistant to abrasion, oil and weathering
Branding – Unbranded

Temperature Range

-30°C to +95°C (-22°F to +203°F)

Standard Lengths

25ft multiples & 300ft coils

Description

OROFLEX:

Applications:
• A lightweight high pressure, extremely strong hose for general water discharge, and for some chemicals.

Tube:
• Black or yellow abrasion and oil resistant nitrile rubber

Reinforcement:
• Circular woven polyester yarns layers of synthetic yarns

Cover:
• Black or Yellow abrasion, weather and oil resistant nitrile rubber

Temp Range:
• -40°F to +200°F



CONTRAFLEX:

Application

Contraflex is manufactured using a 70% Nitrile and 30% P.V.C. blend giving this product an advantage over other products in the market using a 70% P.V.C. and 30% Nitrile Blend. This hose is designed for discharging water and oil contaminated water at high pressures. An excellent portable pump hose. (Only suitable for handling petroleum products with an aromatic content under 30%)

Construction

Tube – Black abrasion and oil resistant nitrile/PVC blend
Reinforcement – Circular woven polyester yarn
Cover – Black nitrile/PVC blend, resistant to abrasion, oil and weathering
Branding – Unbranded

Temperature Range

-30°C to +95°C (-22°F to +203°F)

Standard Lengths

25ft multiples & 300ft coils

Specifications

OROFLEX10

Part #

I.D

(in.)

O.D

(in.)

Working

PSI

Weight

(lbs/ft)

Standard

Length (ft)

OF10BK150 1 1/2 1.78 200 .21 200
OF10BK200 2 2.28 200 .30 200
OF10BK250 2 1/2 2.78 175 .42 200
OF10BK300 3.32 175 .46 200
OF10BK400 4 4.32 150 .64 200
OF10BK600 6 6.36 150 1.11 200
OF10BK800 8 8.36 150 1.51 200

OROFLEX20

Part #

I.D

(in.)

O.D

(in.)

Working

PSI

Weight

(lbs/ft)

Standard

Length (ft)

OF10BK075 3/4 1.78 200 .21 200
OF10BK100 1 2.28 200 .30 200
OF10BK150 1 1/2 2.78 175 .42 200
OF10BK200 3.32 175 .46 200
OF10BK300 3 4.32 150 .64 200
OF10BK400 4 6.36 150 1.11 200

CONTRAFLEX

Parts No.
I.D. Inches
O.D. Inches
Max W.P. @ 70°F/20°C
Approx. Wt. Per. Ft. Lbs.
CONTRAFLEX150 1-1/2 1.78 200 0.240
CONTRAFLEX200 2 2.28 200 0.340
CONTRAFLEX250 2-1/2 2.77 200 0.390
CONTRAFLEX300 3 3.24 180 0.450
CONTRAFLEX400 4 4.24 180 0.740
CONTRAFLEX600 6 6.380 150 1.210
CONTRAFLEX800 8 8.400 150 1.610
CONTRAFLEX1000 10 10.35 125 2.380
CONTRAFLEX1200 12 12.44 125 3.020
