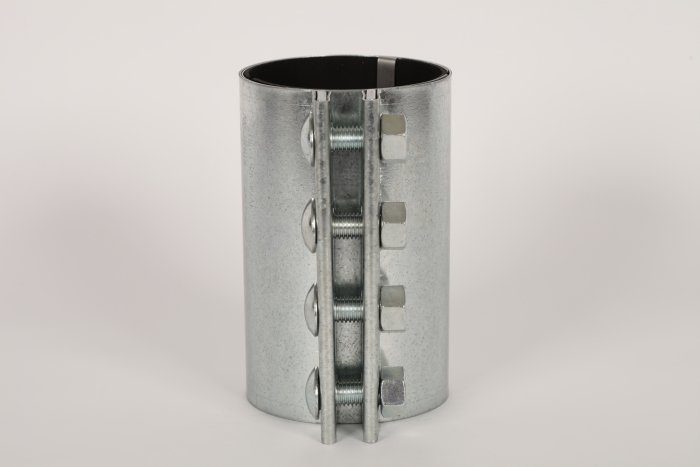

Morris Compression Couplings

MORRIS COMPRESSION COUPLINGS

Call for price
Categories: , ,

Description

Coupling Material
• Made of heavy gauge zinc plated steel.
Also available in aluminum or stainless steel on special request.

Gasket Material
• Gasket is black or white rubber neoprene, please specify by adding a B for Black or W for White to the part number, i.e. 2 1/4-3COD-W
*static grounding strip available on request

Specifications

Size (in.) Type O.D. (in.) Length (in.) # of Bolts Size of Bolts Weight (lbs./ft.) White Part # Black Part #
1/2 Pipe 0.840 2 2 5/16 x 1 1/4 0.5 MC050WH2C MC050BK2C
3/4 Pipe 1.050 2 2 5/16 x 1 1/4 0.7 MC075WH2C MC075BK2C
1 Tubing 1.000 2 2 5/16 x 1 1/4 1.6 MC100WH2COD MC100BK2COD
1 Pipe 1.315 4 2 1/2 x1 3/4 1.6 MC100WH2C MC100BK2C
1 1/4 Tubing 1.250 4 2 1/2 x1 3/4 1.9 MC125WH2COD MC125BK2COD
1 1/4 Pipe 1.660 4 2 1/2 x1 3/4 1.8 MC125WH2C MC125BK2C
1 1/4 Pipe 1.660 6 3 1/2 x1 3/4 3.0 MC125WH3C MC125BK3C
1 1/2 Tubing 1.500 4 2 1/2 x1 3/4 2.0 MC150WH2COD MC150BK2COD
1 1/2 Tubing 1.500 6 3 1/2 x1 3/4 2.9 MC150WH3COD MC150BK3COD
1 1/2 Pipe 1.900 4 2 1/2 x1 3/4 2.0 MC150WH2C MC150BK2C
1 1/2 Pipe 1.900 6 3 1/2 x1 3/4 3.1 MC150WH3C MC150BK3C
1 3/4 Tubing 1.750 4 2 1/2 x1 3/4 2.1 MC175WH2COD MC175BK2COD
1 3/4 Tubing 1.750 6 3 1/2 x1 3/4 3.0 MC175WH3COD MC175BK3COD
2 Tubing 2.000 4 2 1/2 x1 3/4 2.1 MC200WH2COD MC200BK2COD
2 Tubing 2.000 6 3 1/2 x1 3/4 3.1 MC200WH3COD MC200BK3COD
2 Pipe 2.375 4 2 1/2 x1 3/4 2.2 MC200WH2C MC200BK2C
2 Pipe 2.375 6 3 1/2 x1 3/4 3.5 MC200WH3C MC200BK3C
2 Pipe 2.375 8 4 1/2 x1 3/4 4.7 MC200WH4C MC200BK4C
2 1/8 Tubing 2.125 4 2 1/2 x1 3/4 2.1 MC213WH2COD MC213BK2COD
2 1/8 Tubing 2.125 6 3 1/2 x1 3/4 3.2 MC213WH3COD MC213BK3COD
2 3/16 Tubing 2.187 4 2 1/2 x1 3/4 2.2 MC219WH2COD MC219BK2COD
2 3/16 Tubing 2.187 6 3 1/2 x1 3/4 3.3 MC219WH3COD MC219BK3COD
2 1/4 Tubing 2.250 4 2 1/2 x1 3/4 2.2 MC225WH2COD MC225BK2COD
2 1/4 Tubing 2.250 6 3 1/2 x1 3/4 3.3 MC225WH3COD MC225BK3COD
2 1/2 Tubing 2.500 4 2 1/2 x1 3/4 2.6 MC250WH2COD MC250BK2COD
2 1/2 Tubing 2.500 6 3 1/2 x1 3/4 3.4 MC250WH3COD MC250BK3COD
2 1/2 Pipe 2.875 4 2 1/2 x1 3/4 2.4 MC250WH2C MC250BK2C
2 1/2 Pipe 2.875 6 3 1/2 x1 3/4 3.7 MC250WH3C MC250BK3C
2 1/2 Pipe 2.875 8 4 1/2 x1 3/4 5.0 MC250WH4C MC250BK4C
2 3/4 Tubing 2.750 6 3 1/2 x1 3/4 3.6 MC275WH3COD MC275BK3COD
3 Tubing 3.000 4 2 5/8 x 2 3.2 MC300WH2COD MC300BK2COD
3 Tubing 3.000 6 3 5/8 x 2 4.5 MC300WH3COD MC300BK3COD
3 Tubing 3.000 8 4 5/8 x 2 5.9 MC300WH4COD MC300BK4COD
3 Pipe 3.500 4 2 5/8 x 2 3.4 MC300WH2C MC300BK2C
3 Pipe 3.500 6 3 5/8 x 2 5.1 MC300WH3C MC300BK3C
3 Pipe 3.500 8 4 5/8 x 2 6.6 MC300WH4C MC300BK4C
3 1/4 Tubing 3.250 4 2 5/8 x 2 3.5 MC325WH2COD MC325BK2COD
3 1/4 Tubing 3.250 6 3 5/8 x 2 5.0 MC325WH3COD MC325BK3COD
3 1/4 Tubing 3.250 8 4 5/8 x 2 6.5 MC325WH4COD MC325BK4COD
3 1/2 Tubing 3.500 4 2 5/8 x 2 3.4 MC300WH2C MC300BK2C
3 1/2 Tubing 3.500 6 3 5/8 x 2 5.1 MC300WH3C MC300BK3C
3 1/2 Tubing 3.500 8 4 5/8 x 2 6.6 MC300WH4C MC300BK4C
3 1/2 Pipe 4.000 4 2 5/8 x 2 3.7 MC350WH2C MC350BK2C
3 1/2 Pipe 4.000 6 3 5/8 x 2 5.3 MC350WH3C MC350BK3C
3 1/2 Pipe 4.000 8 4 5/8 x 2 7.2 MC350WH4C MC350BK4C
3 3/4 Tubing 3.750 6 3 5/8 x 2 5.6 MC375WH3COD MC375BK3COD
3 3/4 Tubing 3.750 8 4 5/8 x 2 7.4 MC375WH4COD MC375BK4COD
4 Tubing 4.000 4 2 5/8 x 2 3.7 MC350WH2C MC350BK2C
4 Tubing 4.000 6 3 5/8 x 2 5.3 MC350WH3C MC350BK3C
4 Tubing 4.000 8 4 5/8 x 2 7.2 MC350WH4C MC350BK4C
4 Pipe 4.500 4 2 5/8 x 2 3.8 MC400WH2C MC400BK2C
4 Pipe 4.500 6 3 5/8 x 2 5.5 MC400WH3C MC400BK3C
4 Pipe 4.500 8 4 5/8 x 2 7.7 MC400WH4C MC400BK4C
4 1/4 Tubing 4.250 6 3 5/8 x 2 5.5 MC425WH3COD MC425BK3COD
4 1/4 Tubing 4.250 8 4 5/8 x 2 7.0 MC425WH4COD MC425BK4COD
4 1/2 Tubing 4.500 4 2 5/8 x 2 3.8 MC400WH2C MC400BK2C
4 1/2 Tubing 4.500 6 3 5/8 x 2 5.5 MC400WH3C MC400BK3C
4 1/2 Tubing 4.500 8 4 5/8 x 2 7.7 MC400WH4C MC400BK4C
4 1/2 Pipe 5.563 4 2 5/8 x 2 4.2 MC450WH2C MC450BK2C
4 1/2 Pipe 5.563 6 3 5/8 x 2 6.2 MC450WH3C MC450BK3C
4 1/2 Pipe 5.563 8 4 5/8 x 2 8.1 MC450WH4C MC450BK4C
4 3/4 Tubing 4.750 6 3 5/8 x 2 6.5 MC475WH3COD MC475BK3COD
4 3/4 Tubing 4.750 8 4 5/8 x 2 8.6 MC475WH4COD MC475BK4COD
5 Tubing 5.000 4 2 5/8 x 2 4.2 MC450WH2C MC450BK2C
5 Tubing 5.000 6 3 5/8 x 2 6.2 MC450WH3C MC450BK3C
5 Tubing 5.000 8 4 5/8 x 2 8.1 MC450WH4C MC450BK4C
5 Pipe 5.563 4 2 5/8 x 2 4.6 MC500WH2C MC500BK2C
5 Pipe 5.563 6 3 5/8 x 2 6.8 MC500WH3C MC500BK3C
5 Pipe 5.563 8 4 5/8 x 2 8.8 MC500WH4C MC500BK4C
5 1/4 Tubing 5.250 6 3 5/8 x 2 6.6 MC525WH3COD MC525BK3COD
5 1/2 Tubing 5.500 6 3 5/8 x 2 6.8 MC550WH3COD MC550BK3COD
5 1/2 Tubing 5.500 8 4 5/8 x 2 9.0 MC550WH4COD MC550BK4COD
5 3/4 Tubing 5.750 6 3 5/8 x 2 7.8 MC575WH3COD MC575BK3COD
5 3/4 Tubing 5.750 8 4 5/8 x 2 9.2 MC575WH4COD MC575BK4COD
6 Tubing 6.000 4 2 5/8 x 2 4.7 MC600WH2COD MC600BK2COD
6 Tubing 6.000 6 3 5/8 x 2 7.0 MC600WH3COD MC600BK3COD
6 Tubing 6.000 8 4 5/8 x 2 9.4 MC600WH4COD MC600BK4COD
6 Tubing 6.000 10 5 5/8 x 2 11.8 MC600WH5COD MC600BK5COD
6 Pipe 6.625 4 2 5/8 x 2 5.3 MC600WH2C MC600BK2C
6 Pipe 6.625 6 3 5/8 x 2 7.8 MC600WH3C MC600BK3C
6 Pipe 6.625 8 4 5/8 x 2 10.4 MC600WH4C MC600BK4C
6 Pipe 6.625 10 5 5/8 x 2 14.3 MC600WH5C MC600BK5C
6 1/4 Tubing 6.250 6 3 5/8 x 2 7.3 MC625WH3COD MC625BK3COD
6 1/4 Tubing 6.250 8 4 5/8 x 2 10.0 MC625WH4COD MC625BK4COD
6 1/2 Tubing 6.500 6 3 5/8 x 2 7.5 MC650WH3COD MC650BK3COD
6 1/2 Tubing 6.500 8 4 5/8 x 2 10.4 MC650WH4COD MC650BK4COD
6 3/4 Tubing 6.750 6 3 5/8 x 2 7.7 MC675WH3COD MC675BK3COD
6 3/4 Tubing 6.750 8 4 5/8 x 2 10.8 MC675WH4COD MC675BK4COD
7 Tubing 7.000 6 3 5/8 x 2 7.9 MC700WH3COD MC700BK3COD
7 Tubing 7.000 8 4 5/8 x 2 10.8 MC700WH4COD MC700BK4COD
7 Tubing 7.000 10 5 5/8 x 2 13.7 MC700WH5COD MC700BK5COD
7 1/4 Tubing 7.250 6 3 5/8 x 2 8.3 MC725WH3COD MC725BK3COD
7 1/2 Tubing 7.500 6 3 5/8 x 2 8.5 MC750WH4COD MC750BK4COD
7 1/2 Tubing 7.500 8 4 5/8 x 2 11.3 MC750WH3COD MC750BK3COD
7 3/4 Tubing 7.750 6 3 5/8 x 2 8.9 MC775WH3COD MC775BK3COD
8 Tubing 8.000 6 2 5/8 x 2 11.0 MC800WH2COD MC800BK2COD
8 Tubing 8.000 8 3 5/8 x 2 14.3 MC800WH3COD MC800BK3COD
8 Tubing 8.000 10 4 5/8 x 2 18.0 MC800WH4COD MC800BK4COD
8 Tubing 8.000 12 5 5/8 x 2 22.0 MC800WH5COD MC800BK5COD
8 Pipe 8.625 6 2 5/8 x 2 11.5 MC800WH2C MC800BK2C
8 Pipe 8.625 8 3 5/8 x 2 14.6 MC800WH3C MC800BK3C
8 Pipe 8.625 10 4 5/8 x 2 18.8 MC800WH4C MC800BK4C
8 Pipe 8.625 12 5 5/8 x 2 23.0 MC800WH5C MC800BK5C
9 Tubing 9.000 8 3 5/8 x 2 15.9 MC900WH3COD MC900BK3COD
9 Tubing 9.000 10 4 5/8 x 2 19.9 MC900WH4COD MC900BK4COD

Other sizes available upon request. Part #'s with OD at the end = TUBING
