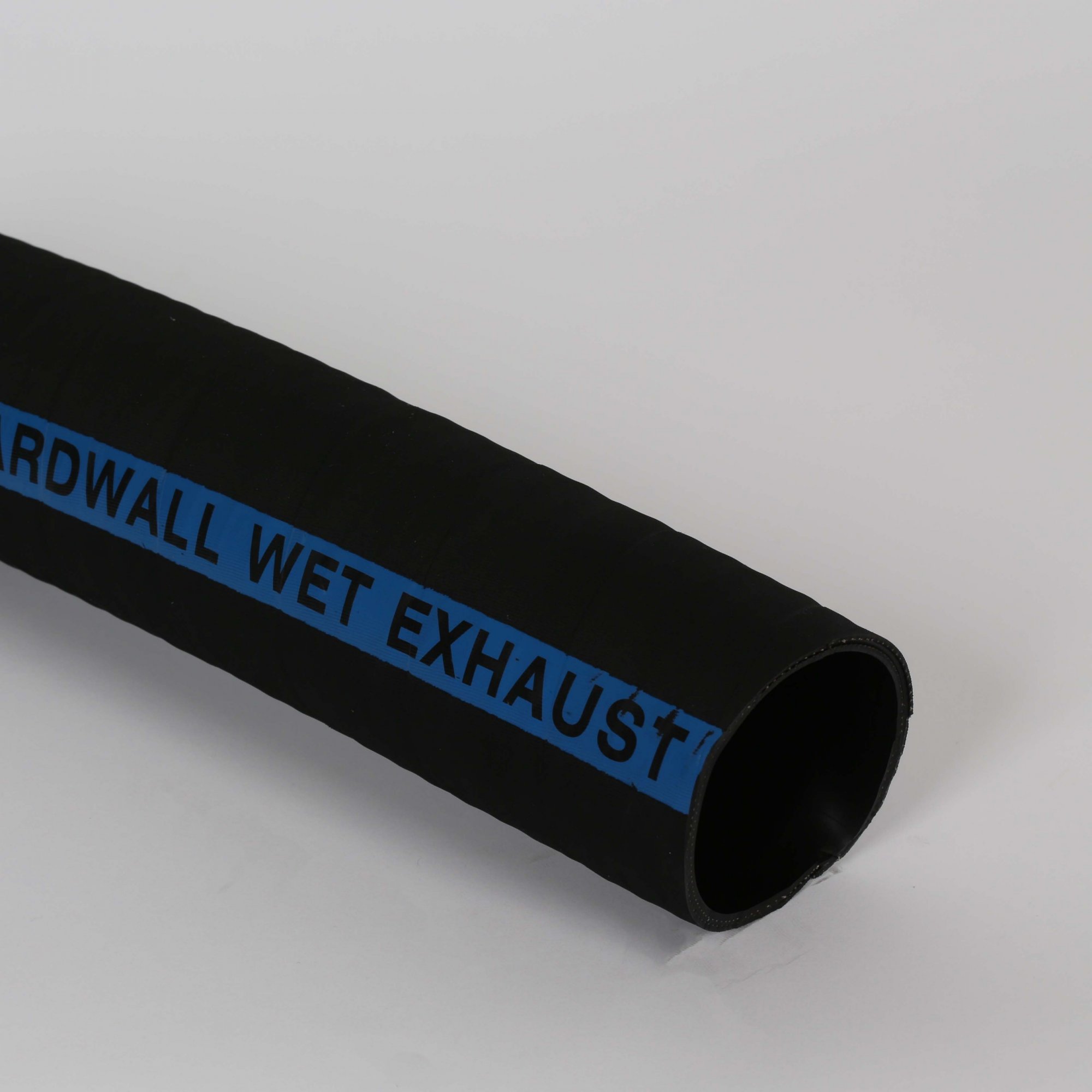

Marine Exhaust Hardwall Hose

MARINE EXHAUST HARDWALL HOSE

Applications: Used in marine exhaust applications where a hose made to Coast Guard specifications is required

Categories: Auto & Marine, Water Discharge, Water Suction

Description
Specification

Description

Applications:
• Marine exhaust applications where a hose made to Coast Guard specifications is required
* Resistant to heat, and weather

Tube:
• Black rubber specially compounded for marine use

Reinforcement:
• High tensile wire helix embedded between layers of textile cords

Cover:
• Black synthetic rubber with blue identification stripe

Temp Range:
• -40°F to +212°F

Specifications

Part #	I.D (in.)	O.D (in.)	Weight (lbs/ft)	Standard Length (ft)
MEH078	7/8	1.25	.50	100
MEH100	1	1.38	.57	100
MEH118	1 1/8	1.40	.58	100
MEH125	1 1/4	1.69	.68	100
MEH138	1 3/8	1.81	.75	100
MEH150	1 1/2	1.81	.82	100
MEH163	1 5/8	1.97	1.10	100
MEH175	1 3/4	2.09	1.06	100
MEH178	1 7/8	2.20	1.14	100
MEH200	2	2.32	1.33	100
MEH2125	2 1/8	2.50	1.39	100
MEH225	2 1/4	2.60	1.54	100
MEH238	2 3/8	2.68	1.71	100
MEH250	2 1/2	2.81	1.82	100
MEH258	2 5/8	3.00	2.06	100
MEH278	2 7/8	3.35	2.08	100
MEH300	3	3.54	2.12	100
MEH318	3 1/8	3.70	2.35	100
MEH350	3 1/2	4.09	2.62	100
MEH400	4	4.57	3.02	100
MEH418	4 1/8	4.64	2.75	100
MEH450	4 1/2	5.12	3.57	100
MEH500	5	5.55	3.59	100
