MACHETE NOZZLE

RIPSAW NOZZLE

Item not in stock - 7-10 Day Delivery

Call for price

Description

SUPERIOR PERFORMANCE – The Machete™ blasts a 0-degree water stream that oscillates at an optimal speed creating a 15-degree wedge of powerful flow. This will allow you to dig faster in the hardest and most compact soil types. By harnessing the power of a straight tip nozzle while oscillating, it creates a superior tool for trenching capabilities.

The Machete™ is a premium oscillating tool and the first of its kind in the hydro-excavation market. By moving water in an oscillating motion combined with a smaller spray angle, the direct stream provides a more forceful flow and impact.

Minimum Inlet Pressure: 1,000 PSI (69 bar)

Maximum Inlet Pressure: 3,200 PSI (220 bar)

Housing Material: Stainless Steel

Maximum Water Temperature: 180ºF (+82ºC)

Nozzle Tip & Seat Material: Tungsten Carbide

Inlet Connection Thread: 1/2” FNPT

Oscillation Angle: 15º

Specifications

Nozzle
Size



Part
Number

Flow Rate Chart (GPM)
1000
PSI
1500
PSI
2000
PSI
2500
PSI
3000
PSI
3200
PSI
3.0 1003088-030 1.5 GPM 1.8 GPM 2.1 GPM 2.4 GPM 2.6 GPM 2.7 GPM
4.0 1003088-040 2.0 GPM 2.5 GPM 2.8 GPM 3.2 GPM 3.5 GPM 3.6 GPM
5.0 1003088-050 2.5 GPM 3.0 GPM 3.5 GPM 4.0 GPM 4.3 GPM 4.5 GPM
6.0 1003088-060 3.0 GPM 3.7 GPM 4.2 GPM 4.7 GPM 5.2 GPM 5.4 GPM
8.0 1003088-080 4.0 GPM 4.9 GPM 5.7 GPM 6.3 GPM 6.9 GPM 7.2 GPM
10.0 1003088-100 5.0 GPM 6.1 GPM 7.1 GPM 7.9 GPM 8.7 GPM 8.9 GPM

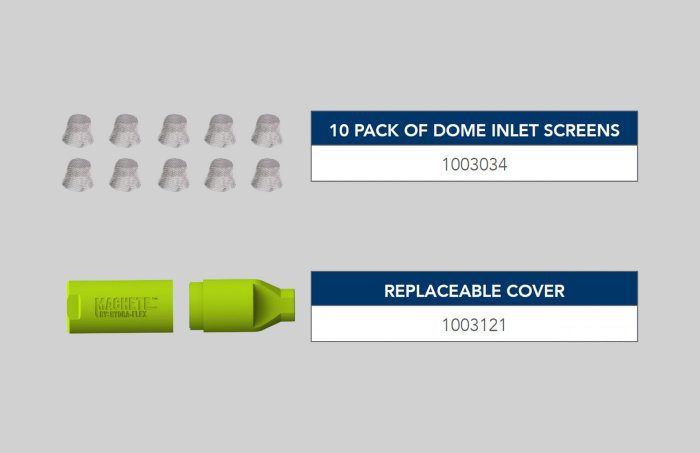

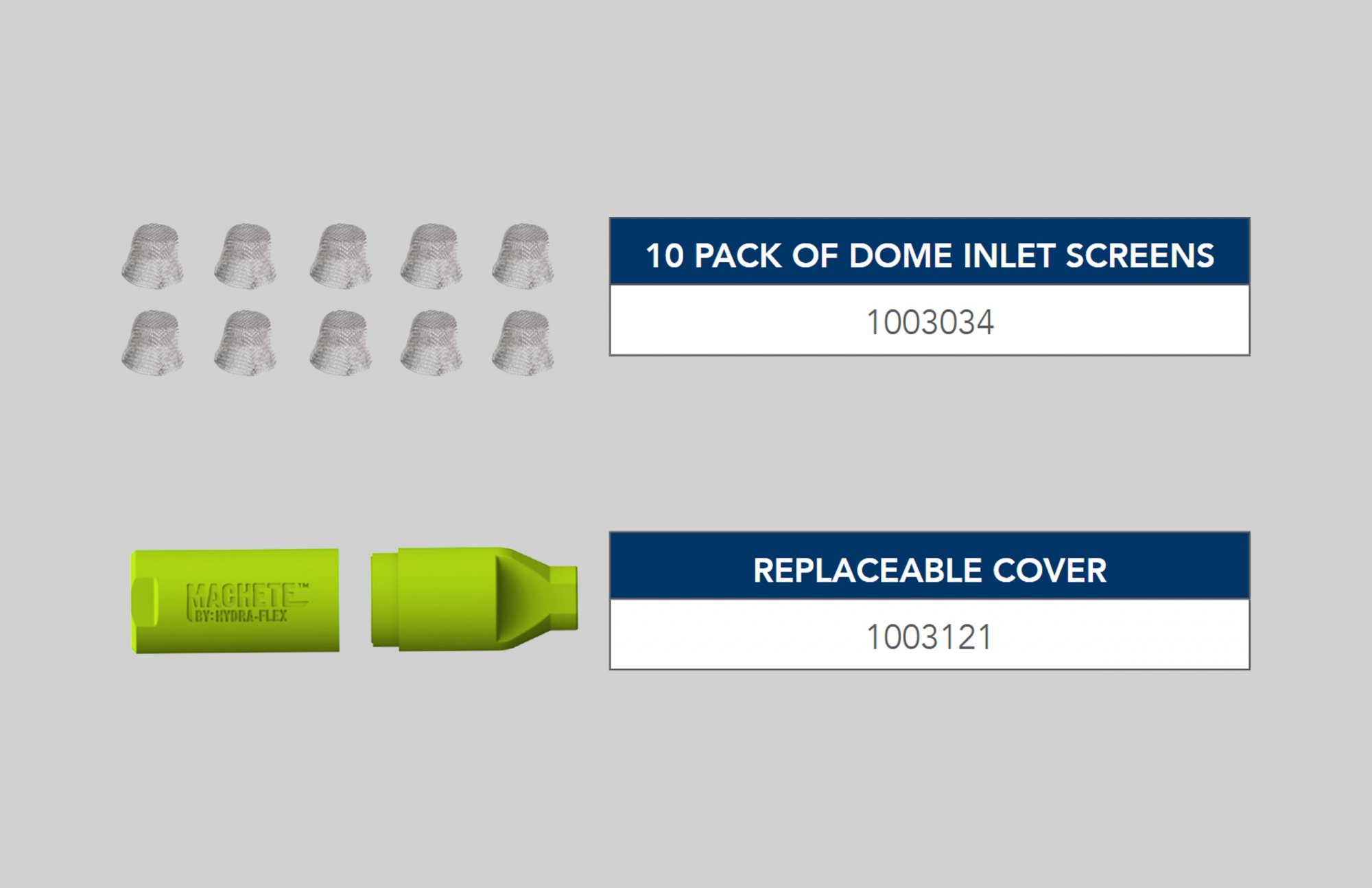

Machete Repair Parts:

Part #

Description
1003121 Machete Replaceable Cover
1003200 Machete Dome Screen 1/2" 10 PK



Additional information

Orifice Size

#3.0, #4.0, #5.0, #6.0, #8.0, #10.0
