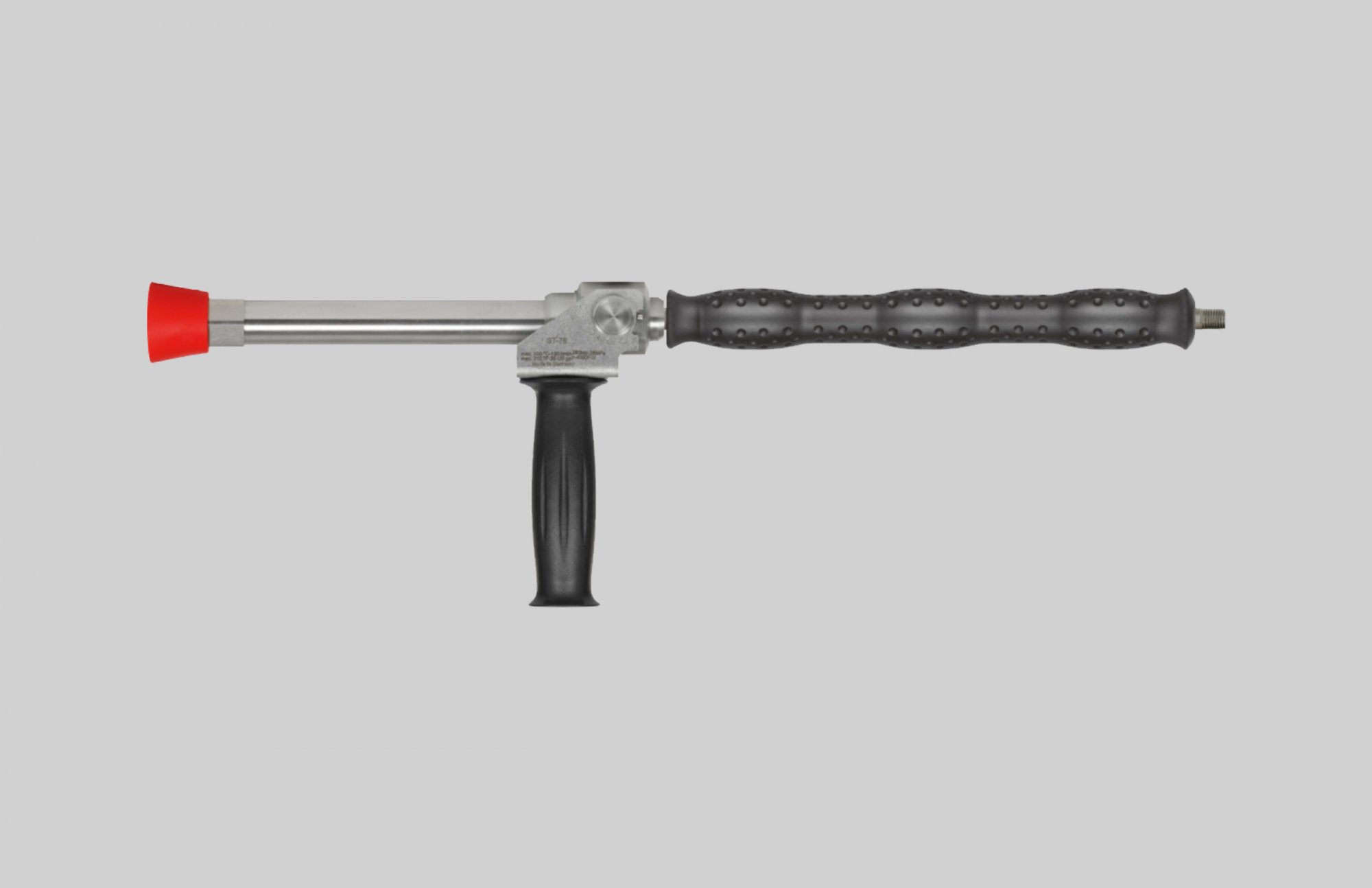

Longcast Lance W/ ST-2320 Spray Gun Assembly

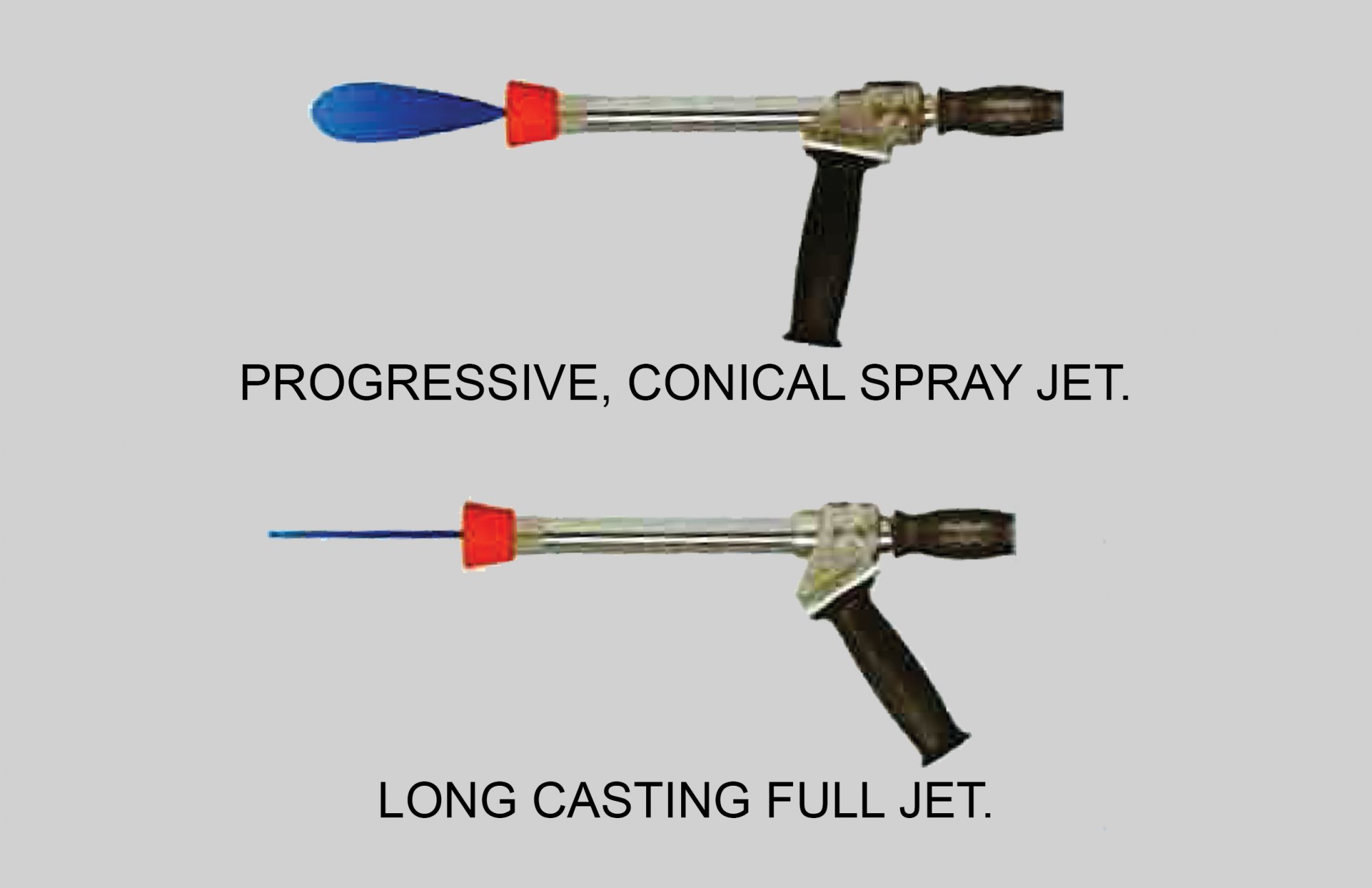

The side handle grip makes an effortless adjustment of the water jet during operation possible. A long casting point jet or a progressive cone like spray jet can be set.

Features

  • Vented grip lance.
  • Stainless Steel.
  • Works well with low and high pressure pumps.
  • Ideal for heavy mud applications.
  • Comfort grip handle moves effortlessly to adjust desired spray pattern.
  • 10 different nozzle sizes available.
  • Flow Rate 21 GPM.
  •  Available as Lance only #200078500 30 inches.
Request Quote
Email for Quote
Call for Quote
Categories , , , Tags , , ,
Longcast Lance W/ ST-2320 Spray Gun Assembly
Longcast Lance W/ ST-2320 Spray Gun Assembly - Image 2
Longcast Lance W/ ST-2320 Spray Gun Assembly - Image 3
Longcast Lance W/ ST-2320 Spray Gun Assembly - Image 4
Longcast Lance W/ ST-2320 Spray Gun Assembly - Image 5

Description

The side handle grip makes an effortless adjustment of the water jet during operation possible. A long casting point jet or a progressive cone like spray jet can be set.

Features

  • Vented grip lance.
  • Stainless Steel.
  • Works well with low and high pressure pumps.
  • Ideal for heavy mud applications.
  • Comfort grip handle moves effortlessly to adjust desired spray pattern.
  • 10 different nozzle sizes available.
  • Flow Rate 21 GPM.
  •  Available as Lance only #200078500 30 inches.

Specifications

Part #

Pressure PSI

 Temperature Length Inlet Weight (lb.)

200078520

2200

 300°F 38" 1/2" FPT 2.82

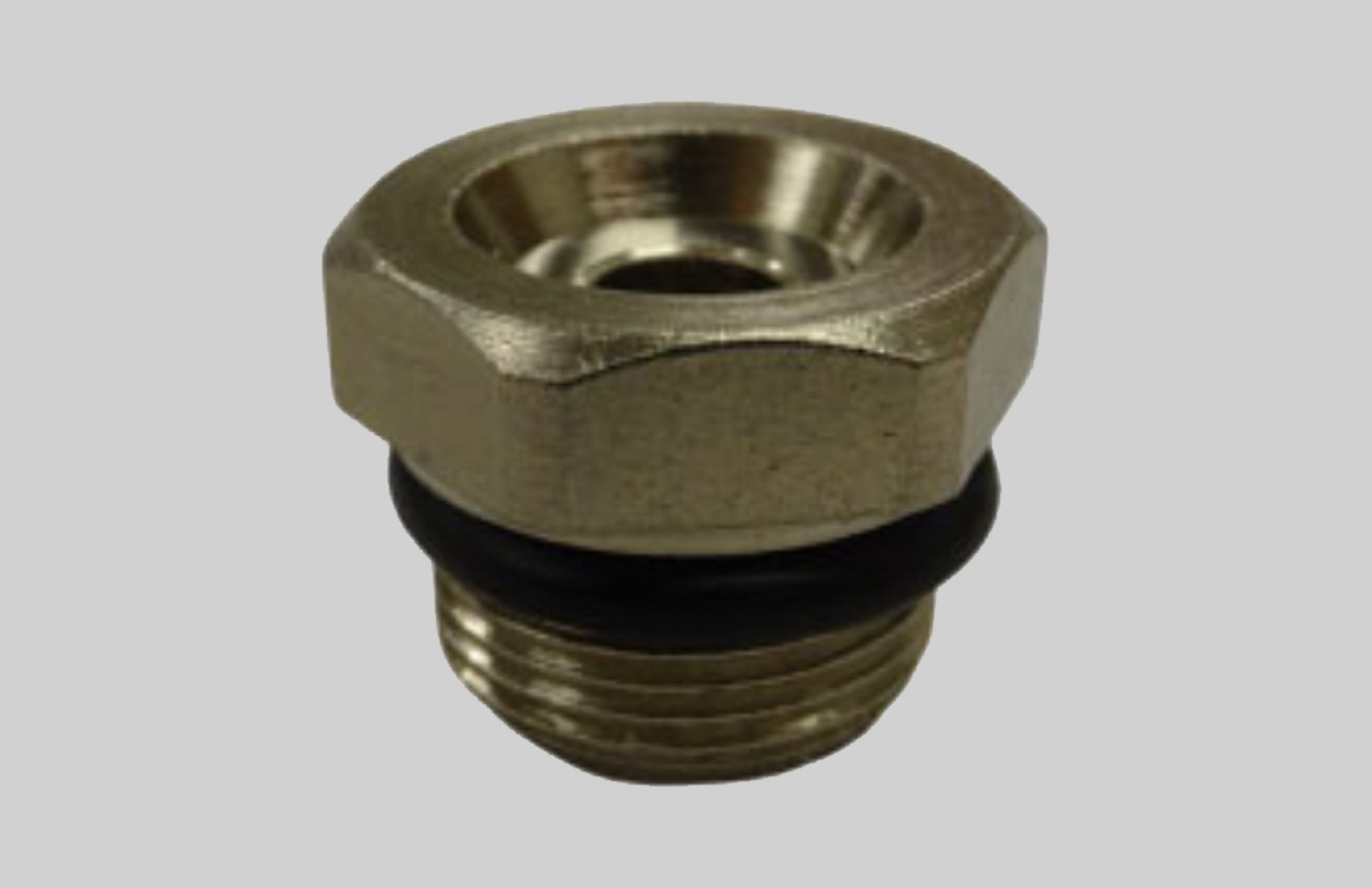

Stainless Steel Longcast Nozzles



Part #

Description
200078412 Nozzle ST-78 longcast 1.2mm

200078415

Nozzle ST-78 longcast 1.5mm

200078420

Nozzle ST-78 longcast 2.0mm

200078423

Nozzle ST-78 longcast 2.3mm

200078425

Nozzle ST-78 longcast 2.5mm

200078430

Nozzle ST-78 longcast 3.0mm

200078435

Nozzle ST-78 longcast 3.5mm

200078440

Nozzle ST-78 longcast 4.0mm

200078445

Nozzle ST-78 longcast 4.5mm

200078450

Nozzle ST-78 longcast 5.0mm

200078470

Nozzle ST-78 longcast 7.0mm



Lance Only: #200078500, 30"

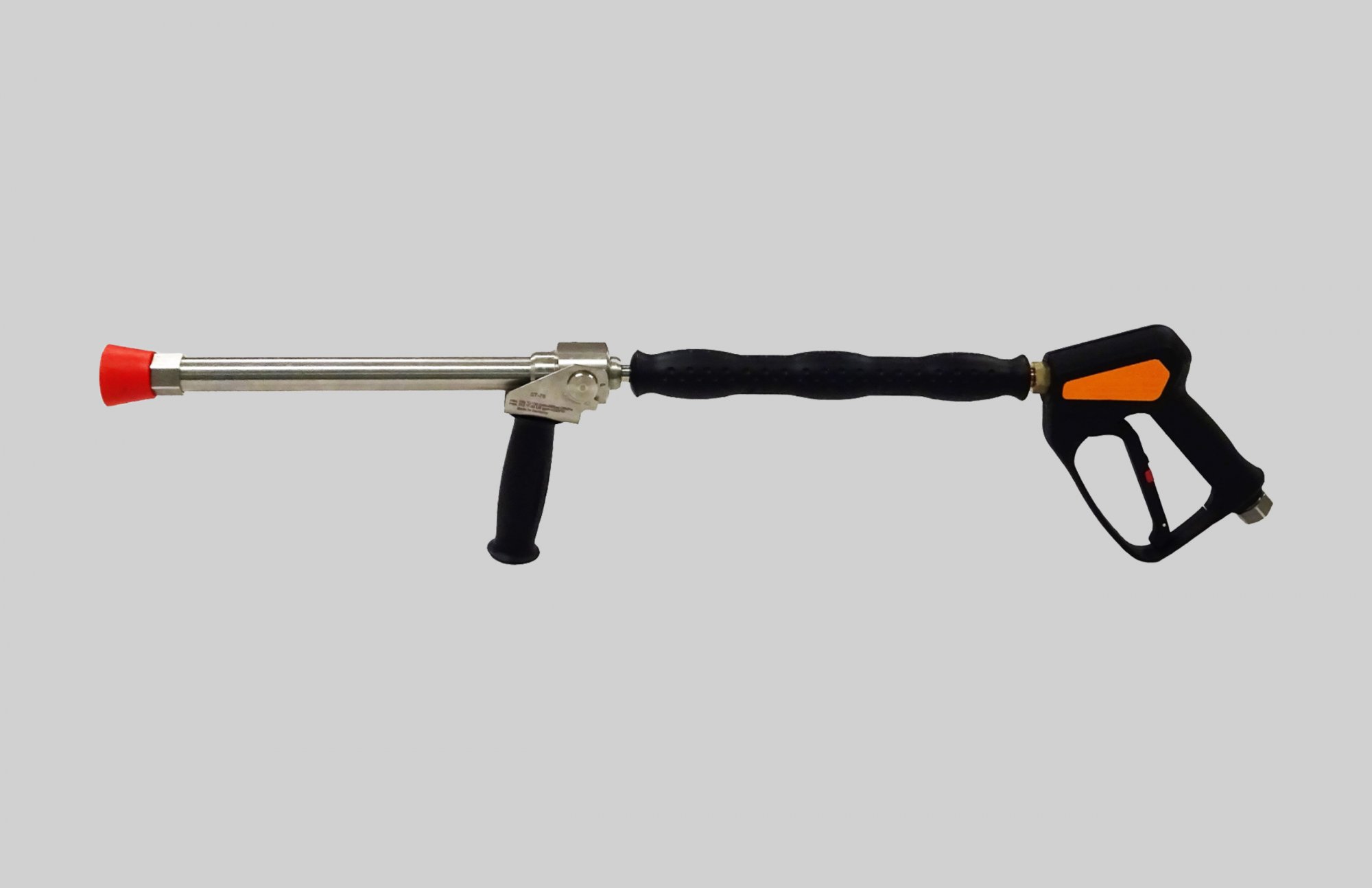

Pictured Gun Specs:

The Suttner ST2320 guns are designed to be used in high flow, high pressure applications, whilst still maintaining their modest size. Gun Cases are made from impact resistant plastic, with a safety lock trigger and internal components made from corrosion resistant materials.

Max Press: 150 Bar
Max Flow: 80 Lpm
Max Temp: 150ºC
Inlet: 1/2″ F
Outlet: 1/4″ F
