WARNING: For LP Gas use ONLY! Do NOT use in anhydrous ammonia or refrigeration applications! Do NOT use male swivel couplings or screw-together re-attachable fittings or any type of couplings that use O-Ring sealing surfaces!
For conveyance of LP Gas products where a 1-1/4″ through 2″ ID is required. Meets or exceeds all Underwriter Laboratories (UL) 21 requirements as well as CGA (Canadian Gas Association) Type 1, LP Gas hose requirements.
Can be used for natural gas with application specific criteria. The molecules of natural gas are small, enhancing its ability to permeate through standard rubber or PVC hose constructions. The permeation process is more rapid as the working pressure increases, and natural gas accumulates with potentially dangerous consequences. Use pipe, non-permeable tubing or hose with barrier constructions to convey natural gas. Series 7232 L.P. Gas hose can be used for natural gas service, but ONLY under the following conditions:

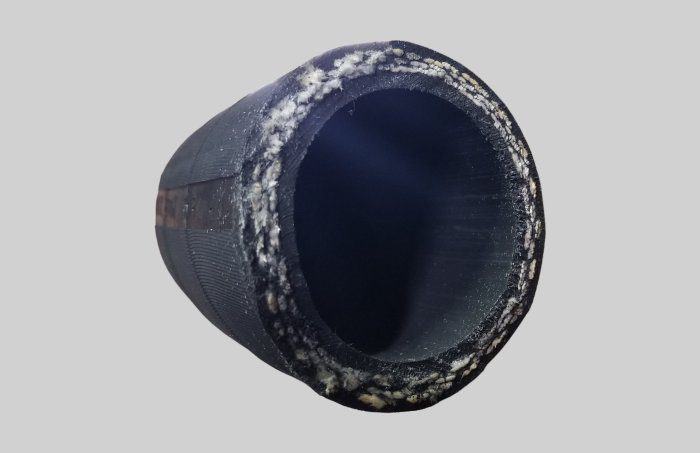

Tube: Black Nitrile
Cover: Perforated Black Neoprene
Reinforcement: Multiple textile braids
Temp. Range: -40°F to +180°F (NOTE: The hose construction is capable of this rating, however, LP Gas should NEVER be conveyed over 140F during conveyance).

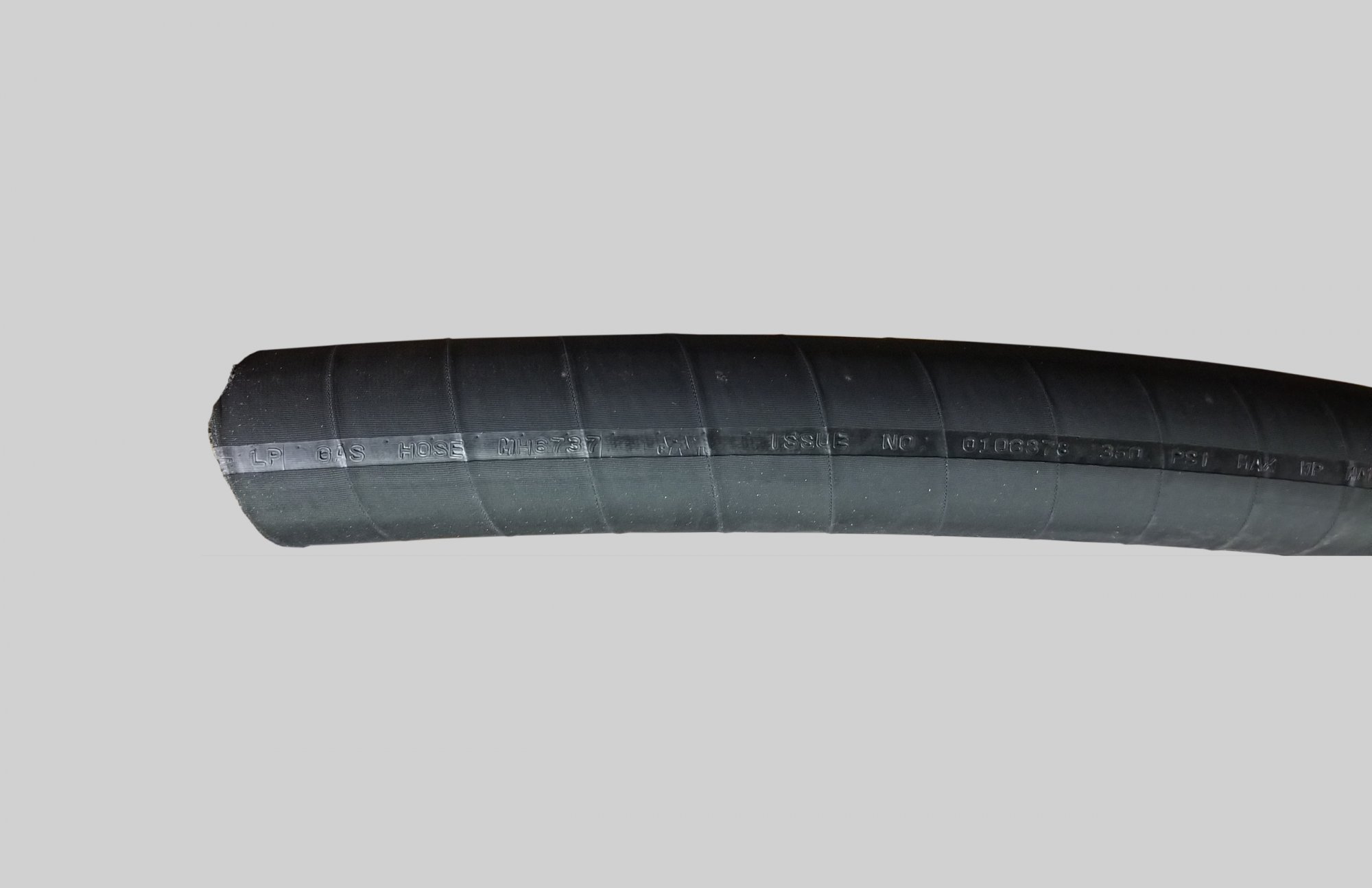

Branding:Side 1: Parker/ Dayco 7232 CGA Type 1 Caution - LP Gas Hose MH6737 UR (UL Recognized component, with backyards "R") Issue No. XXXX 350 PSI, Max WP Made in USA Type brand.Side 2: Parker/ Dayco LP Gas Hose

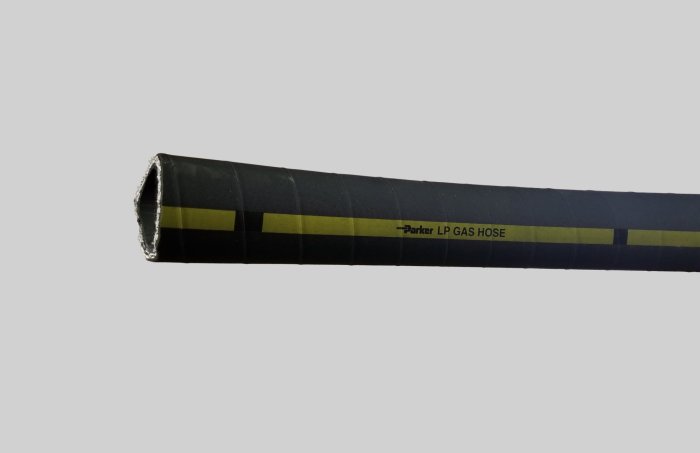

Brand Description: Emboss Brand and Black letter color, Yellow background
I.D. (in.)
I.D. (mm)
Reinf. Braids
O.D. (in.)
O.D. (mm)
Approx. Wt. Per 100'
Min. Bend Radius
Max. Rec. WP
Lengths: 1-1/4" reels are max. 3 pieces, 25'. min. length. 1-1/2". and 2" are 150'. pkg., max. 3 pieces with 40'. min. length.
Couplings: Coupling style 2, 3, 8, or for other coupling recommendations refer to NAHAD Assembly Guidelines.
