LAYFLAT PVC WATER DISCHARGE HOSE – BLUE OR BROWN

Call for price
Categories: ,

Download:   Catalog

Description

Applications:
• A light or heavy duty layflat hose for portable pump and irrigation use

Tube:
• Blue or brown PVC impregnation

Reinforcement:
• Woven high tensile synthetic yarns

Cover:
• Blue or brown PVC impregnation

Temp Range:
• +15°F to +130°F

Specifications

Part #

I.D

(in.)

O.D

(in.)

Working

PSI

Bend

Radius (in.)

Weight

(lbs/ft)

Standard

Length (ft)

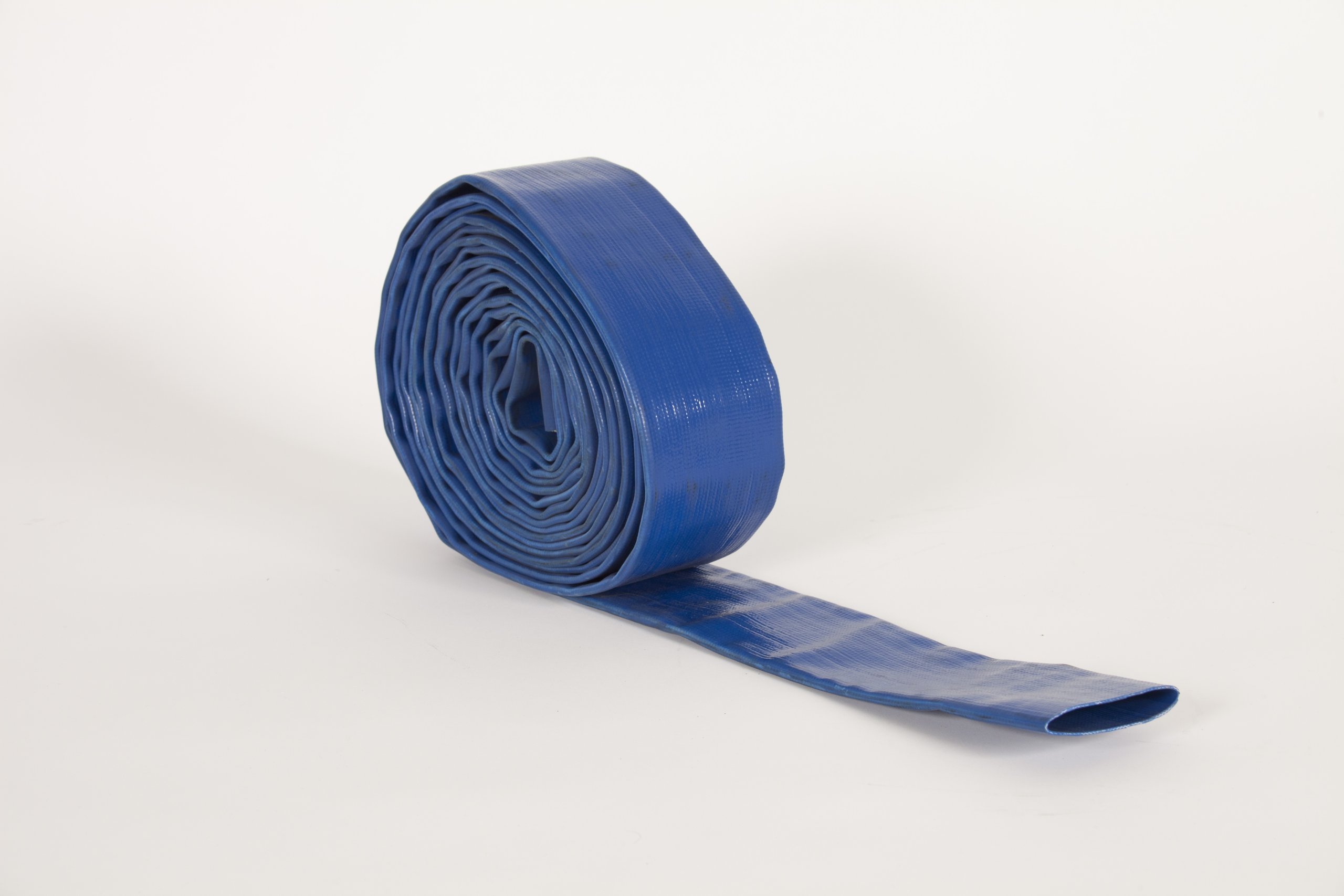

Blue


LAYBL100 1 1.11 150 - 0.13 300
LAYBL120 1 1/4 1.37 130 - 0.15 300
LAYBL150 1 1/2 1.63 70 - 0.15 300
LAYBL200 2 2.13 65 - 0.20 300
LAYBL250 2 1/2 2.63 65 - 0.27 300
LAYBL300 3 3.13 60 - 0.33 300
LAYBL400 4 4.14 60 - 0.46 300
LAYBL500 5 5.15 45 - 0.65 300
LAYBL600 6 6.15 35 - 0.78 300
LAYBL800 8 8.16 35 - 1.20 300
LAYBL1000 10 10.20 35 - 1.75 300
LAYBL1200 12 12.30 30 - 2.50 300

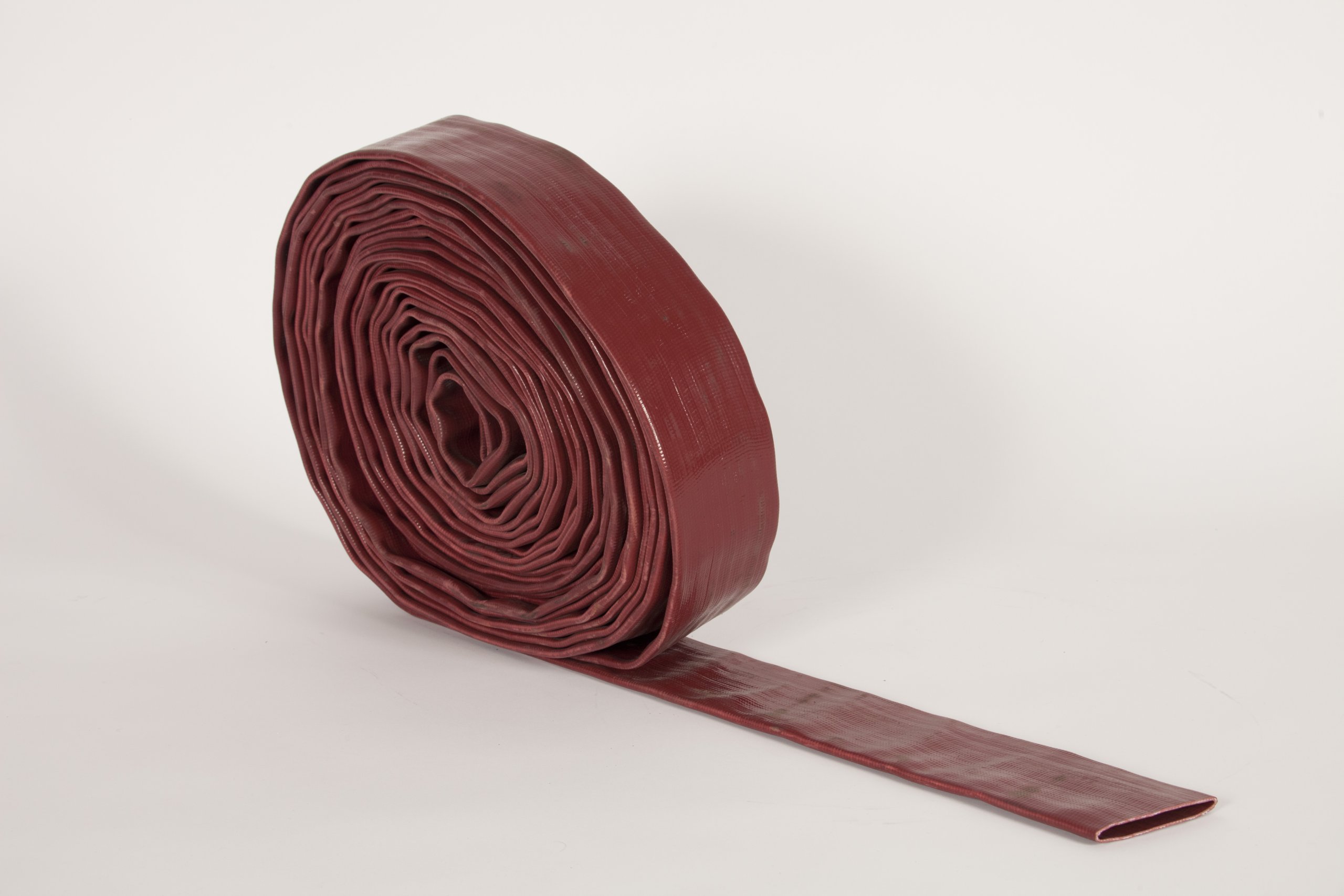

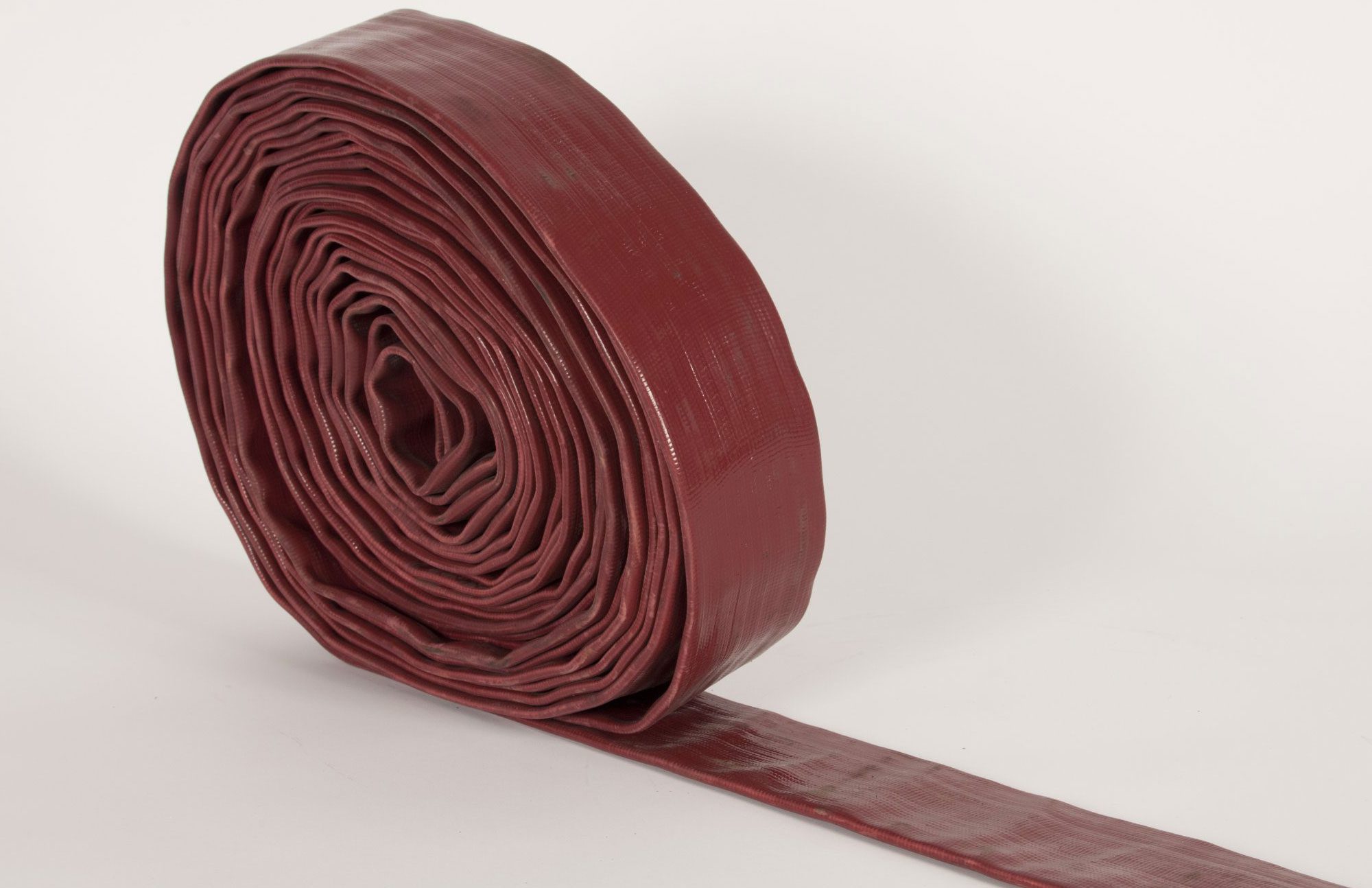

Brown


LAYBR150 1 1/2 1.66 130 - 20 300
LAYBR200 2 2.16 115 - 28 300
LAYBR300 3 3.18 100 - 46 300
LAYBR400 4 4.18 90 - 68 300
LAYBR600 6 6.18 70 - 110 300
LAYBR800 8 8.19 60 - 166 300



Part # OHSLAYBR_____
