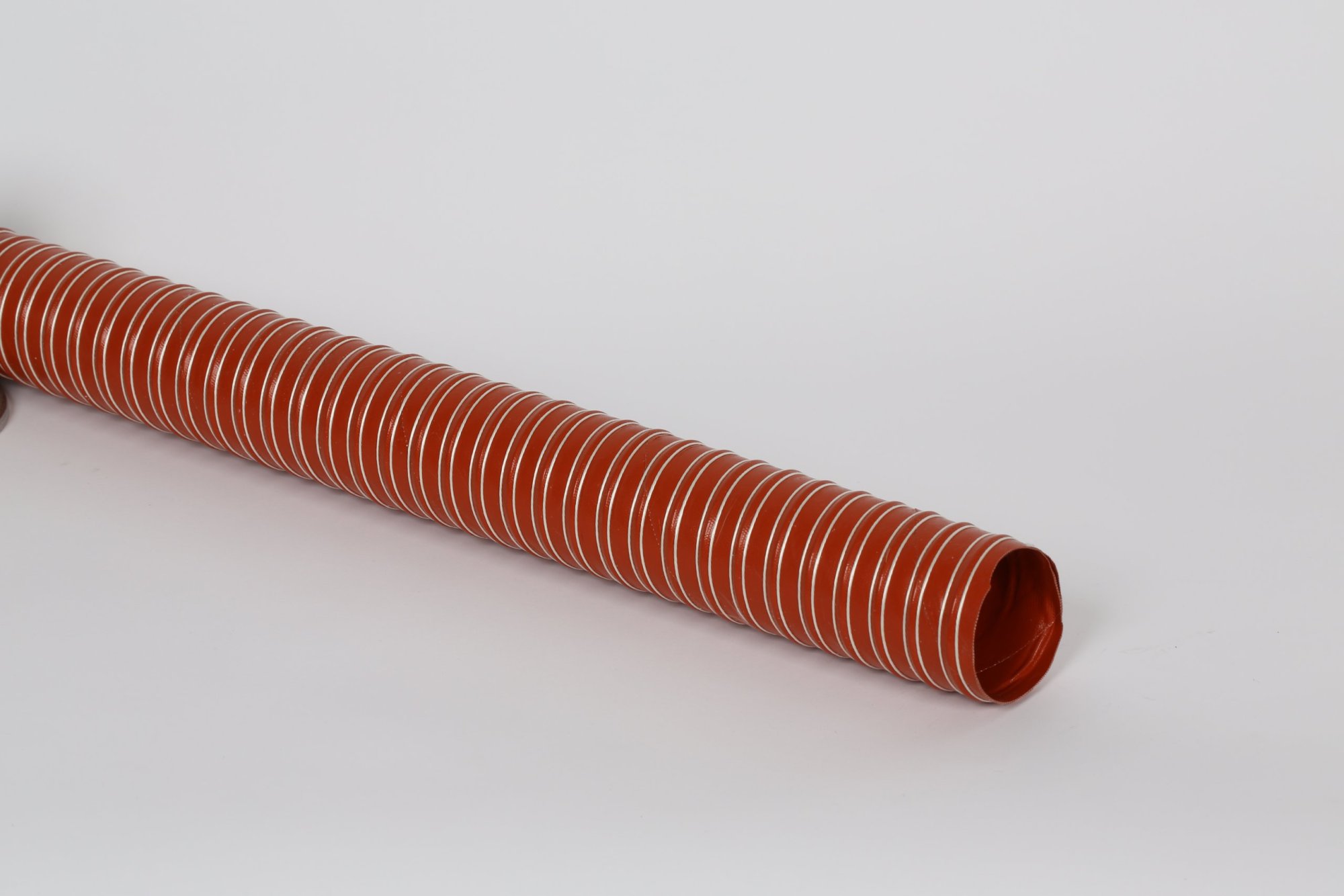

L-9 – HIGH TEMPERATURE DUCTING

Standard duct for high temperature air flow and fume removal. Lightweight, UV and weather resistant

Call for price

Description

Applications:
• Air
• Chemical fumes
• Dust
• Exhaust and ventilation
• Temperature extremes
• Vacuum and suction

Tube:
• Two-ply silicone coated fiberglass, red

Reinforcement:
• Helically wound spring steel wire

Temp Range:
• -75°F to +500°F

Specifications

Part # I.D. (in.) O.D. (in.) Working PSI Bend Radius Weight (lbs/ft) Standard Length (ft)
L9D075 3/4 .87 28 .68 .11 10
L9D100 1 1.12 28 .94 .15 12
L9D125 1 1/4 1.37 26 1.22 .19 12
L9D150 1 1/2 1.62 25 1.45 .22 12
L9D175 1 3/4 1.87 23 1.68 .26 12
L9D200 2 2.12 24 1.88 .33 12
L9D225 2 1/4 2.39 21 2.18 .38 12
L9D250 2 1/2 2.65 20 2.38 .40 12
L9D300 3 3.15 19 2.90 .52 12
L9D350 3 1/2 3.70 18 3.38 .61 12
L9D400 4 4.18 16 3.87 .68 12
L9D450 4 1/2 4.67 15 4.36 .81 12
L9D500 5 5.17 14 4.88 .81 12
L9D550 5 1/2 5.67 13 5.39 1.05 12
L9D600 6 6.17 11 5.89 1.11 12
L9D650 6 1/2 6.69 11 6.38 1.0 12
L9D700 7 7.19 9 6.88 1.46 12
L9D800 8 8.19 7 7.84 1.48 12
L9D900 9 9.19 6 8.86 1.36 12
L9D1000 10 10.23 5 9.82 1.46 12
L9D1100 11 11.23 4 10.83 1.53 12
L9D1200 12 12.23 4 11.82 1.69 12

Additional information

Diameter

1", 1-1/4", 1-1/2", 1-3/4", 2", 2-1/4", 2-1/2", 3", 3-1/2", 3/4", 4-1/2", 4", 5", 5-1/2", 6", 6-1/2", 7", 8", 9", 10", 11", 12"
