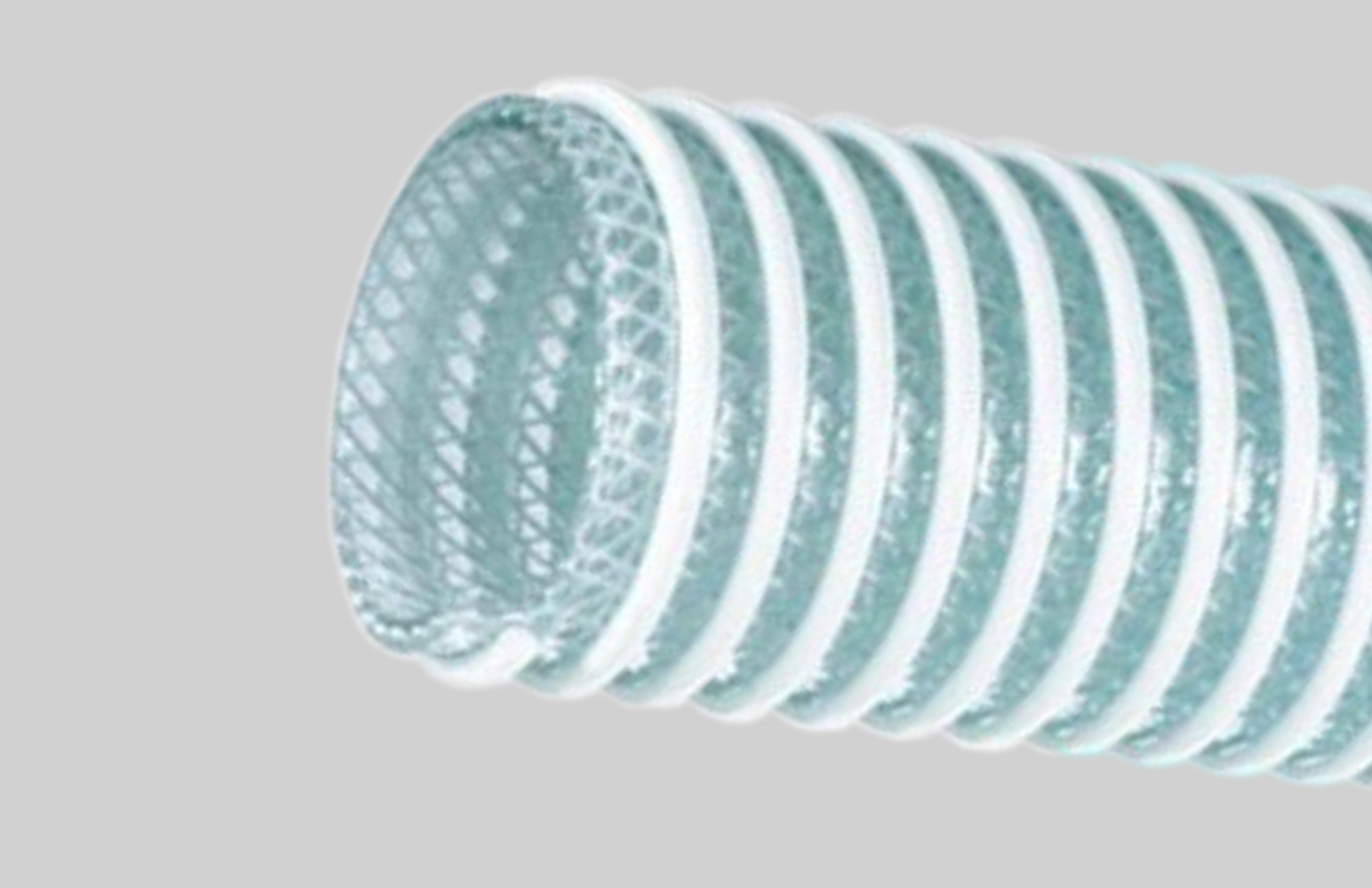

Kanaline FW

Temp. Range: -13°F to 140°F

Applications: Heavy-duty food grade suction and discharge hose for bottling, wine making, canning, dairy, brewing and liquid foods

Construction: Produced entirely of compounds in compliance with FDA and 3-A nontoxic specifications, flexible PVC, rigid PVC helix, synthetic braiding, smooth bore, corrugated O.D.

Features: Lightweight and flexible. External helix provides for easy drag. Rated for both suction and discharge. Clear sidewall permits visual check of material flow

Note: Banding coil must be used for all sizes. 5″ & 6″ sizes are not a stock item. Consult factory for availability .

Categories , Tags , , , , ,

Description

Temp. Range: -13°F to 140°F

Applications: Heavy-duty food grade suction and discharge hose for bottling, wine making, canning, dairy, brewing and liquid foods

Construction: Produced entirely of compounds in compliance with FDA and 3-A nontoxic specifications, flexible PVC, rigid PVC helix, synthetic braiding, smooth bore, corrugated O.D.

Features: Lightweight and flexible. External helix provides for easy drag. Rated for both suction and discharge. Clear sidewall permits visual check of material flow

Note: Banding coil must be used for all sizes. 5″ & 6″ sizes are not a stock item. Consult factory for availability .

Specifications

Inside Diameter
Inches

Outside Diameter
Inches
Pitch
Inches
Minimum Bend Radius
72°F, Inches
Working Pressure
72°F, P.S.I.
Vacuum Rating
72°F, In Hg
Weight
Lbs/Ft
Standard Length
Ft
Part #
1 - 1/2 2.1 0.39 2.5 110 28.0 0.56 60, 100 FW150
2 2.6 0.41 4.0 100 28.0 0.75 60, 100 FW200
3 3.7 0.59 6.3 100 28.0 1.20 60, 100 FW300
4 4.8 0.65 7.1 75 28.0 1.74 60, 100 FW400
5 6.1 0.87 9.2 70 28.0 2.90 - FW500
6 7.3 0.93 10.2 70 28.0 3.88 - FW600
