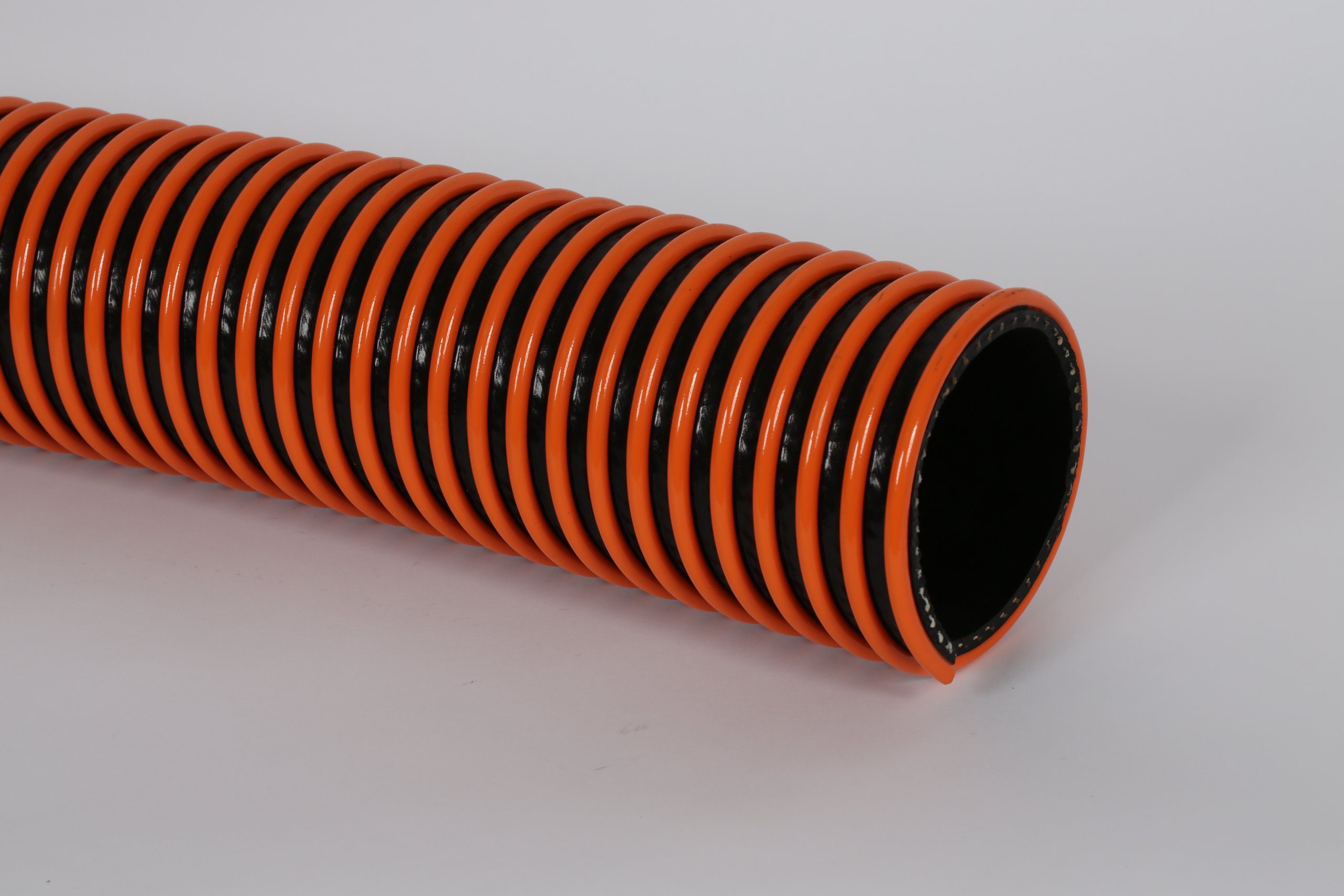

KanaFlex ST120LT – Nitrile Tube

Applications:
• Gasoline tank truck gravity drop for such items as naphtha, kerosene, light and heavy oil, and gasohol
• Rated for up to 40% aromatic content

Tube:
• Vinyl Nitrile – Smooth Bore

Reinforcement:
• Synthetic Braiding

Cover:
• Corrugated Rigid orange PVC Helix – Builtin static grounding wire

Temp Range:
• -30°F to +140°F

Banding Sleeves for KanaFlex ST120LT Drop Hose. Banding sleeves must be used for 3” and 4” sizes to relieve stress behind fitting.

Description

Applications:
• Gasoline tank truck gravity drop for such items as naphtha, kerosene, light and heavy oil, and gasohol
• Rated for up to 40% aromatic content

Tube:
• Vinyl Nitrile – Smooth Bore

Reinforcement:
• Synthetic Braiding

Cover:
• Corrugated Rigid orange PVC Helix – Builtin static grounding wire

Temp Range:
• -30°F to +140°F

Banding Sleeves for KanaFlex ST120LT Drop Hose. Banding sleeves must be used for 3” and 4” sizes to relieve stress behind fitting.

Specifications

Part #

I.D

(in)

O.D

(in.)

Working

PSI

Bend

Radius (in.)

Weight

(lbs/ft)

Standard

Length (ft)

ST120LT200 2 2.68 65 5.0 1.13 100
ST120LT300 3 3.68 65 6.0 1.37 100
ST120LT400 4 4.82 65 8.0 2.16 100

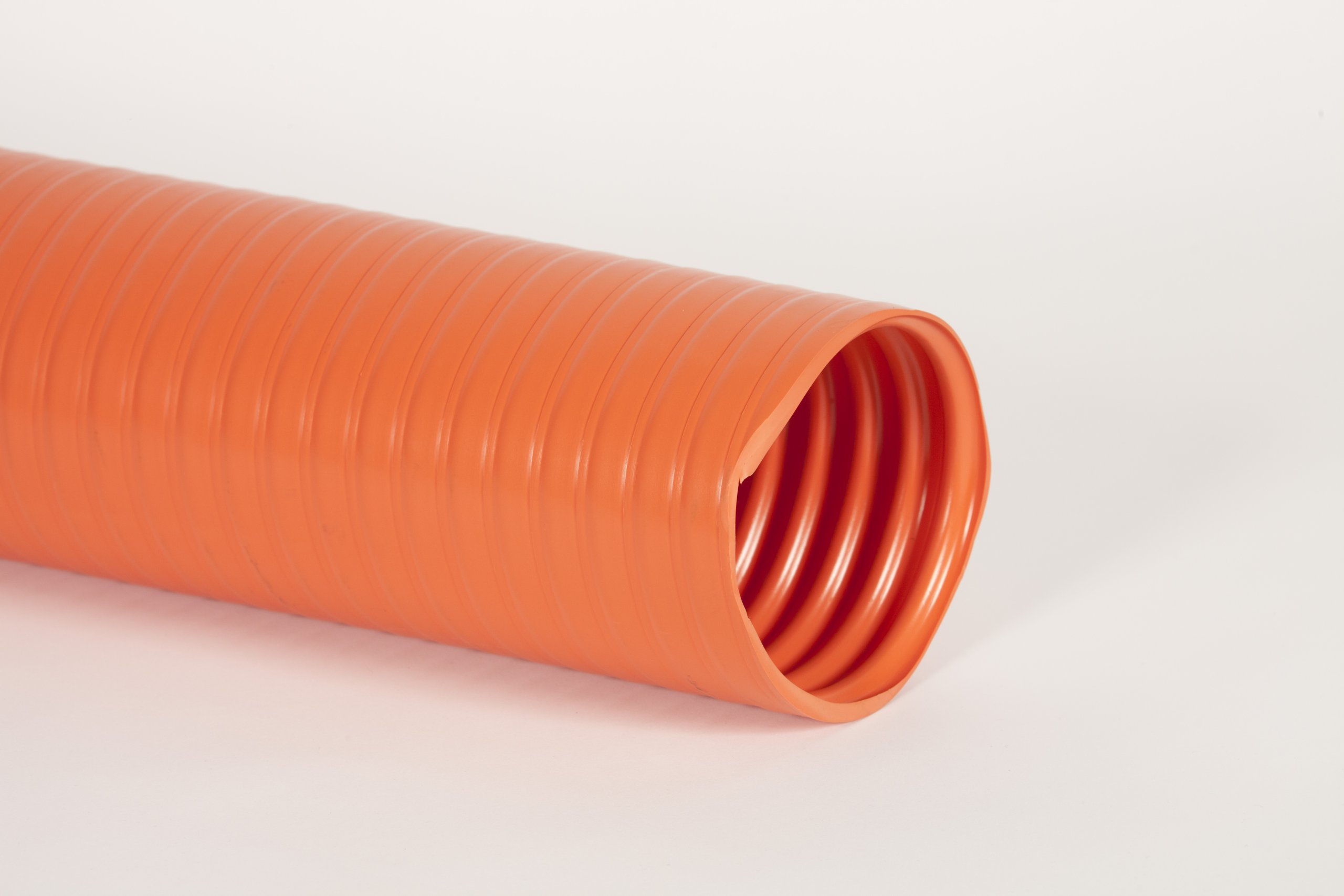

Banding Sleeves for KanaFlex ST120LT Drop Hose. Banding sleeves must be used for 3” and 4” sizes to relieve stress behind fitting.

Part #

I.D

(in.)

Weight

(lbs/ft)

Standard

Length (ft)

BS300 3 1.15 3
BS400 4 1.48 3
