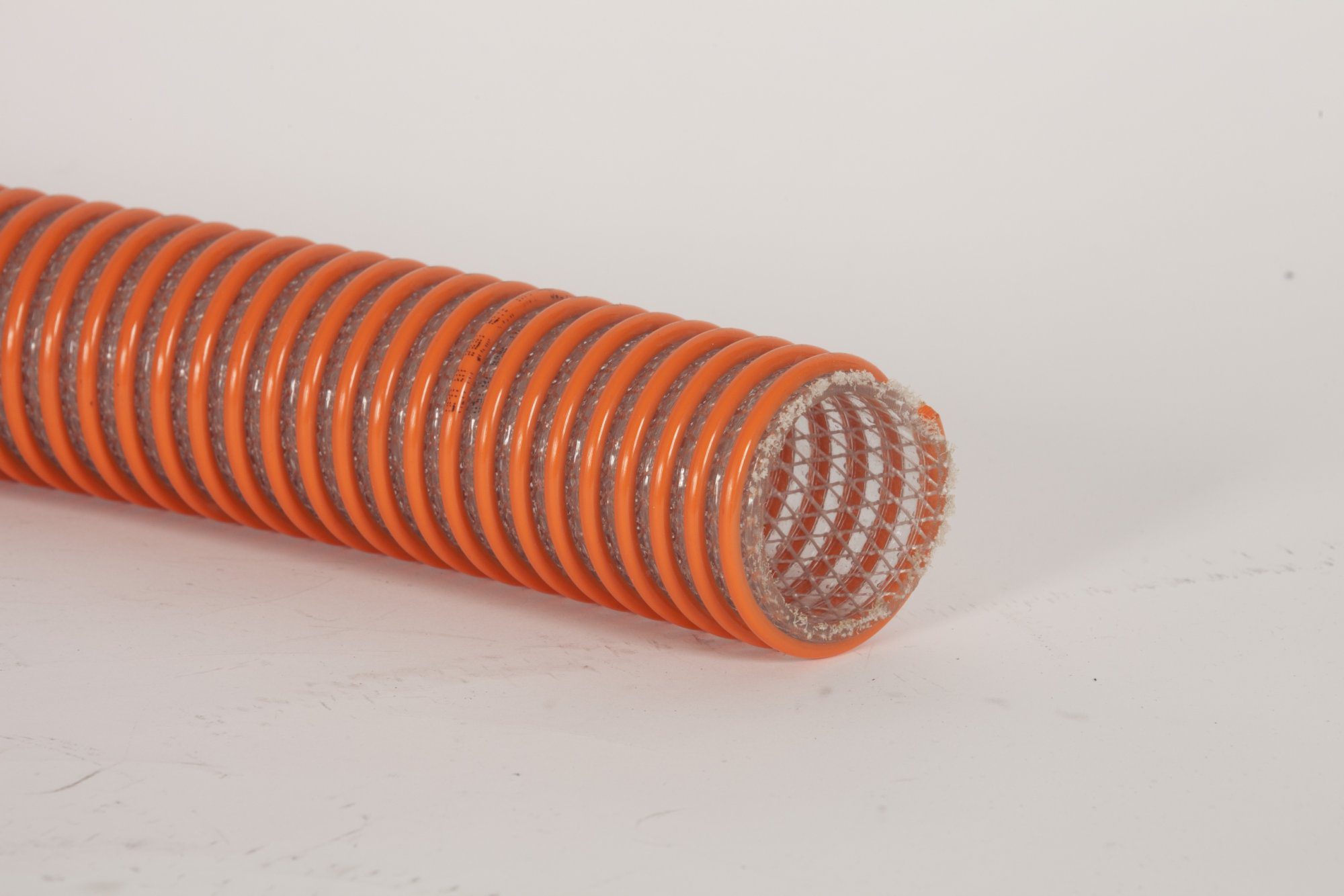

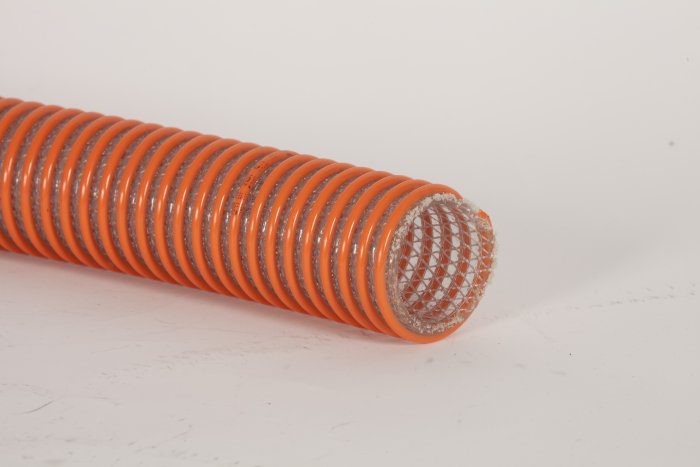

KANAFLEX KANALINE SR

Applications: Heavy Duty suction and discharge hose for use in fish suction and rental/construction pumping
Note: Hose is not food grade

Call for price

Description

Applications:
• Heavy Duty suction and discharge hose for use in fish suction and rental/construction pumping
Construction:
•Flexible PVC, rigid PVC helix, synthetic braiding, smooth bore, corrugated O.D.
Temp Range:
• -13°F to +140°F
Note:
•Note is not a food grade hose. Banding coil must be used.

Specifications

Part #

I.D

(in)

O.D

(in.)

Working

PSI

Bend

Radius (in.)

Weight

(lbs/ft)

Standard

Length (ft)

SR200 2 2.60 100 4.0 0.70 100
SR300 3 3.70 100 6.3 1.13 100
SR400 4 4.80 75 7.1 1.74 100
SR600 6 7.20 70 10.2 3.88 100
SR800 8 9.50 60 15.7 5.54 20, 25, 40
