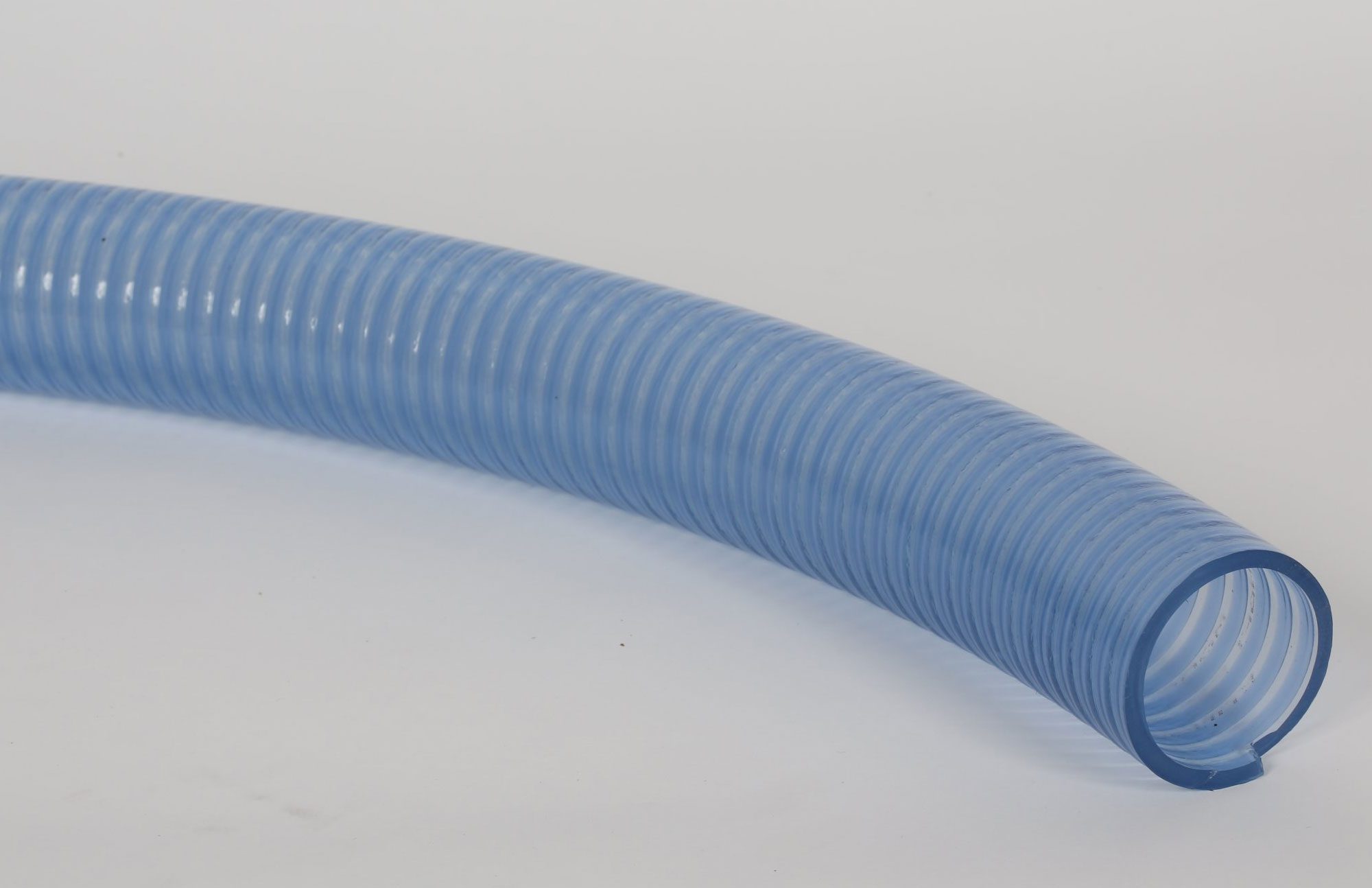

Applications:
• Food grade suction hose for use in canning, dairy, and bottling
• FDA approved materials
• Resists abrasion
Tube:
• Smooth bore flexible clear PVC
Reinforcement:
• Corrugated rigid PVC helix
Temp Range:
• -13°F to +140°F
Applications:
• Food grade suction hose for use in canning, dairy, and bottling
• FDA approved materials
• Resists abrasion
Tube:
• Smooth bore flexible clear PVC
Reinforcement:
• Corrugated rigid PVC helix
Temp Range:
• -13°F to +140°F
| Part # |
I.D (in.) |
O.D (in.) |
Working PSI |
Bend Radius (in.) |
Weight (lbs/ft) |
Standard Length |
| 210HFG075 | 3/4 | .96 | 86 | 1.9 | .16 |
100 |
| 210HFG100 | 1 | 1.25 | 86 | 1.9 | .26 | 100 |
| 210HFG125 | 1 1/4 | 1.54 | 79 | 2.7 | .37 | 100 |
| 210HFG150 | 1 1/2 | 1.82 | 72 | 2.8 | .44 | 100 |
| 210HFG200 | 2 | 2.39 | 72 | 3.9 | .74 | 100 |
| 210HFG250 | 2 1/2 | 2.93 | 72 | 5.0 | 1.01 | 100 |
| 210HFG300 | 3 | 3.43 | 62 | 7.0 | 1.21 | 100 |
| 210HFG400 | 4 | 4.53 | 55 | 9.1 | 2.01 | 100 |
| Inner Diameter | 1-1/4", 1-1/2", 1", 2", 2-1/2", 3", 3/4", 4" |
|---|
