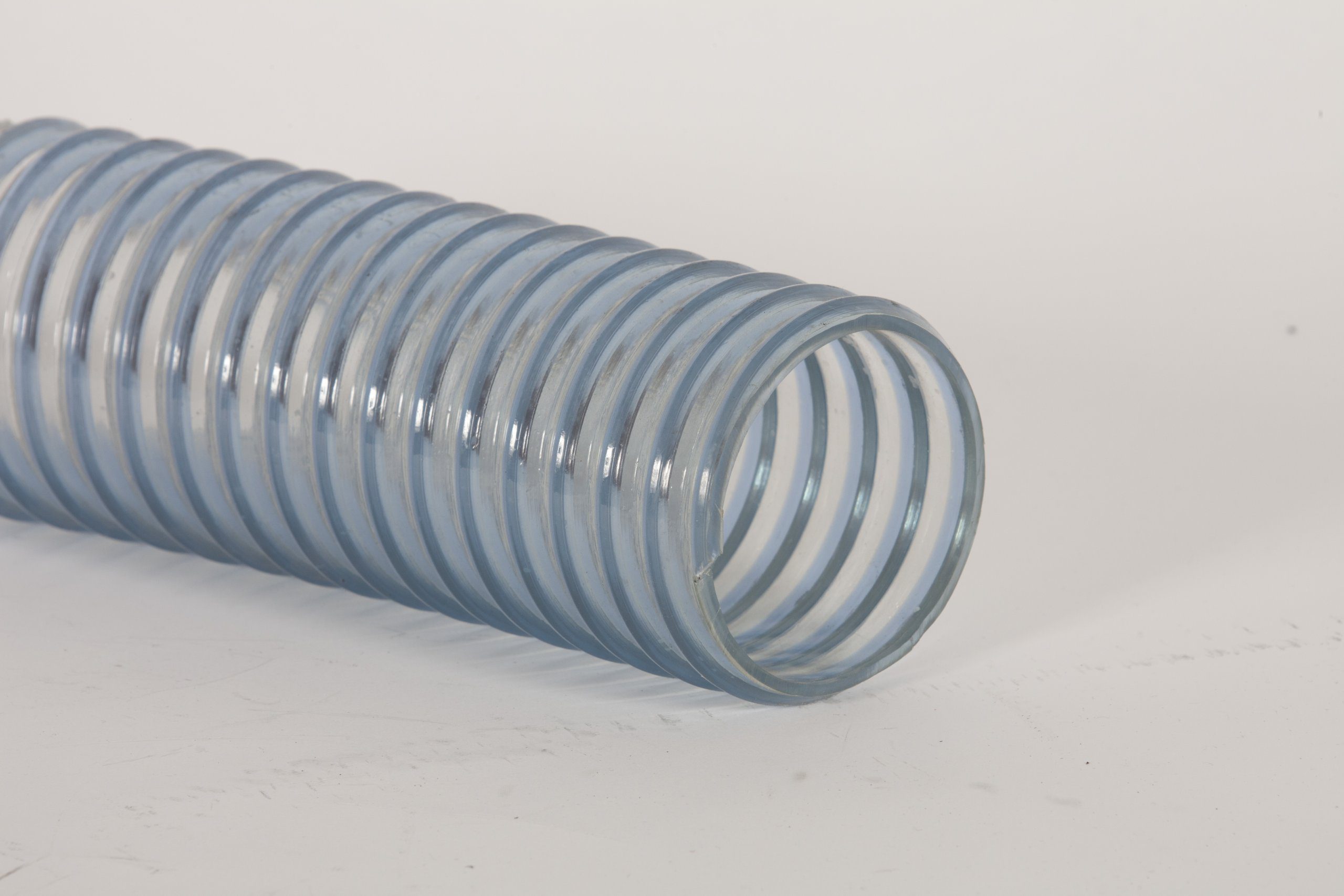

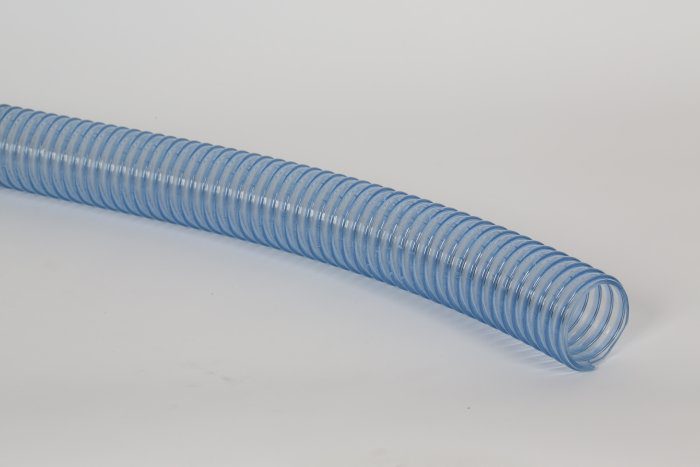

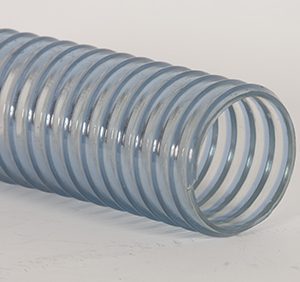

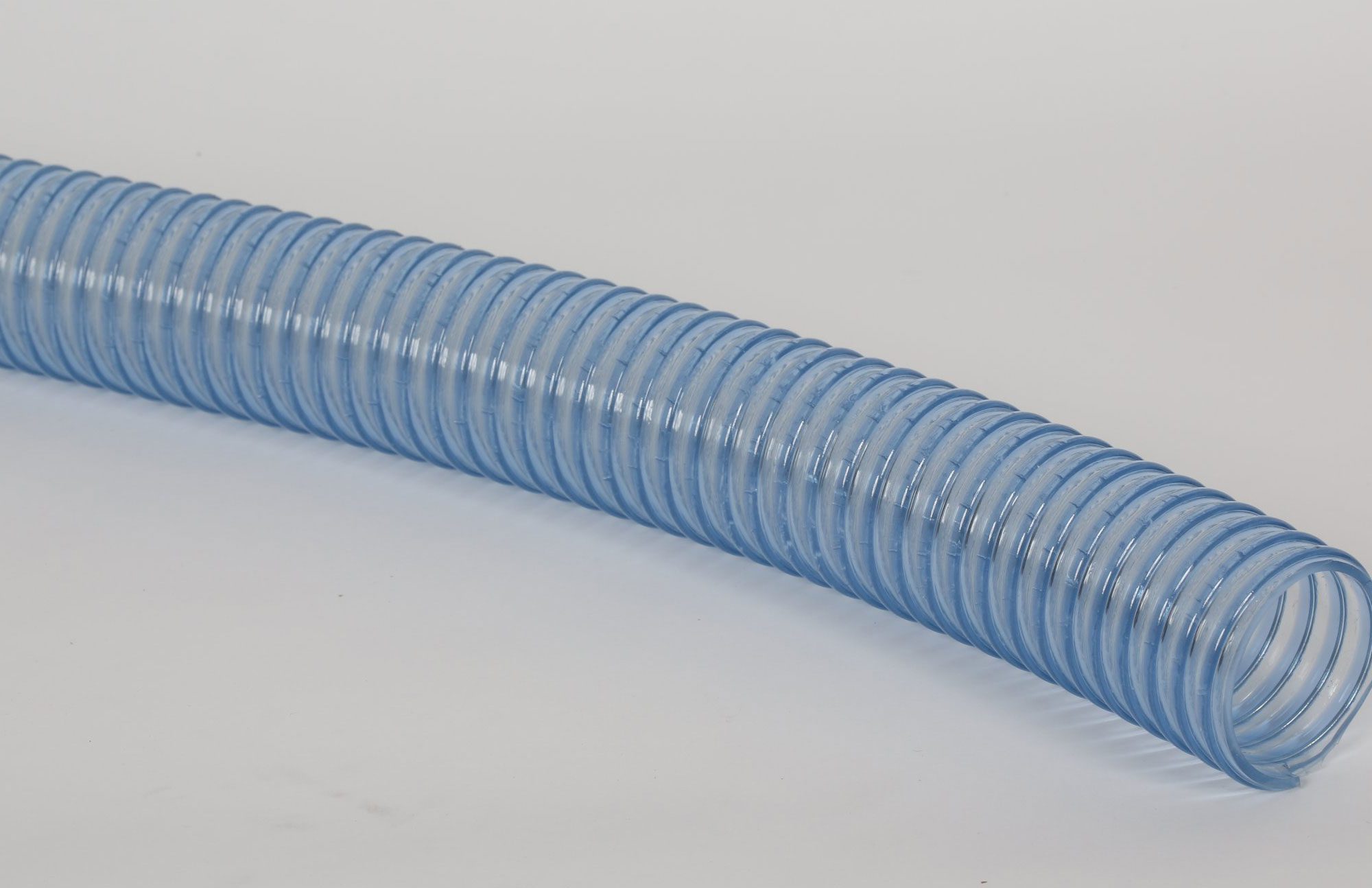

KANAFLEX 200 SFG FOOD HOSE

Call for price
Category:

Description

Applications:
• Food Grade suction hose for use in canning, dairy, and bottling
• FDA approved materials
• Resists abrasion

Tube:
• Smooth bore flexible clear PVC

Reinforcement:
• Corrugated rigid PVC helix

Temp Range:
• -13°F to +140°F

Specifications

Part #

I.D

(in.)

O.D

(in.)

Working

PSI

Bend

Radius (in.)

Weight

(lbs/ft)

Standard

Length

200SFG100 1 1.25 50 1.5 .18 100
200SFG125 1 1/4 1.52 45 2.0 .22 100
200SFG150 1 1/2 1.81 45 2.5 .35 100
200SFG200 2 2.36 40 4.0 .50 100
200SFG250 2 1/2 2.87 35 4.5 .68 100
200SFG300 3 3.50 35 6.0 1.00 100
200SFG400 4 4.63 30 8.0 1.52 100

Additional information

Inner Diameter

1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"
