KanaFlex 180AR Material Hose

Features & Specifications of KanaFlex 180AR Material Hose

Applications:
• Heavy duty abrasion resistant suction hose for vacuum trucks
• Transfer of abrasives such as crushed rock, sand, pea gravel,
cement powder, dry fertilizer, and grains
• Lightweight, flexible, extreme resistance to abrasion and
weather
Tube:
• Smooth bore SBR rubber blended with static carbon
Reinforcement:
• Rigid PVC helix
Cover:
• Corrugated SBR rubber
Temp Range:
• -40°F to +140°F

Request Quote
Email for Quote
Call for Quote
Categories , , ,

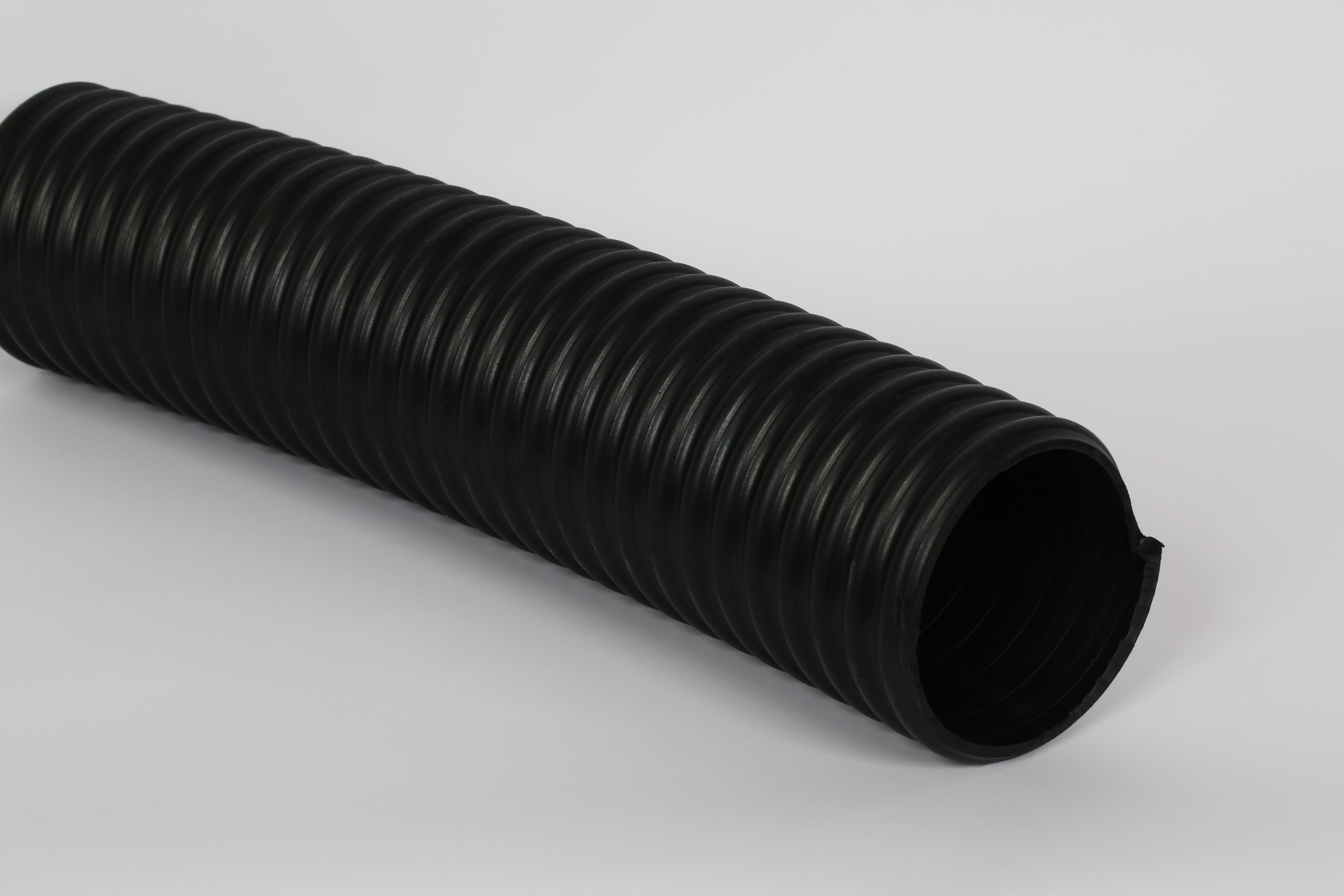

KanaFlex 180AR Material Hose
KanaFlex 180AR Material Hose

Description

Features & Specifications of KanaFlex 180AR Material Hose

Applications:
• Heavy duty abrasion resistant suction hose for vacuum trucks
• Transfer of abrasives such as crushed rock, sand, pea gravel,
cement powder, dry fertilizer, and grains
• Lightweight, flexible, extreme resistance to abrasion and
weather
Tube:
• Smooth bore SBR rubber blended with static carbon
Reinforcement:
• Rigid PVC helix
Cover:
• Corrugated SBR rubber
Temp Range:
• -40°F to +140°F

Specifications

Part #

I.D

(in.)

O.D

(in.)

Working

PSI

Bend

Radius (in.)

Weight

(lbs/ft)

Standard

Length
180AR125 1 1/4 1.57 45 2.0 .31 100
180AR150 1 1/2 1.82 45 2.0 .37 100
180AR200 2 2.35 40 2.5 .50 100
180AR250 2 1/2 2.95 35 2.5 .88 100
180AR300 3 3.5 35 3.0 1.10 100
180AR350 3 1/2 4.11 30 4.0 1.35

100
180AR400 4 4.63 30 4.5 1.77 100
180AR500 5 5.76 30 5.0 2.47 100
180AR600 6 6.73 30 9.2 3.08 100
180AR700 7 7.83 30 14.0 4.10 50
180AR800 8 9.04 30 15.0 5.65 50
180AR1000 10 11.18 28 30.0 8.88 20
180AR1200 12 13.31 25 40.0 10.43 20

Additional information

Inner Diameter

2", 3", 4", 5", 6", 8", 10"
