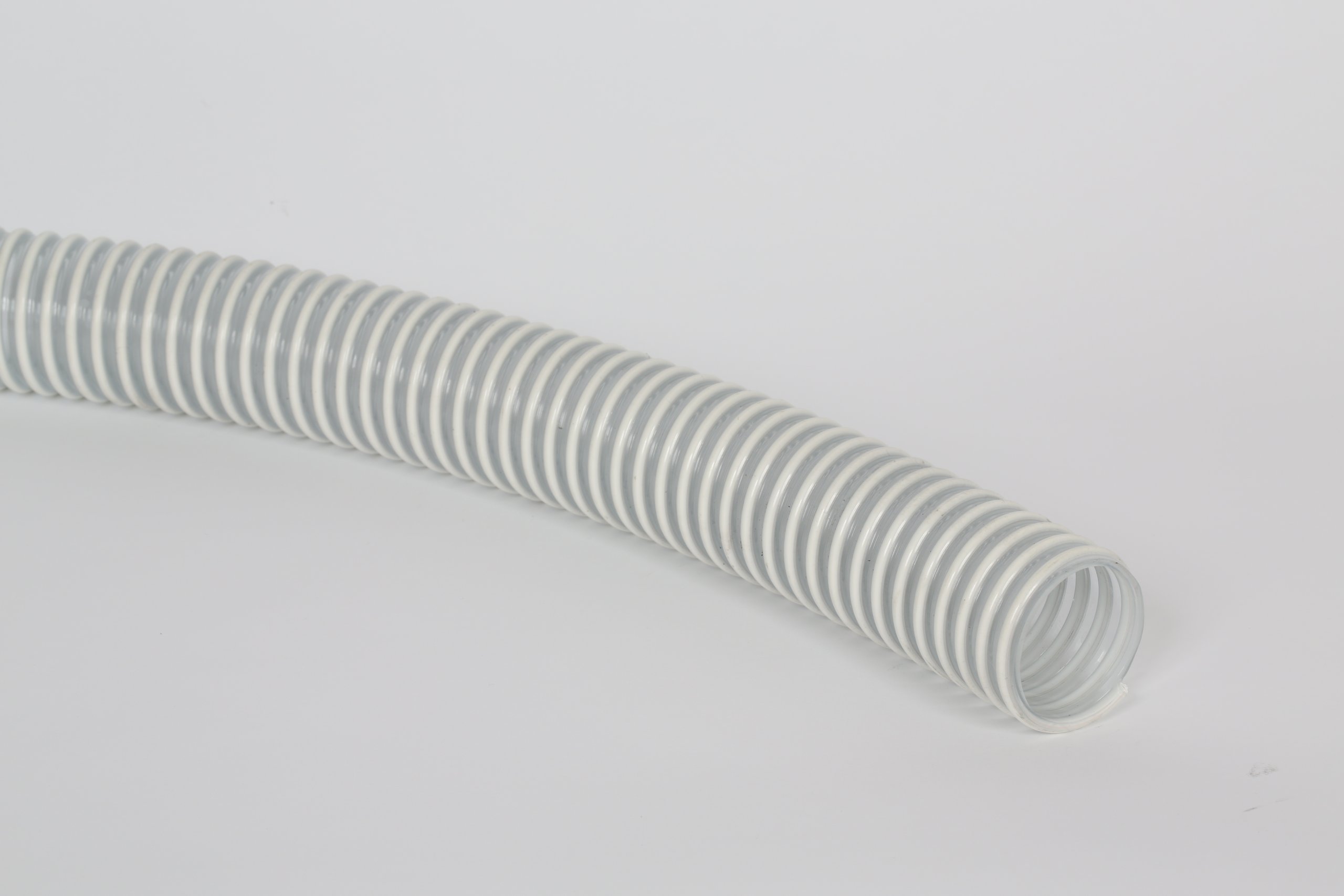

KanaFlex 100CL Water Suction & Discharge Hose

Applications:
• General water suction hose
• Highly flexible

Tube:
• Smooth bore clear flexible PVC

Reinforcement/Cover:
• Corrugated white rigid PVC helix

Temp Range:
• -13°F to +140°F

Description

Applications:
• General water suction hose
• Highly flexible

Tube:
• Smooth bore clear flexible PVC

Reinforcement/Cover:
• Corrugated white rigid PVC helix

Temp Range:
• -13°F to +140°F

Specifications

Part #

I.D

(in.)

O.D

(in.)

Vacuum

72°F, in.Hg

Working

PSI

Bend

Radius (in.)

Weight

(lbs/ft)

Standard

Length (ft)

100CL100 1 1.25 29.8 50 1.5 .18 100
100CL125 1  1/4 1.52 29.8 45 2.0 .22 100
100CL150 1  1/2 1.81 29.8 45 2.5 .35 100
100CL200 2 2.36 29.8 40 3.0 0.50 100
100CL250 2 1/2 2.87

29.8

35 4.5 .68 100
100CL300 3 3.50 29.8 35 6.0 1.00 100
100CL400 4 4.63 29.8 30 8.0 1.52 100
100CL500 5 5.63 29.8 30 9.0 2.45 100
100CL600 6 6.85 28.0 30 11.0 3.10 100
100CL800 8 9.04 28.0 30 16.0 5.38 25
100CL1000 10 11.26 28.0 30 30.0 8.88 20
