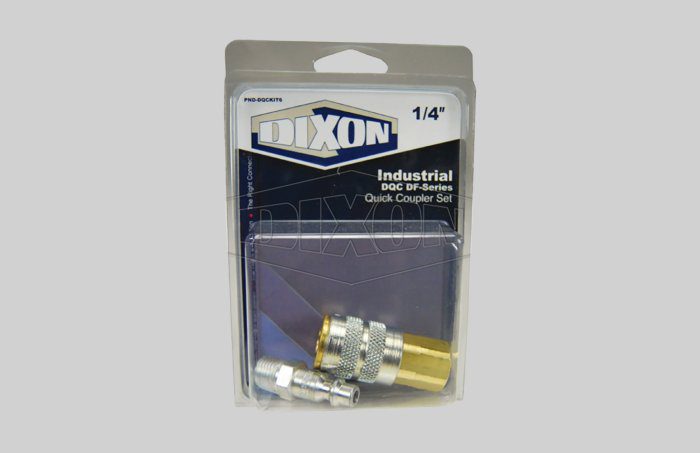

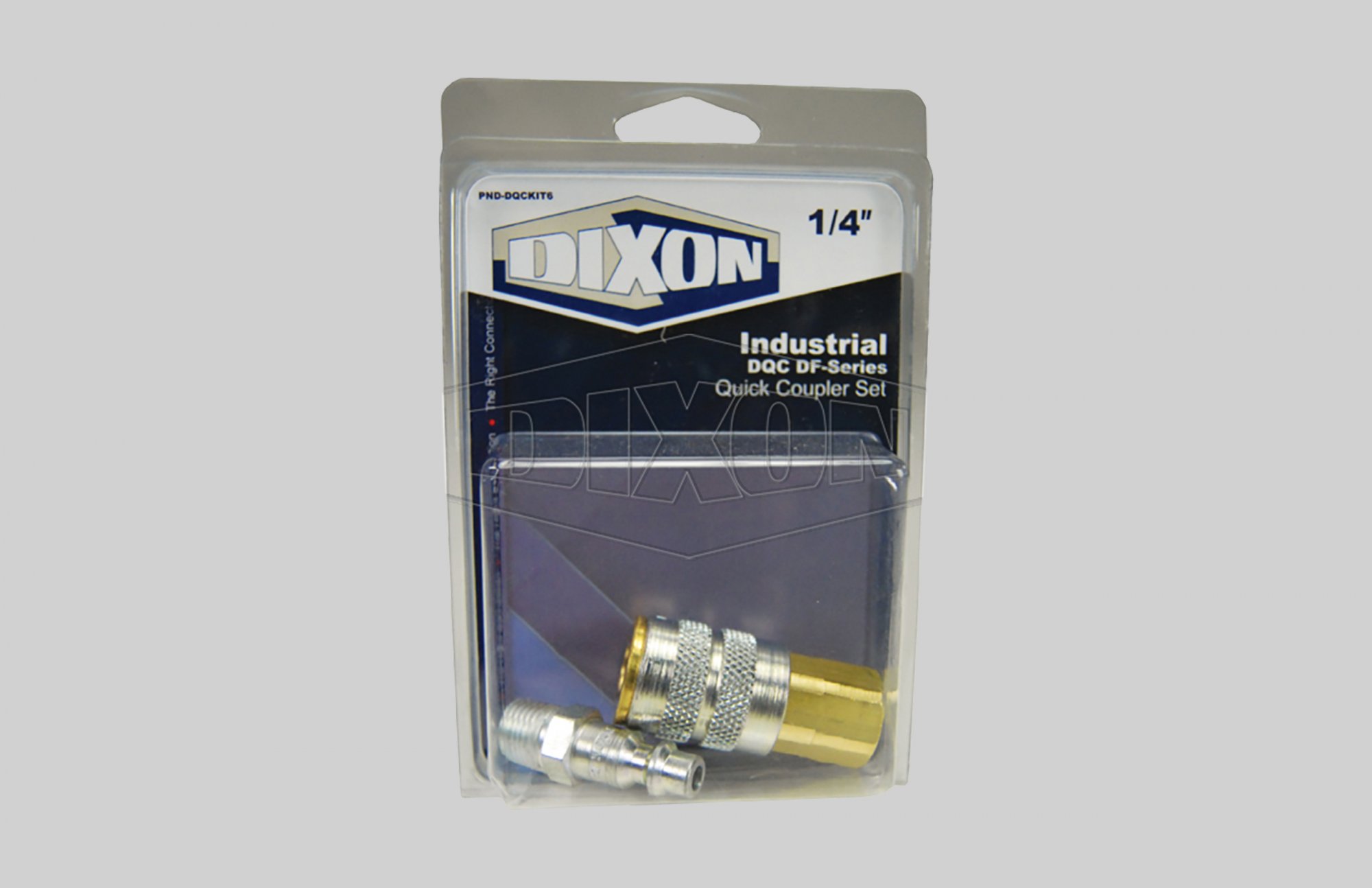

INDUSTRIAL DQC DF-SERIES QUICK COUPLER SET DIXON Existing customers can log in to their account for additional savings Call for price Categories: Air, Air Fittings, Fittings, Hose Fittings Description Specification Description Specifications Rated pressure for connected Brass Coupler & Brass Plug: 300 PSI (20 bar) Maximum Working and 8,500 PSI (586 bar) Burst Rated pressure for connected Brass Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 9,000 PSI (620 bar) Burst Rated pressure when connected with Steel F-Series Manual Couplers: 500 PSI (35 bar) Maximum Working and 6,500 PSI (448 bar) Burst Rated pressure when connected with Brass F-Series Manual Couplers: 500 PSI (35 bar) Maximum Working and 9,000 PSI (620 bar) Burst Construction Machined components are manufactured using solid bar stock. Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life. Nitrile (Buna-N) seals are standard Steel componentry is plated using ROHS Compliant Trivalent Chrome. Steel sleeve and steel tubular valve Specifications Part Number PND-DQCKIT5 Description (Case Qty 6 Required) Includes 2FF2-B, D2M2 Material Coupler - Brass,Plug - Steel Thread NPTF Thread Size 1/4" Maximum OD Coupler - 0.93",Plug - 0.79" (Coupler - 23.5mm,Plug - 20.1mm) Body Size 1/4" Hex Coupler - 3/4",Plug - 11/16" Length Coupler - 2.07",Plug - 1.66" (Coupler - 52.6mm,Plug - 42.2mm) Pressure Rating See Product Details Temperature Range -40°F to +250°F (-40°C to +121°C) Mandatory Pkg/Box Qty 6 Weight lb 0.3683 Related products Pistol Grip Blow Gun “Air King” Universal Couplings – Blank Ends Dust Caps – Domestic “Air King” Universal Couplings – Hose Ends
