Gates Stallion

Application:
This hose handles the majority of common industrial chemicals in pressure, gravity flow and suction services.

Tube:
Type T (FEP) Teflon or Neoflon

Reinforcement:
Synthetic, high tensile textile with steel wire helix

Cover:
Type P (EPDM) Blue corrugated with red spiral stripe

Temp Range:
-40°F to +250°F

Request Quote
Email for Quote
Call for Quote
Categories , Tags , , , ,

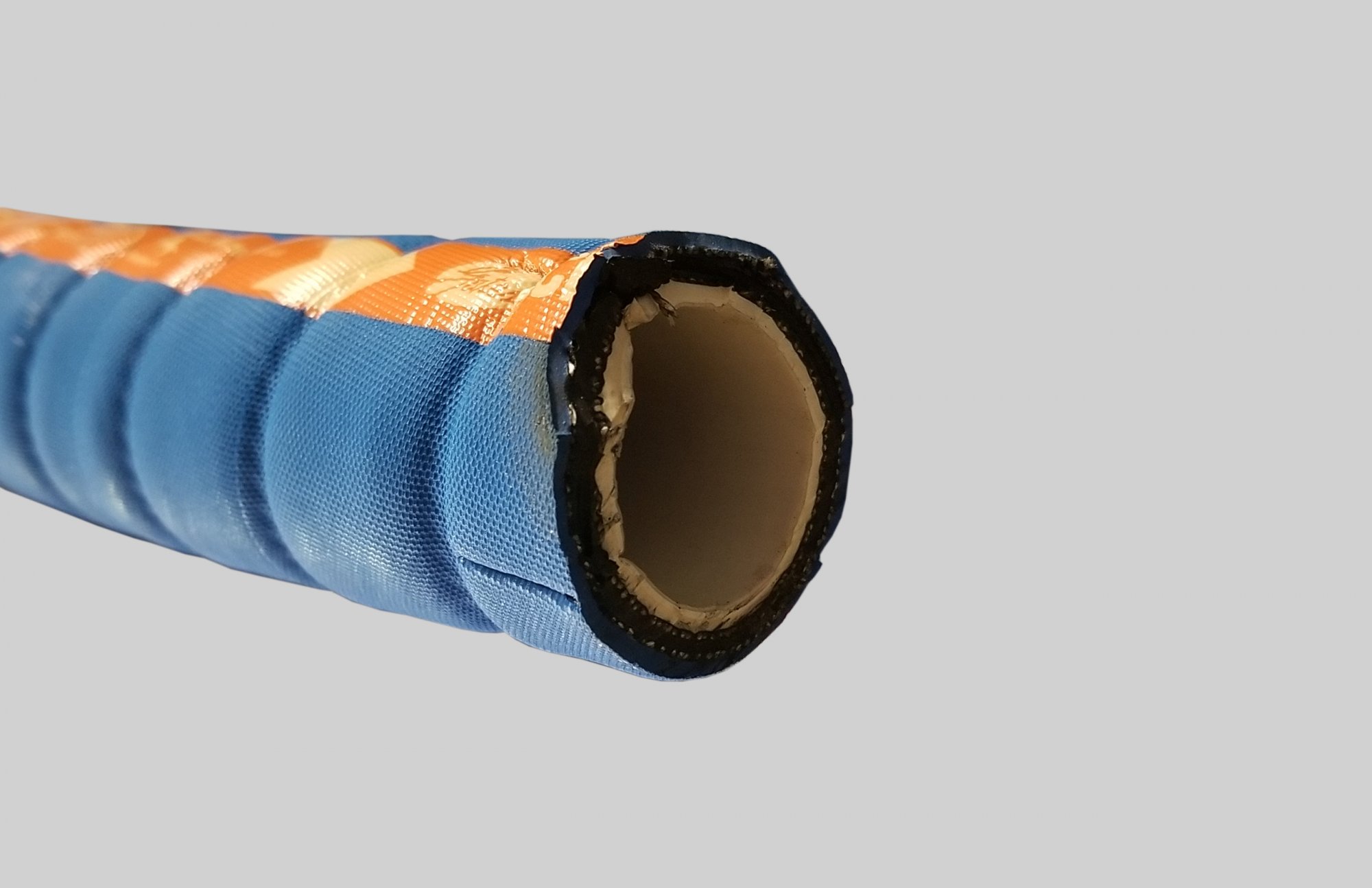

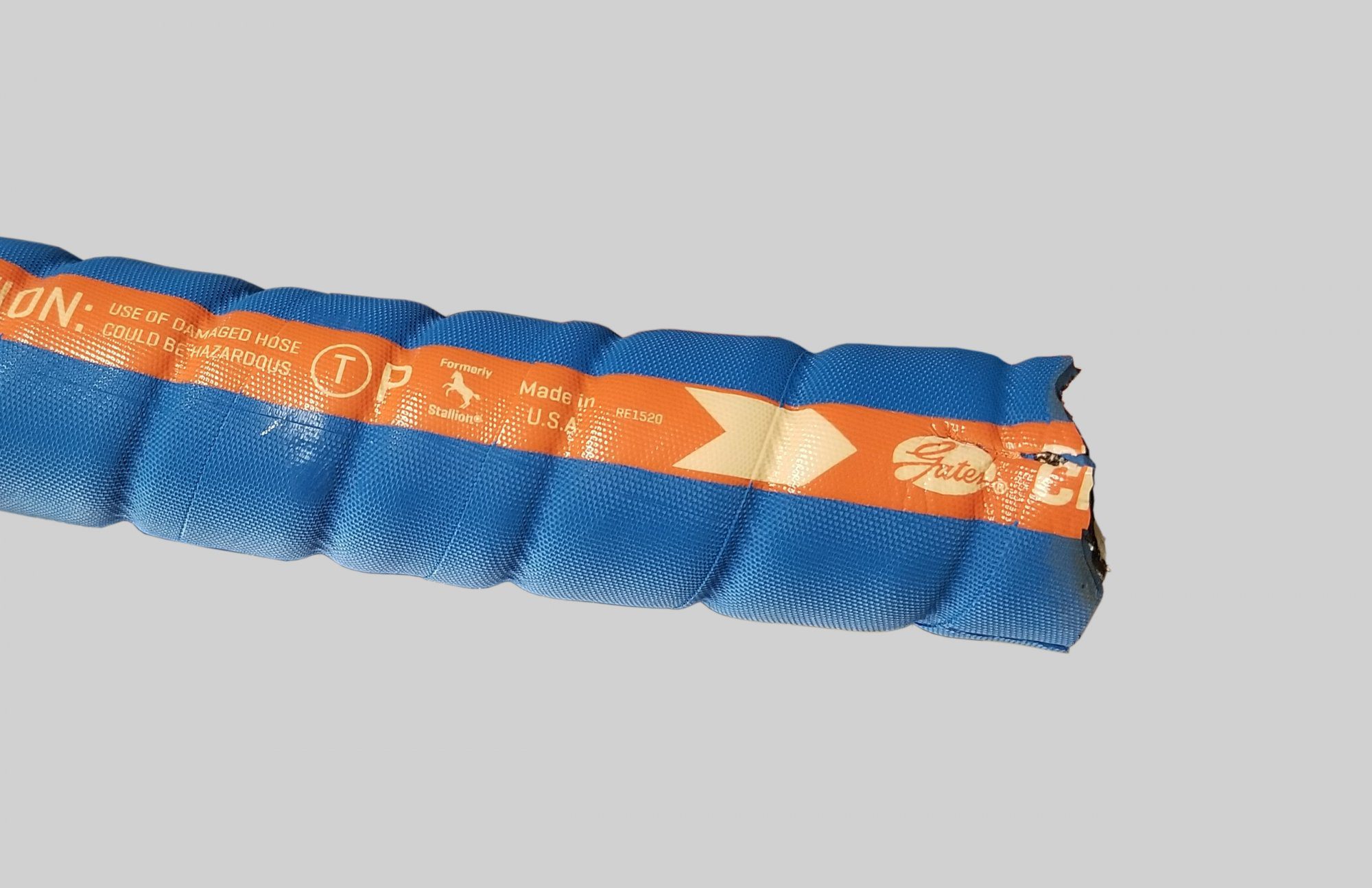

Gates Stallion
Gates Stallion - Image 2

Description

Application:
This hose handles the majority of common industrial chemicals in pressure, gravity flow and suction services.

Tube:
Type T (FEP) Teflon or Neoflon

Reinforcement:
Synthetic, high tensile textile with steel wire helix

Cover:
Type P (EPDM) Blue corrugated with red spiral stripe

Temp Range:
-40°F to +250°F

Specifications

Part #

 I.D. (in.) O.D. (in.) Working PSI Bend Radius (in.) Weight (lbs/ft) Standard Length
STAL075 3/4" 1.20" 200 4.0 .31 150
STAL100 1" 1.53" 200 5.5 .55 150
STAL125 1-1/4" 1.88" 200 6.0 .67 150
STAL150 1-1/2" 2.13" 200 7.5 .89 150
STAL200 2" 2.63" 200 8.0 1.16 150
STAL250 2-1/2" 3.13" 200 8.0 1.42 150
STAL300 3" 3.63" 200 9.0 1.68 150
STAL400 4" 4.67" 150 15.0 2.26 150
STAL600 6" 7.00" 150 30.0 7.21 150
