FloTech Checkmate Overfill Detection Probe

Use

Overfill Only

Features

  • Replacement black & white 2 wire overfill detection probe

Use

  • Overfill Only

Features

  • The FloTech thermo-optic 2 wire probe is electronically and mechanically compatible for drop-in replacement of other commonly used 2-wire probes with black and white wires. Providing the fast response and reliability of optic technology in a thermistor application.

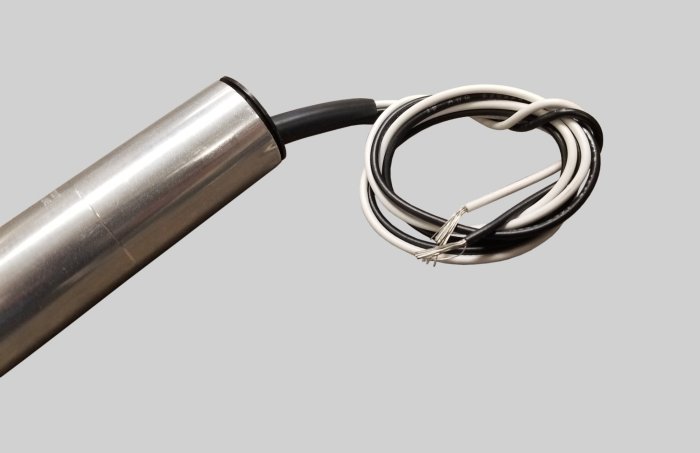

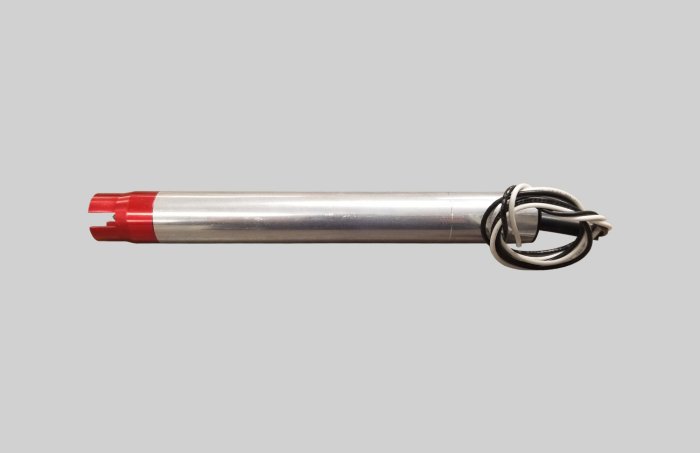

  • 7″ black and white 2 wire overfill detection probe

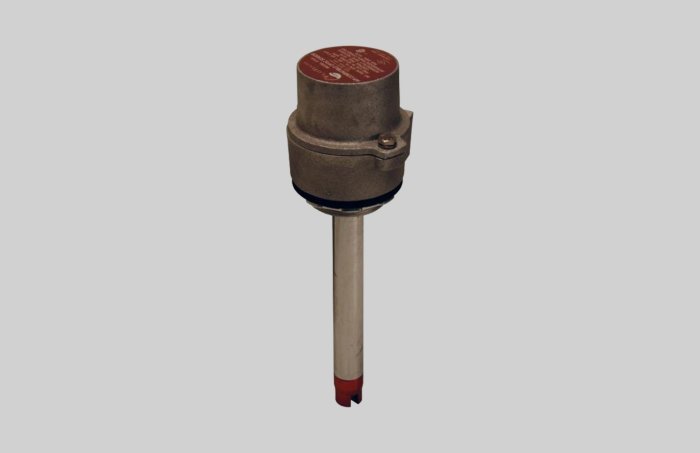

  • The sensor housing contains a black and white 2 wire probe in a cast aluminum housing. The sensor housing has a 2″ NPT mounting thread, heavy duty stainless steel hardware, and FKM probe seal.

Construction

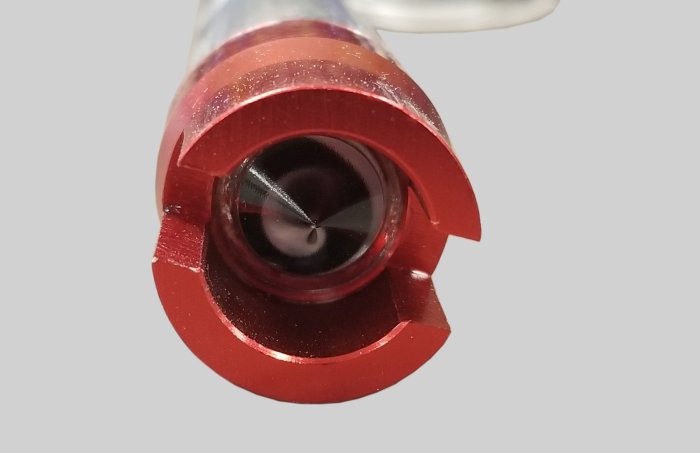

  • Red tip indicates a genuine FloTech™ overfill sensor

Installation

  • Install into either a 2″ NPT threaded port or 2-3/8″ diameter tank opening using the gasket and locking nut provided.

Description

Use

Overfill Only

Features

  • Replacement black & white 2 wire overfill detection probe

Use

  • Overfill Only

Features

  • The FloTech thermo-optic 2 wire probe is electronically and mechanically compatible for drop-in replacement of other commonly used 2-wire probes with black and white wires. Providing the fast response and reliability of optic technology in a thermistor application.
  • 7″ black and white 2 wire overfill detection probe
  • The sensor housing contains a black and white 2 wire probe in a cast aluminum housing. The sensor housing has a 2″ NPT mounting thread, heavy duty stainless steel hardware, and FKM probe seal.

Construction

  • Red tip indicates a genuine FloTech™ overfill sensor

Installation

  • Install into either a 2″ NPT threaded port or 2-3/8″ diameter tank opening using the gasket and locking nut provided.

Specifications

Part # Includes Weight lb.
FT150 7" Probe 0.4100
FT150-12 12" Probe 0.5900
FT150-18 18" Probe 0.7500
Part # Includes Weight lb. Fuel Compatibility
FT151 7" Probe 2.1600 Gasoline, Diesel, USLD, Crude Oil, E10, E20, E85, E100, B2, B20, B100
FT151-12 12" Probe 2.3900
FT151-18 18" Probe 2.6400
