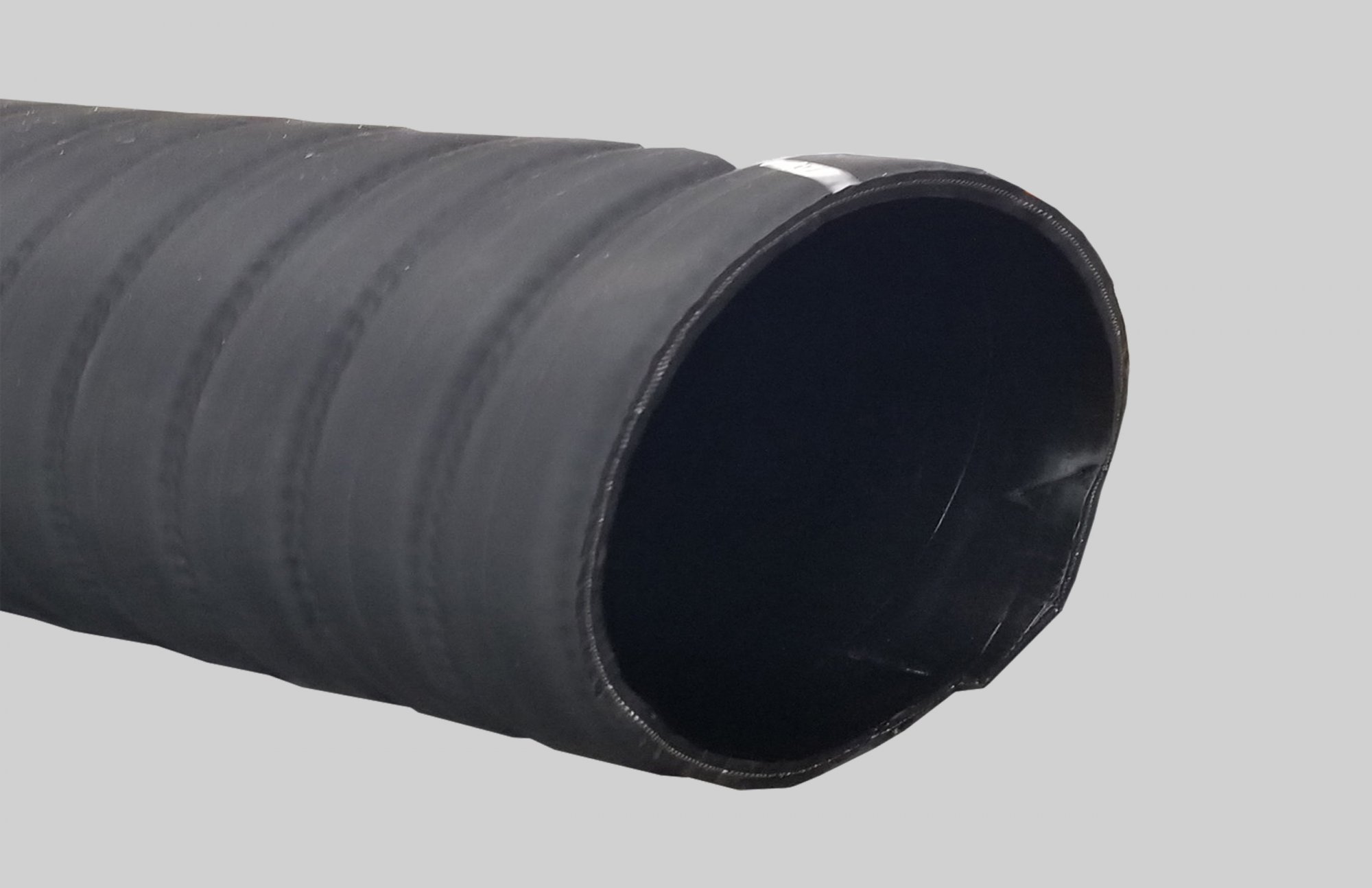

Boom Hose – Hardwall

Applications:
• Vacuum hose for handling abrasive material like dust, rock granular material and wood fibers
Tube:
• Black Chemituf 3/16″ tube with static dissipation properties
Reinforcement:
• Spiral-plied synthetic fabric with helix wire
Cover:
• Black SBR
Temp Range:
• -25°F to +180°F

Description

Applications:
• Vacuum hose for handling abrasive material like dust, rock granular material and wood fibers
Tube:
• Black Chemituf 3/16″ tube with static dissipation properties
Reinforcement:
• Spiral-plied synthetic fabric with helix wire
Cover:
• Black SBR
Temp Range:
• -25°F to +180°F

Specifications

Part #

I.D (in.)

O.D (in.)

Working  PSI

Bend Radius (in.)

Weight (lbs/ft)

Standard Length

GDYROHSIVH600PG025 6 6.85 150 24.0 5.68 As Required
GDYROHSIVH800PG025 8 8.88 150 30.0 8.13 As Required

Additional information

Inner Diameter

6", 8", 10"
