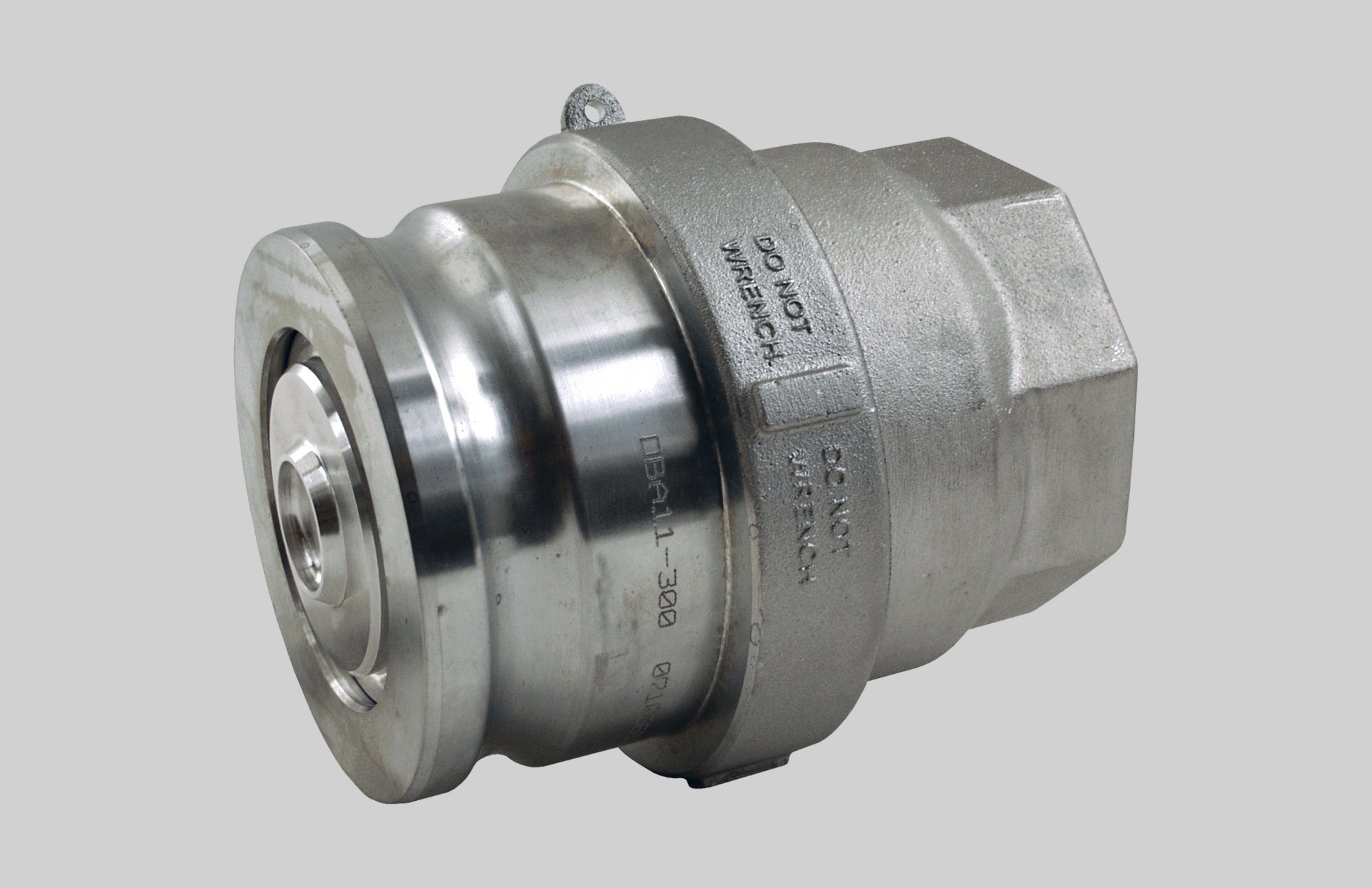

BAYLOC™ DRY DISCONNECT ADAPTER X FEMALE NPT Existing customers can log in to their account for additional savings Call for price Categories: Hose Fittings, Cam & Groove, Cam & Groove Fittings, Fittings Description Specification Description Applications Dry disconnects help prevent spillage from normal or accidental disconnects. A spring loaded sealing device is designed to “snap” closed should the valve become disconnected with the poppet open, significantly limiting liquid loss. Note: The FKM, PTFE Encapsulated Silicone, EPDM & FFKM seals can be used to transfer hazardous fluids Use Use with DBC or D2C style couplers Use with standard cam and groove dust caps sized one size larger than the dry disconnect size Use Cam & Groove Dust Cap Size: 2″ Features Two-piece adapter design for easy rebuilding of adapters Specifications Part Number DBA** Description Cam & Groove Style Material Zinc/Aluminum, Stainless Steel, Seal Buna. FKM, FFKM, PTFE Encapsulated Silicone, EPDM, PTFE Encapsulated FKM, FKM-B, FKM-GFLT Female Thread NPT Female Thread Sizes 1-1/2", 2", 3" Adapter Sizes 2", 2-1/2", 4" Maximum Operating Pressures 120 PSI at 70°F(21°C) 150 PSI at 70°F(21°C) 210 PSI at 70°F(21°C) Related products ANSI 150# Flange Gaskets Cam Couplings – Domestic F “Air King” Universal Couplings – Male NPT Ends “Air King” Universal Couplings – Hose Ends
