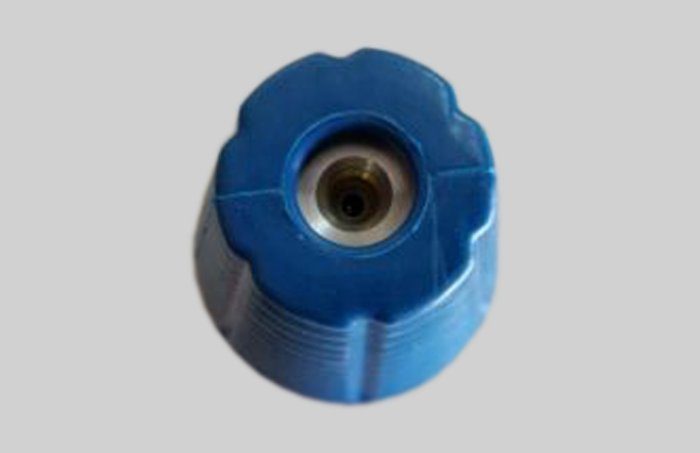

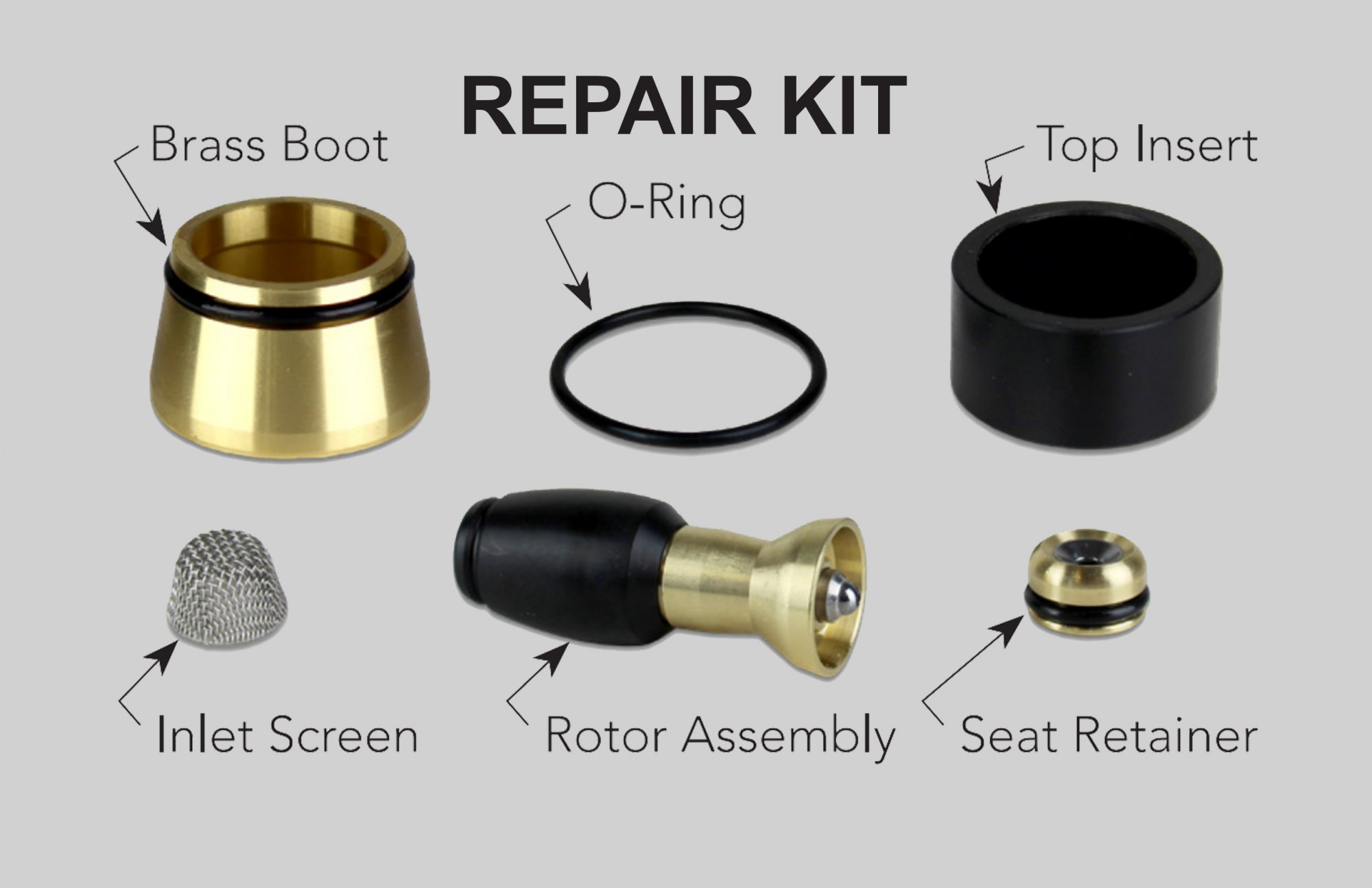

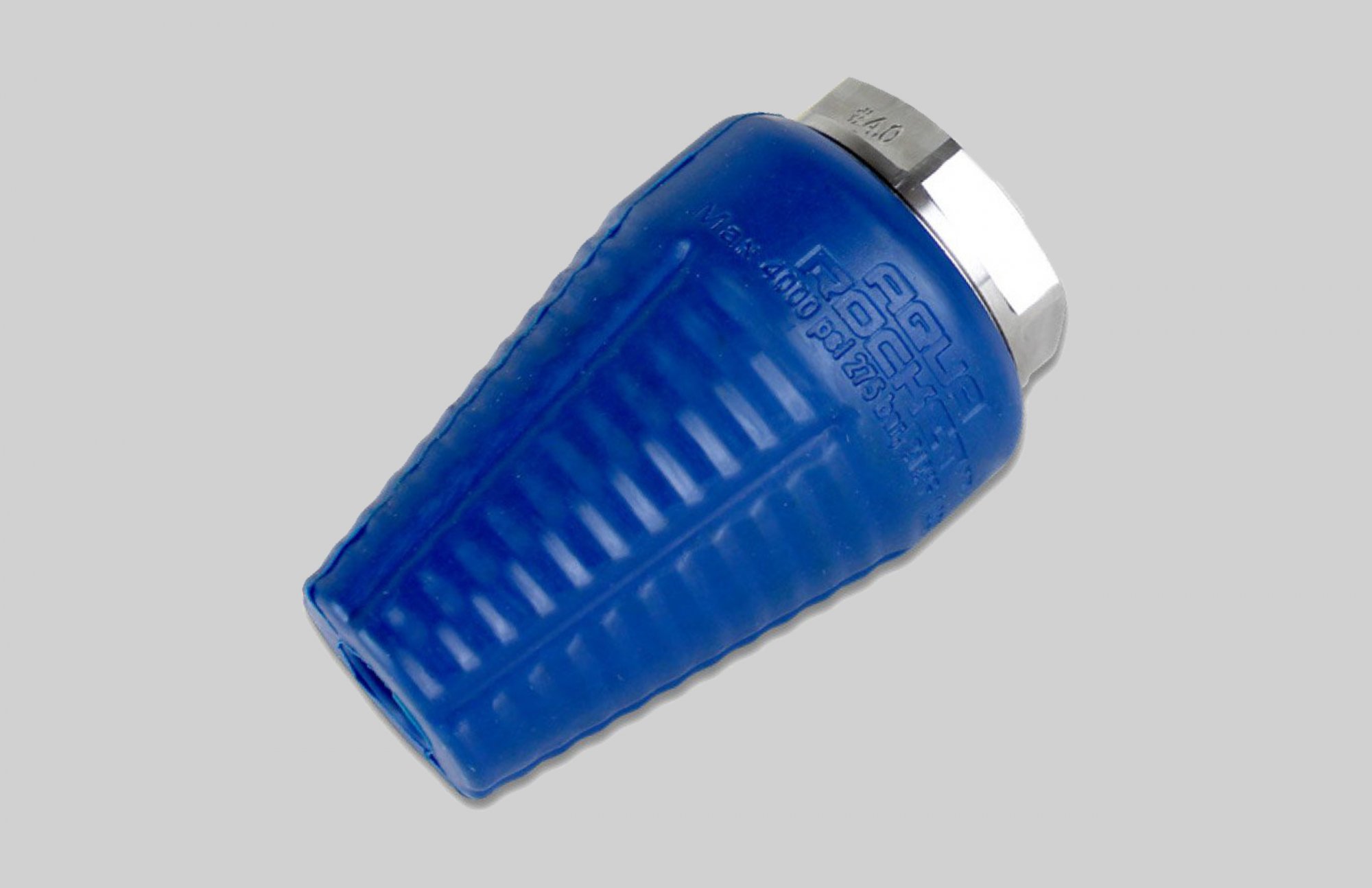

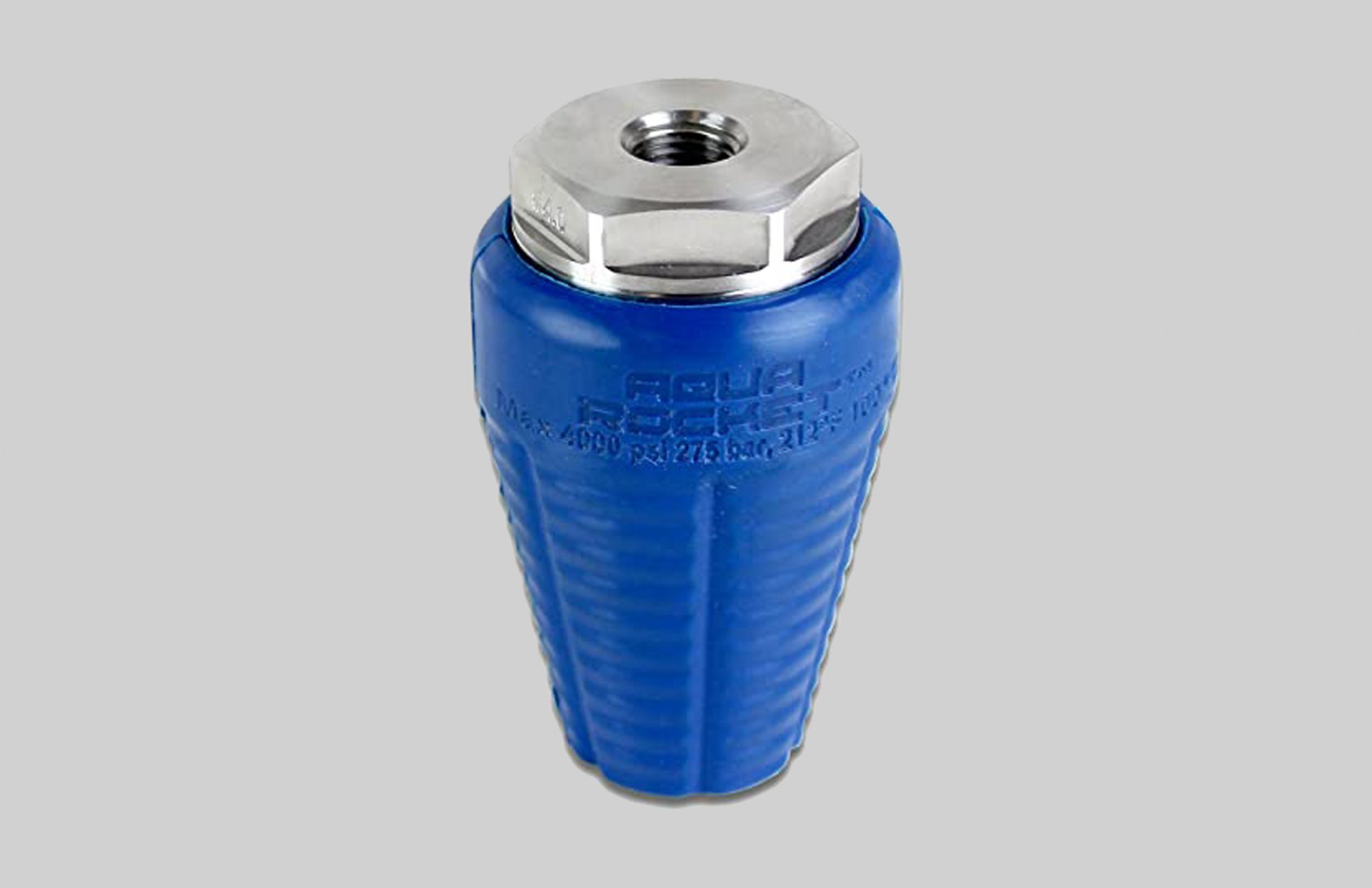

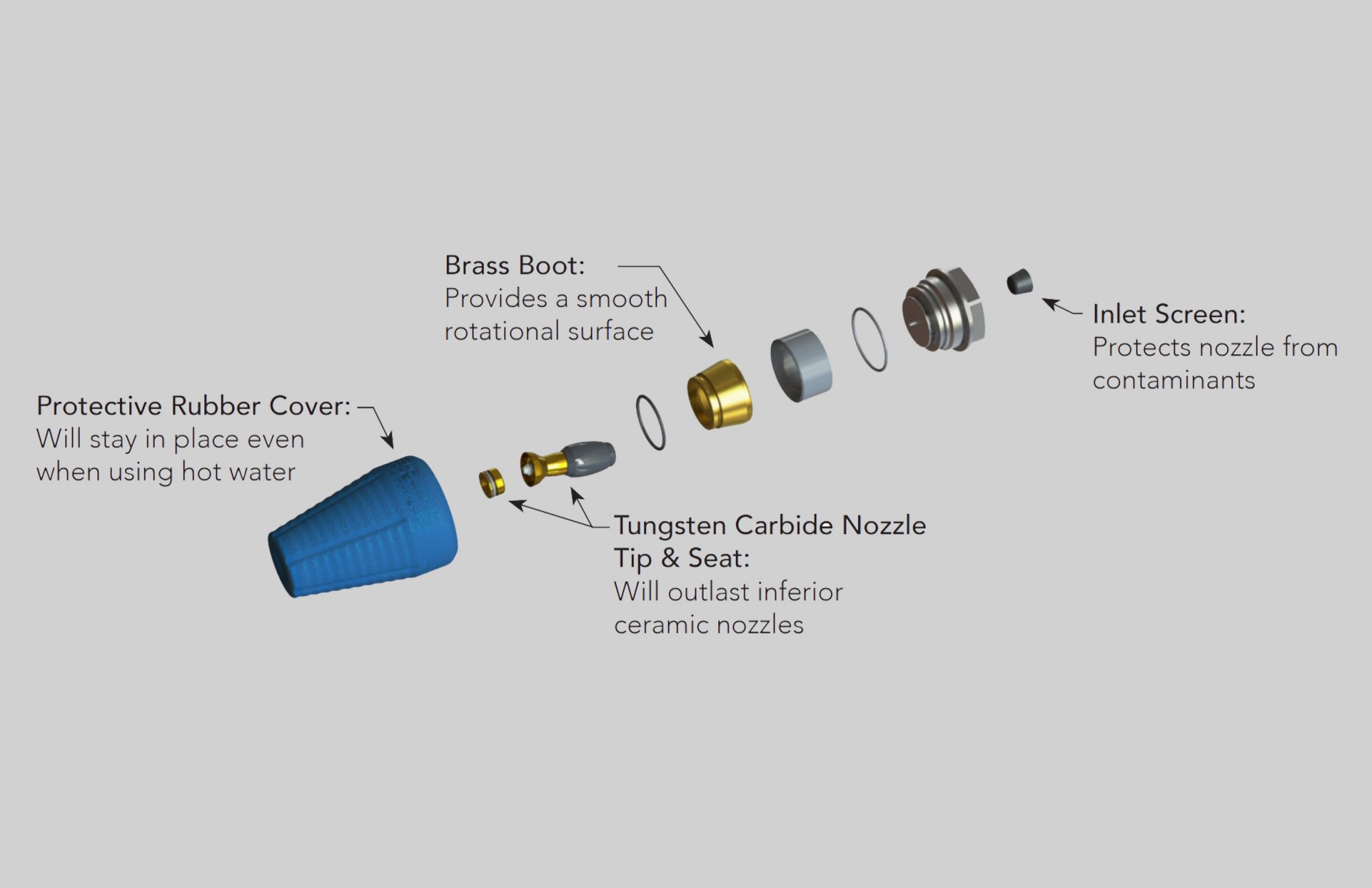

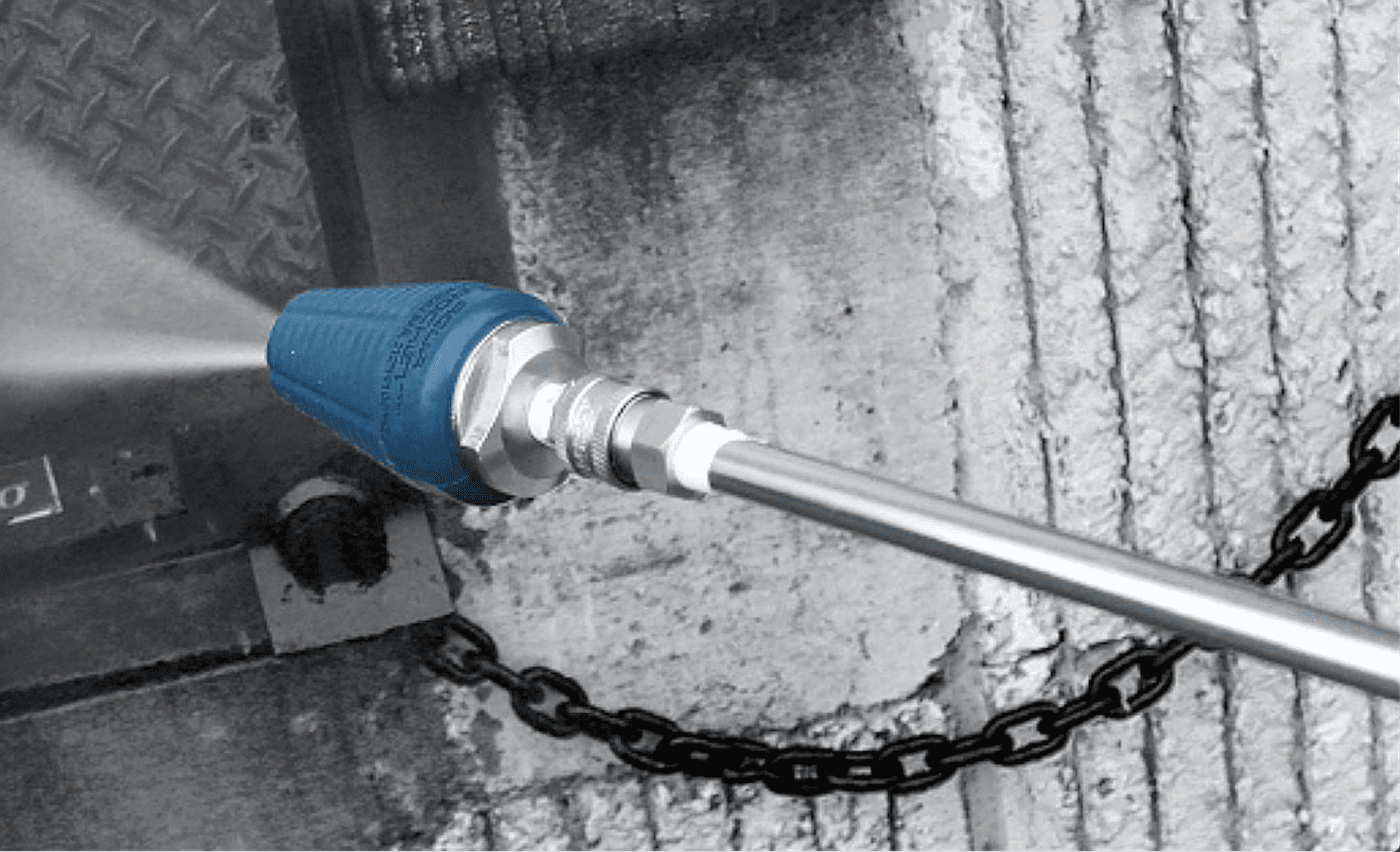

AQUA-ROCKET NOZZLE HYDRAFLEX Existing customers can log in to their account for additional savings Call for price Categories: Fittings, High Pressure Nozzles, Hose Fittings, Nozzles & Accessories, Nozzles & Accessories, Vacuum Truck Equipment Description Specification Additional information Description DURABLE & LONG LASTING – These heavy-duty nozzles are constructed with stainless steel housings and tungsten carbide nozzle tips and seats to withstand harsh environments and provide longer life than ceramic nozzles. Nozzles include a high temperature, drop-resistant rubber cover. Repair kits are also available for extended life and lower overall operating costs. COMPLETE POWER SOLUTION – The Aqua-Rocket blasts a concentrated, high-impact 0° water jet at 1500 – 4000 PSI, while rotating at an optimal speed to form a 22° cone-shaped spray pattern. SUPERIOR CLEANING PERFORMANCE – The Aqua-Rocket’s optimized stream quality results in greater impingement, allowing you to easily attack even the toughest dirt and grime. In lab tests, on average, the Aqua-Rocket applied 95.18% greater impingement force (lbf) than competitor nozzles. GREATER EFFICIENCY– Complete jobs faster while using less labor, less water, and less fuel. Also available in a pack of 20 – Ask us for more details Specifications Nozzle Size Nozzle Part Number Repair Kit Part Number FLOW RATE CHART (GPM) @ 1500 PSI @ 2000 PSI @ 2500 PSI @ 3000 PSI @ 3500 PSI @ 4000 PSI 3.0 1002402-030 1002616-030 1.8 GPM 2.1 GPM 2.4 GPM 2.6 GPM 2.8 GPM 3.0 GPM 3.5 1002402-035 1002616-035 2.1 GPM 2.5 GPM 2.8 GPM 3.0 GPM 3.3 GPM 3.5 GPM 4.0 1002402-040 1002616-040 2.4 GPM 2.8 GPM 3.2 GPM 3.5 GPM 3.7 GPM 4.0 GPM 4.5 1002402-045 1002616-045 2.8 GPM 3.2 GPM 3.6 GPM 3.9 GPM 4.2 GPM 4.5 GPM 5.0 1002402-050 1002616-050 3.1 GPM 3.5 GPM 4.0 GPM 4.3 GPM 4.7 GPM 5.0 GPM 5.5 1002402-055 1002616-055 3.4 GPM 3.9 GPM 4.3 GPM 4.8 GPM 5.1 GPM 5.5 GPM 6.0 1002402-060 1002616-060 3.7 GPM 4.2 GPM 4.7 GPM 5.2 GPM 5.6 GPM 6.0 GPM 8.0 1002402-080 1002616-080 4.9 GPM 5.7 GPM 6.3 GPM 6.9 GPM 7.5 GPM 8.0 GPM 10.0 1002402-100 1002616-100 6.1 GPM 7.1 GPM 7.9 GPM 8.7 GPM 9.4 GPM 10.0 GPM Also available in a pack of 20 - Ask us for more details Specifications Minimum Inlet Pressure 1,500 PSI (100 bar) Maximum Inlet Pressure 4,000 PSI (275 bar) Maximum Water Temp 212°F (100°C) Housing Material Stainless Steel Cover Material Rubber Nozzle Tip Material Tungsten Carbide Inlet Connection Thread 1/4" FNPT Additional information Orifice Size #3.0, #3.5, #4.0, #4.5, #5.0, #5.5, #6.0, #8.0, #10.0 Related products Dust Plugs – Domestic Industrial Quick Disconnect Steel Air Couplings – Female Disconnect X Female NPT “Air King” Universal Couplings – Male NPT Ends Reducing Couplers x Adapters – Domestic
