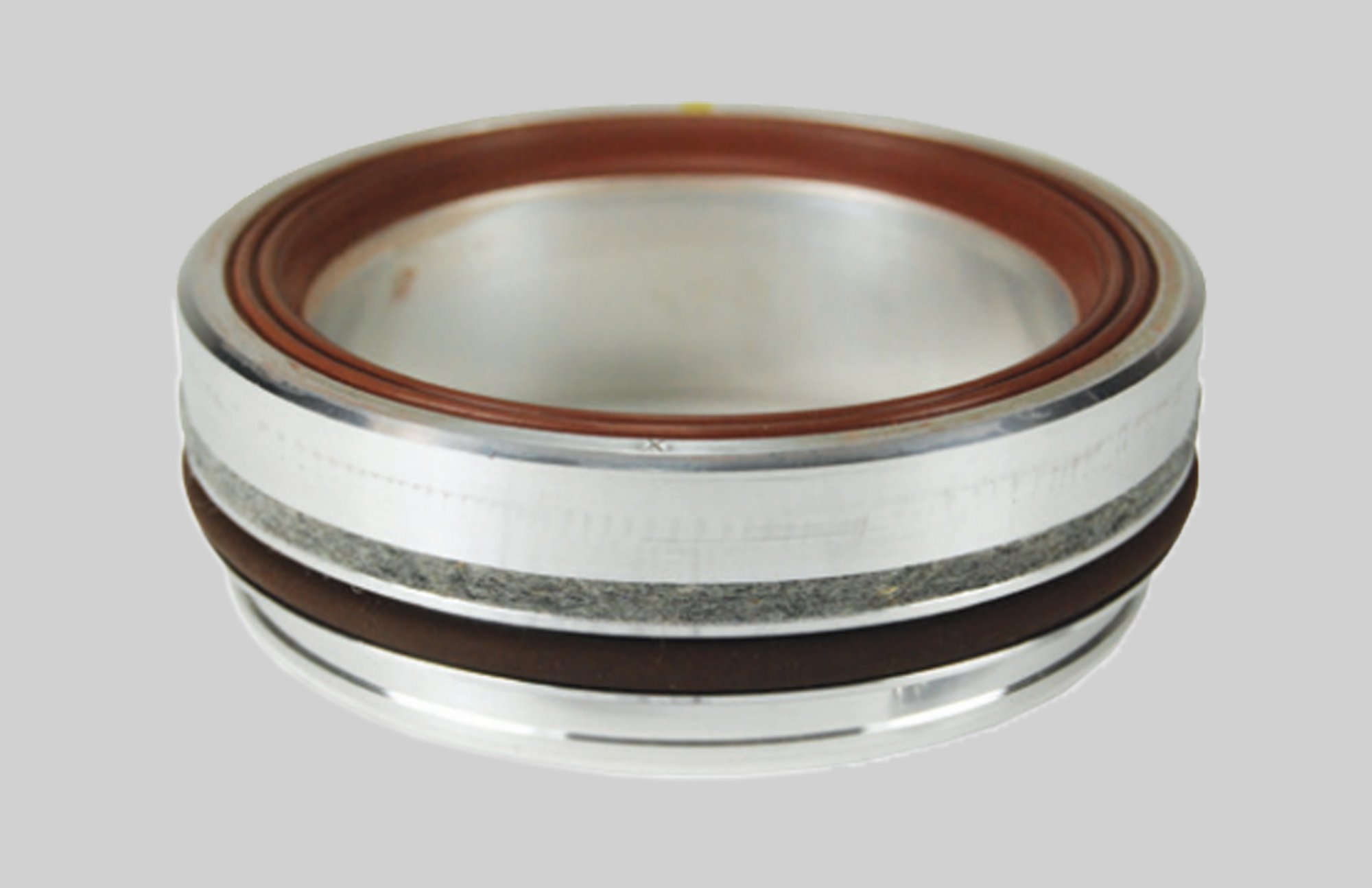

API FITTINGS – 5300/5400 SERIES

Call for price

Description

  • Bonded nose seal offers long life and cannot be washed out

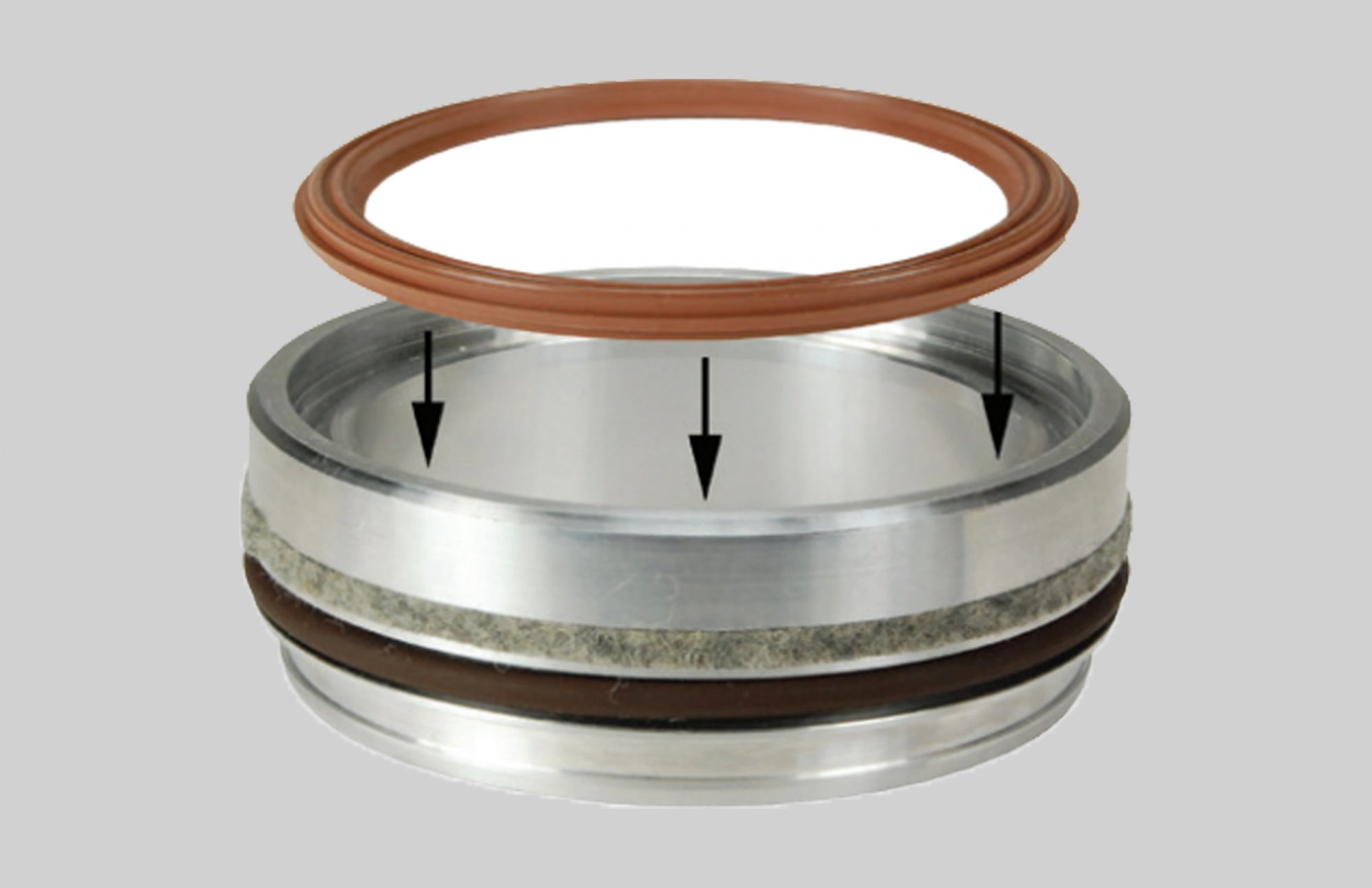

  • Replaceable nose seal – replaceable without removal from the loading arm

Specifications

Size (in.)

Seal Material

Bonded Nose Seal Part #

Maximum Working Pressure

Replaceable Nose Seal Part #

Maximum Working Pressure

4" BUNA 5300 150 5400 75
FKM-B 5300B 150 5400B 75
FKM-GFLT 5300G 100 5400G 75
FKM-B 5300BC (1) 150 - -

(1) Designed for high sulfur crude oil service

Repair Kits:

Part #

Description

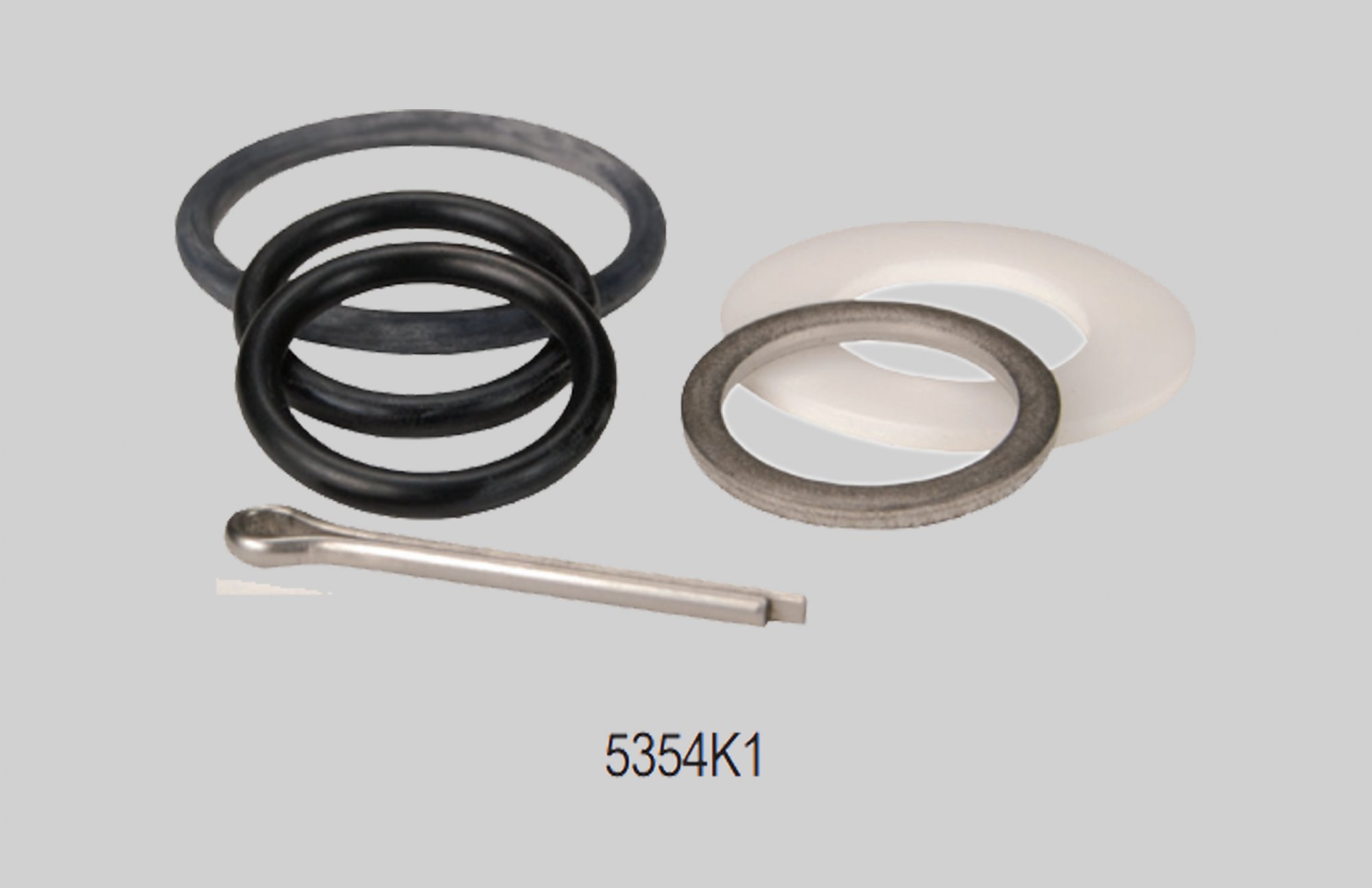

5354K1 Buna shaft seal kit (for 5300 and 5400)
5354K3 FKM-B shaft seal kit (for 5300B and 5400B)
5354K7 Bonded buna nose seal (for 5300)

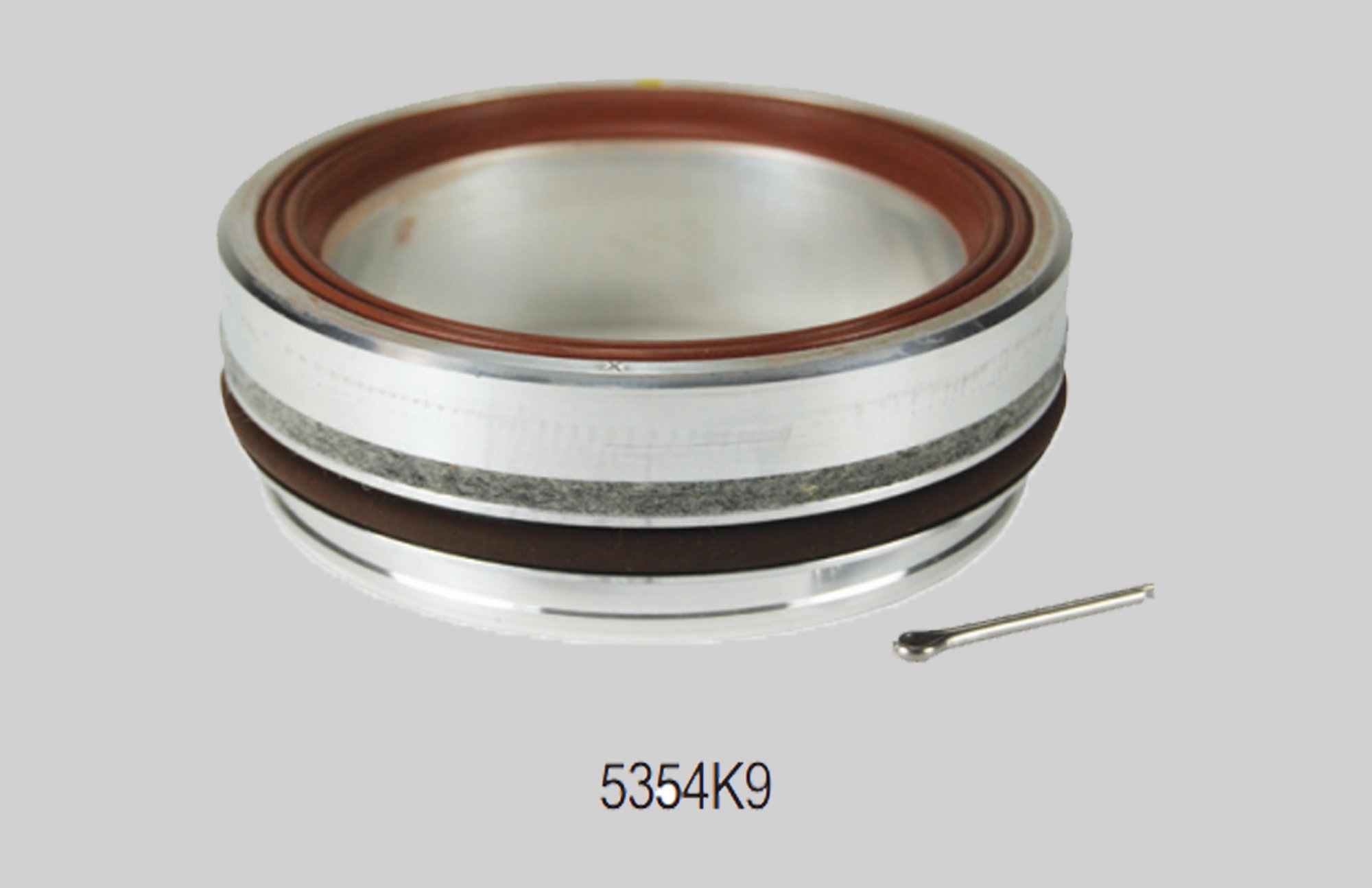

5354K9 Bonded FKM-B nose seal (for 5300B)

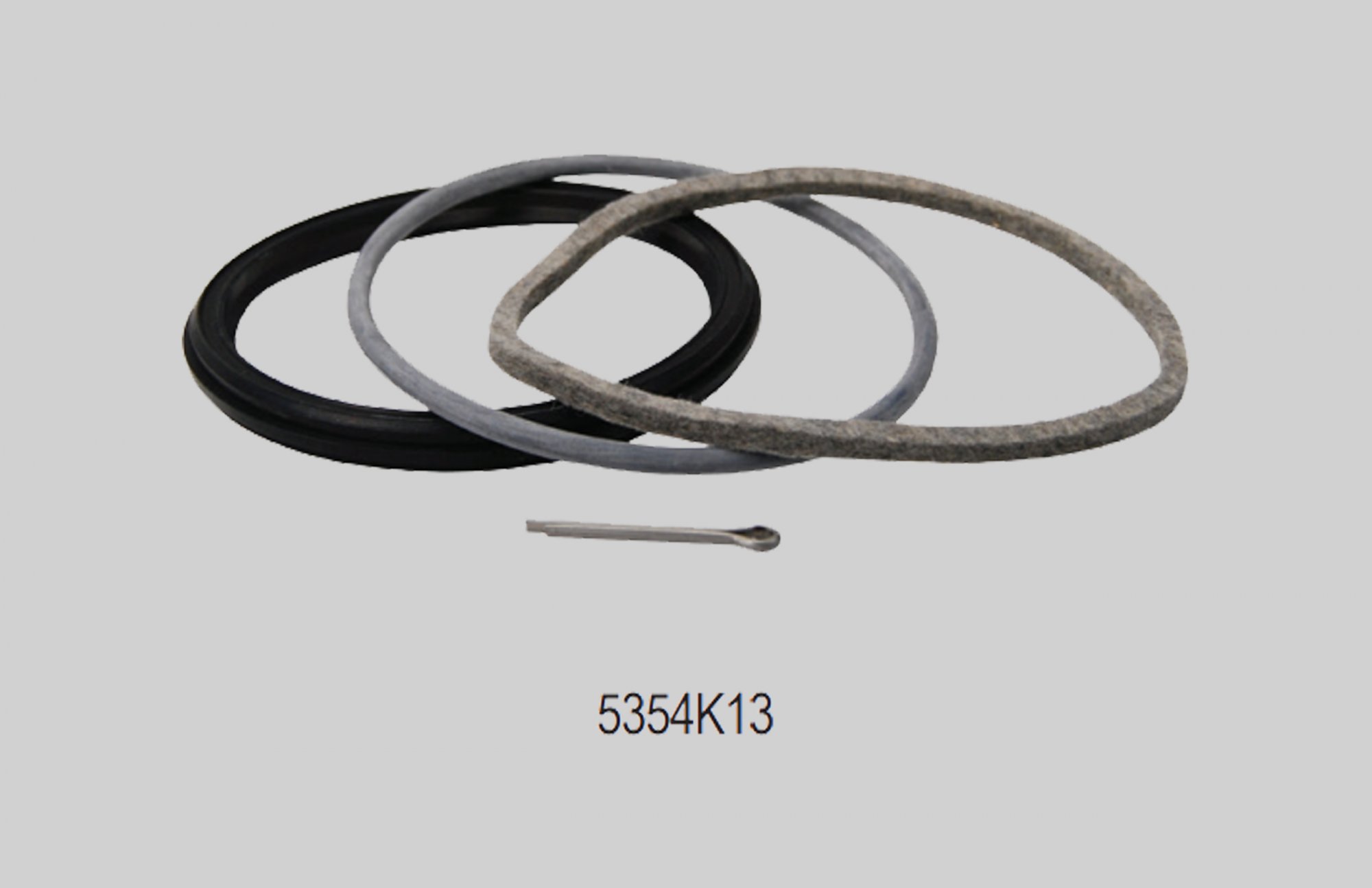

5354K13 Buna replaceable nose seal kit (for 5400)
5354K15 FKM-B replaceable nose seal kit (5400B)
