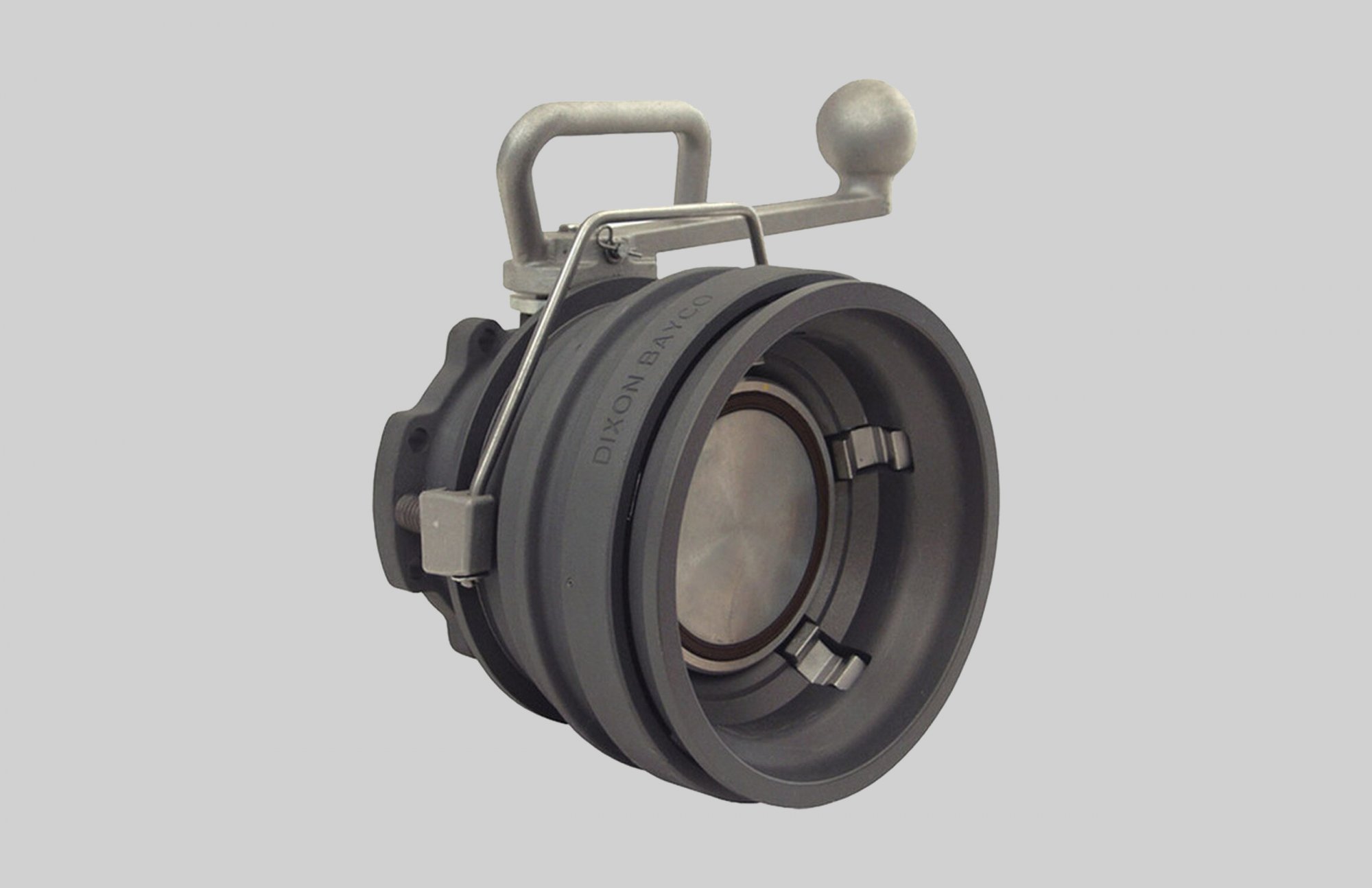

5400B SERIES API COUPLER

Description

Application:

• When combined with API adapters, these couplers are suitable for rail car and tank truck loading or unloading

Materials:

• Body: hard coated anodized 356T6 aluminum
• Shroud: hard coated anodized 356T6 aluminum with stainless steel insert
• Link, shaft, pin and crank: hardened 17-4PH stainless steel
• Cam: CF8M stainless steel
• Poppet and bearing: Bayloy
• Seals: Buna, FKM-B, FKM-GFLT

Features:

• Locking 5 cam design provides easy alignment and tight connection
• Modular design allows various face seal combinations to be compatible with different alternative fuels, performance levels and applications
• Shaft seals can be changed without removing coupler from loading arm
• Fully interlocked collar cannot be opened when connected and cannot be disconnected when opened
• Choice of a bonded nose seal, or a replaceable nose seal which allows quick seal replacement
• 4″ TTMA inlet mounting flange connection
• Maximum flow rate: 600 GPM
• Ball-end handle for easy, comfortable operation
• No special tools needed for maintenance
• Chemical compatibility (FKM-B seals):
– gasoline
– diesel
– jet fuel
– avgas
– 100% ethanol
– 100% methanol
– 100% biodiesel
– any blend of the above fluids
– crude oil
• Chemical compatibility (Buna seals):
– gasoline
– diesel
– avgas
– 100% ethanol
– 100% methanol
– B2 to B20 biodiesel blends

Specifications:

• Operating temperature:
FKM-B: -10°F to 400°F (-23°C to 204°C), FKM-GFLT: -20°F to 400°F (-28°C to 204°C),
Buna seals: -20°F to 250°F (-28°C to 121°C)
• Pressure drop: 3 to 4 PSI

Standard:

• Fully compliant with API RP1004:2003 specifications
5300 Series
EXCLUSIVE
5 YEAR
MECHANICAL
WARRANTY *
* Normal wear and tear items (including seals) not covered
