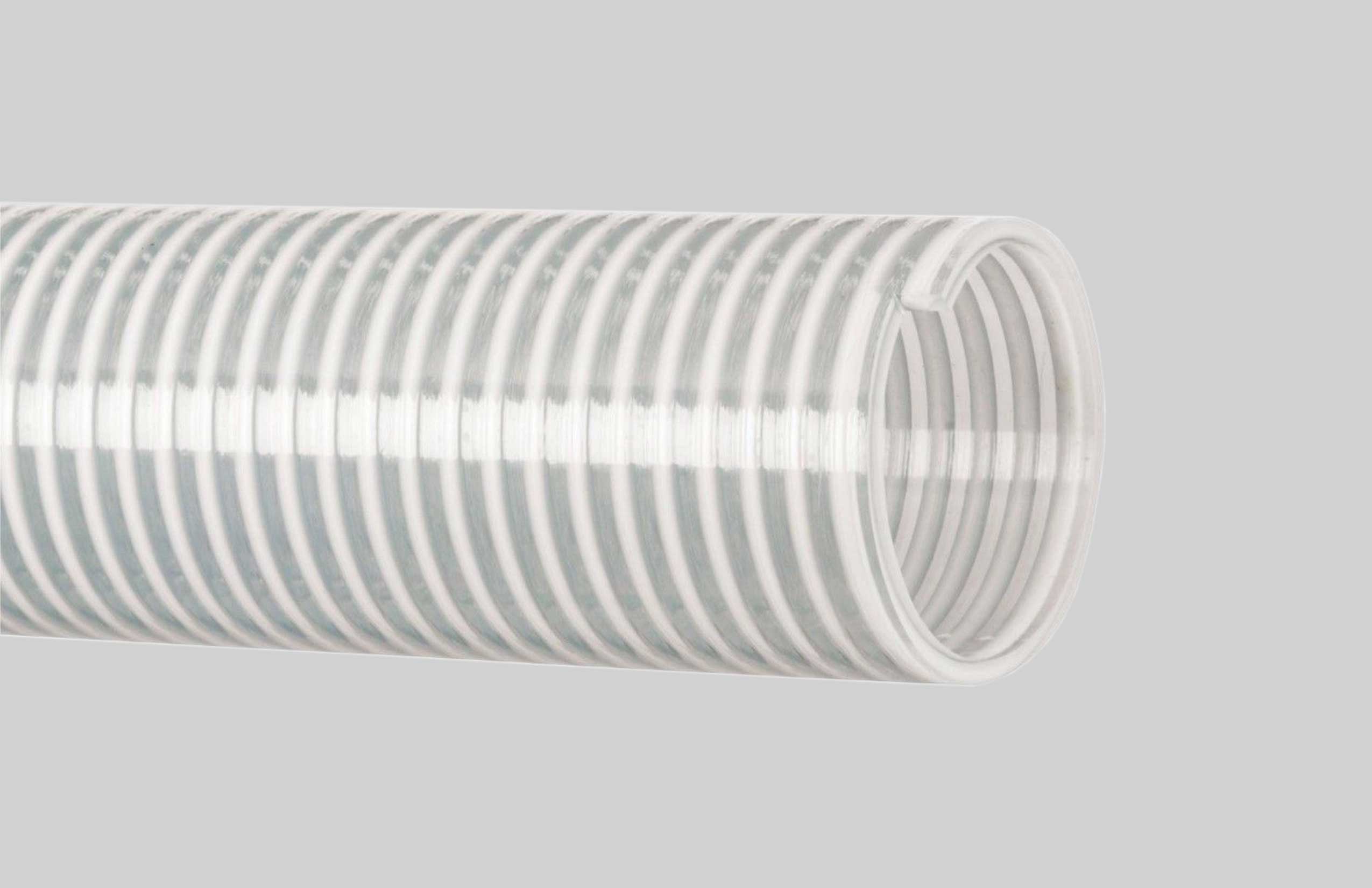

110CL / 110GR – Heavy Duty Water Suction and Discharge Hose110CL / 110GR – Heavy Duty Water Suction and Discharge Hose

110CL / 110GR – HEAVY DUTY WATER SUCTION AND DISCHARGE HOSE

Call for price
Categories: , ,

Description

Temperature Range: -13°F to 140°F

Applications: Heavy-duty water suction hose

Construction: Flexible PVC, rigid PVC helix, smooth bore, smooth O.D.

Specifications

Part #

Inside Diameter (I.D.)

Outside Diameter (O.D.)

Pitch (In)

Minimum Bend Radius (72°F, Inches)

Working Pressure (72°F, PSI)

Vacuum Rating (72°F, In Hg)

Weight (Lb/Ft)

Standard Length (Ft)
110CL075 / 110GR075 3/4" 0.95 0.22 1.9 86 29.8 0.16 100'
110CL100 / 110GR100 1" 1.25 0.22 1.9 86 29.8 0.26 100'
110CL125 / 110GR125 1-1/4" 1.52 0.26 2.7 79 29.8 0.37 100'
110CL150 / 110GR150 1-1/2" 1.81 0.30 2.8 72 29.8 0.44 100'
110CL200 / 110GR200 2" 2.38 0.33 3.9 72 29.8 0.74 100'
110CL250 / 110GR250 2-1/2" 2.92 0.37 5.0 72 29.8 1.01 100'
110CL300 / 110GR300 3" 3.41 0.37 7.0 62 29.8 1.21 100'
110CL400 / 110GR400 4" 4.50 0.43 9.1 55 29.8 2.01 100'
110CL500 / 110GR500 5" 5.55 0.45 14.0 33 28.0 2.45 100'
110CL600 / 110GR600 6" 6.67 0.53 15.0 33 28.0 3.37 50, 100'
110CL800 / 110GR800 8" 8.83 0.70 20.0 28 28.0 5.80 25'
