1″ Life Guard Liquid Propane Safety Kit – Transfer Hose

Construction

  • Conductive heavy wall Teflon PTFE liner
  • Self cleaning open pitch helical convolutions
  • Seamless vacuum formed liner
  • Hastelloy C276 braid
  • Monel NPT Fittings
  • Flange and CGA 820 fitting options

Benefits

  • Meets Chlorine Institute recommendations
  • 5:1 safety factor for Burst Pressure
  • Extreme inner and outer corrosion protection
  • Very kink resistant
  • Light weight abrasion resistant armor guard

Applications

Specifically designed for manufacturing, transporting and packaging of chlorine and bromine.

Request Quote
Email for Quote
Call for Quote
Categories , , , Tags , , , ,

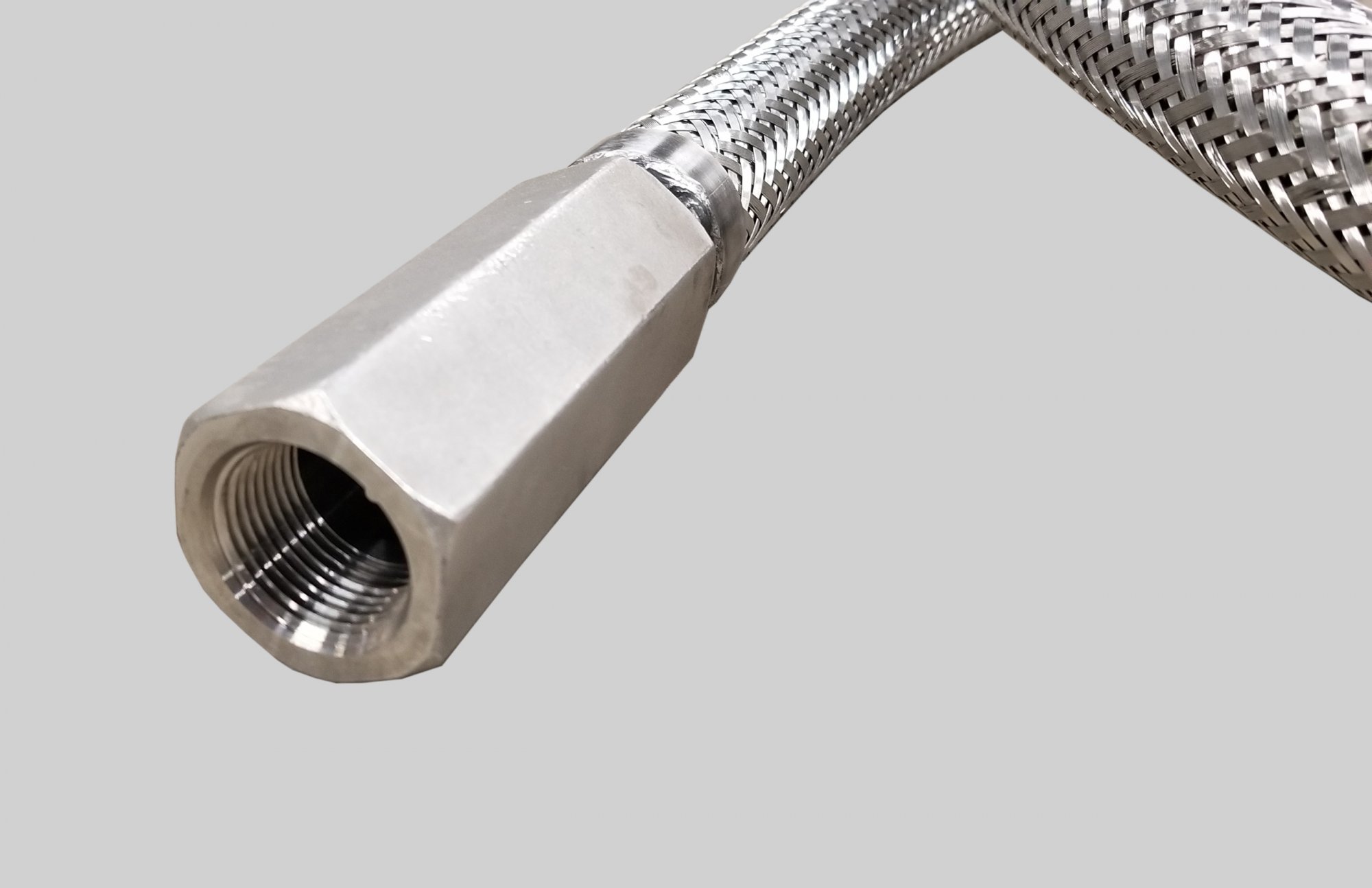

1" Life Guard Liquid Propane Safety Kit - Transfer Hose
1" Life Guard Liquid Propane Safety Kit - Transfer Hose - Image 2

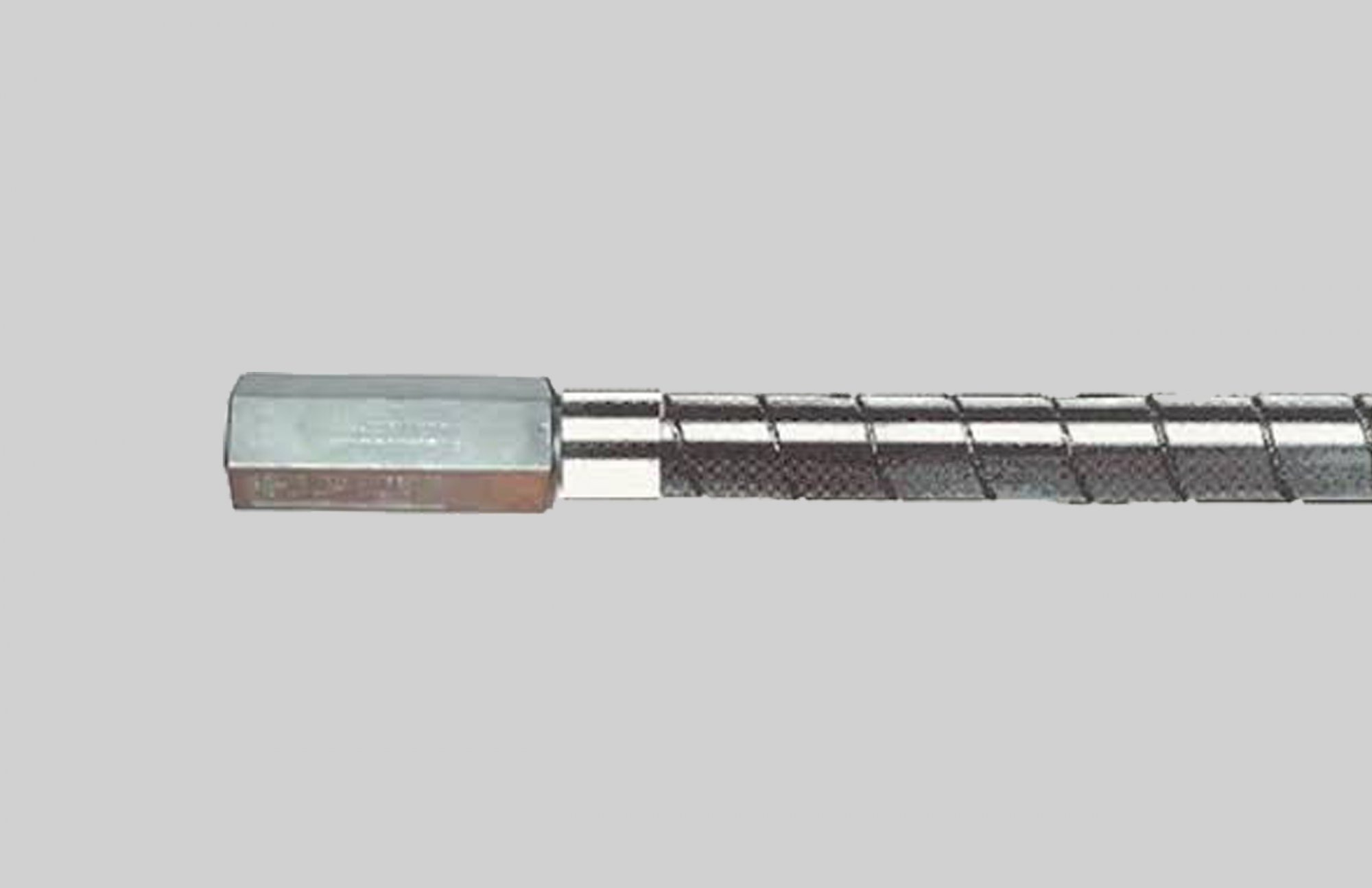

1" Life Guard Liquid Propane Safety Kit - Transfer Hose - Image 3

Description

Construction

  • Conductive heavy wall Teflon PTFE liner
  • Self cleaning open pitch helical convolutions
  • Seamless vacuum formed liner
  • Hastelloy C276 braid
  • Monel NPT Fittings
  • Flange and CGA 820 fitting options

Benefits

  • Meets Chlorine Institute recommendations
  • 5:1 safety factor for Burst Pressure
  • Extreme inner and outer corrosion protection
  • Very kink resistant
  • Light weight abrasion resistant armor guard

Applications

Specifically designed for manufacturing, transporting and packaging of chlorine and bromine.

Specifications

Nominal Size Hose ID Hose OD Bend Radius Working Pressure @ 70°F Burst Pressure @ 70°F
1/2" (15 DN) 0.470 (11.9mm) 0.748" (19.0mm) 2" (50.8mm) 500 PSI (34.5 Bar) 2500 PSI (172.4 (Bar)
1" (25 DN) 0.970 (24.6mm) 1.354" (34.4mm) 4" (101.6mm) 500 PSI (34.5 Bar) 2500 PSI (172.4 Bar)
1-1/2" (40 DN) 1.540 (39.1mm) 2.034 (51.7mm) 6" (152.4mm) 375 PSI (25.9 Bar) 1875 PSI (129.3 Bar)



Part # GPS LG x LG Safety Kit 1 Inch Complete
