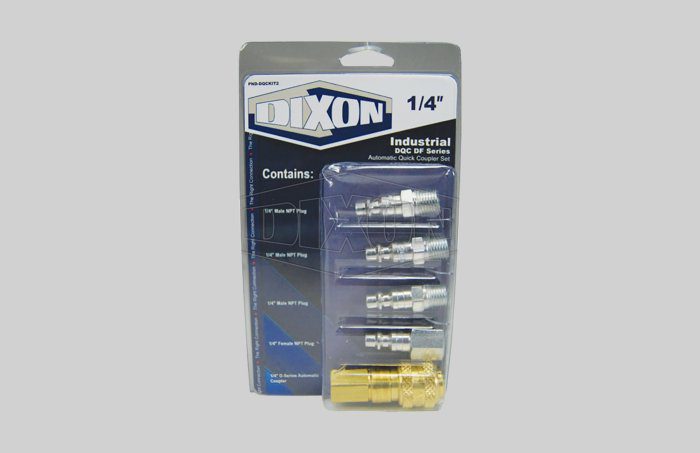

1/4″ INDUSTRIAL DQC DF SERIES AUTOMATIC QUICK COUPLER SET

DIXON

Call for price

Description

Specifications

  • Coupler- Rated pressure for connected Brass Coupler & Brass Plug: 300 PSI (20 bar) Maximum Working and 16,000 PSI (1,100 bar) Burst
  • Coupler- Rated pressure for connected Brass Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 16,000 PSI (1,100 bar) Burst
  • Female Plug- Rated pressure when connected with Brass F-Series Manual Couplers: 500 PSI (35 bar) Maximum Working and 9,000 PSI (620 bar) Burst
  • Male Plug- Rated pressure when connected with Brass F-Series Manual Couplers: 500 PSI (35 bar) Maximum Working and 11,500 PSI (790 bar) Burst
  • Female/Male Plug- Rated pressure when connected with Brass D-Series Automatic Couplers: 500 PSI (35 bar) Maximum Working and 16,000 PSI (1,100 bar) Burst
  • Female/Male Plug- Rated pressure when connected with Steel F-Series Manual Couplers: 500 PSI (35 bar) Maximum Working and 6,500 PSI (448 bar) Burst

Construction

  • Machined components are manufactured using solid bar stock.
  • Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
  • Nitrile (Buna-N) seals are standard
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
  • Steel tubular valve

Specifications

Part Number PND-DQCKIT2
Description (Case Qty 6 Required)
Includes 2DF2-B, D2F2, D2M2 (3)
Material Coupler - Brass,
Plug - Steel
Thread NPTF
Thread Size 1/4"
Maximum OD Coupler - 0.99",
Female Plug - 0.79",
Male Plug - 0.65" (Coupler - 25.1mm,
Female Plug - 20.1mm,
Male Plug - 16.5mm)
Body Size 1/4"
Hex Coupler & Female Plug - 11/16",
Male Plug - 9/16"
Length Coupler - 2.38",
Female Plug - 1.66",
Male Plug - 1.69" (Coupler - 60.5mm,
Female Plug - 42.2mm,
Male Plug - 42.9mm)
Pressure Rating See Product Details
Temperature Range -40°F to +250°F (-40°C to +121°C)
Mandatory Pkg/Box Qty 6
Weight lb 0.5916
